KAIRDA F190 ° 90 ° Right Angle Probe Optional probe for NDT530 Coating Thickness Gauge

SE
Measurement range 0~1250μm, error range +/- 3%, resolution 0.1mm, test environment magnetic metal matrix, overlay organic materials and other nonmagnetic overlay (such as: paint, lacquer, enamel, enamel, plastic and anode treatment, etc.).
$467.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

KairDa F1 Probe (90 ° right angle)SPEC

KairDa F1 Probe (90 ° right angle)Details

KairDa F1 Probe (90 ° right angle)Packing list

SKU
NB004474
Measurement principle
magnetic induction
Measuring range
0 ~ 1250µm
margin of error
±3%
resolution
0.1mm
Minimum measurement surface
F7mm
Minimum radius of curvature
1.5mm
thinnest matrix
0.5mm
Test environment
Magnetic metal matrix
overlay
Non-magnetic coatings such as organic materials (eg: paints, lacquers, enamels, enamels, plastics and anode treatments, etc.)
F1
Probe (90 ° right angle)
Measurement range 0~1250μm, error range +/- 3%, resolution 0.1mm, test environment magnetic metal matrix, overlay organic materials and other nonmagnetic overlay (such as: paint, lacquer, enamel, enamel, plastic and anode treatment, etc.).
KAIRDA F190 ° 90 ° Right Angle Probe Optional probe for NDT530 Coating Thickness Gauge Picture

Introduction

KAIDA Coating Thickness Gauge NDT530 is a coating Thickness Gauge with a split structure design. It can be equipped with four different probes F1, N1, F10, and F1 90° to measure different coating thicknesses. Among them, F1, The F1 90° and F10 probes are used to measure the thickness of the non-magnetic coating on the magnetic metal substrate such as iron and steel, while the N1 uses the principle of eddy current to measure the thickness of the non-conductive coating on the non-magnetic metal substrate. One-point and two-point calibrations are available for all four probes.

Pictures

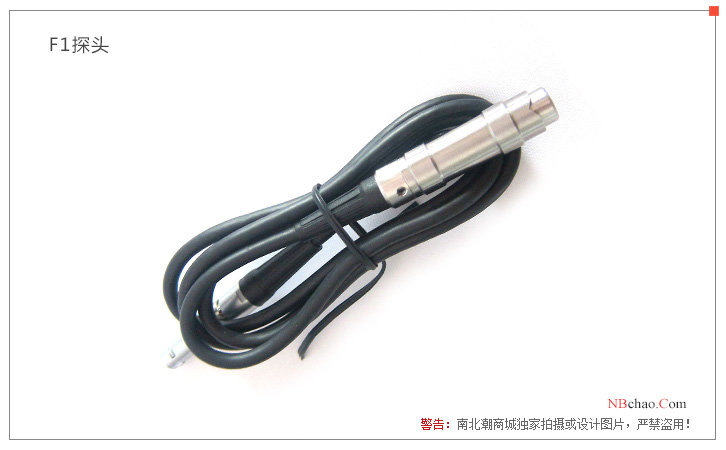

Aedas F1 probe display

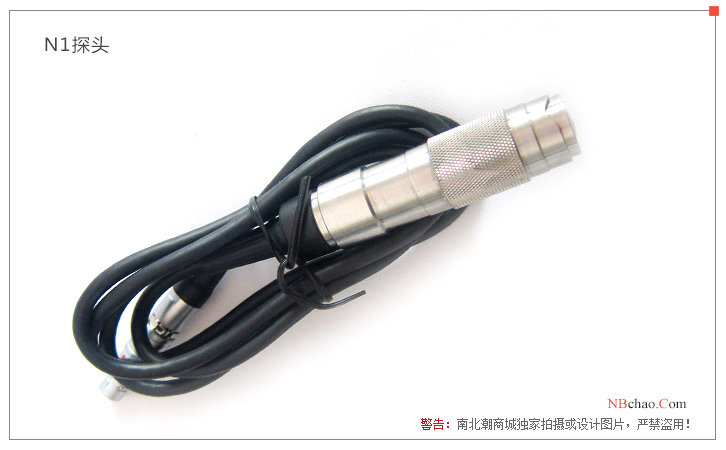

Aedas N1 probe display

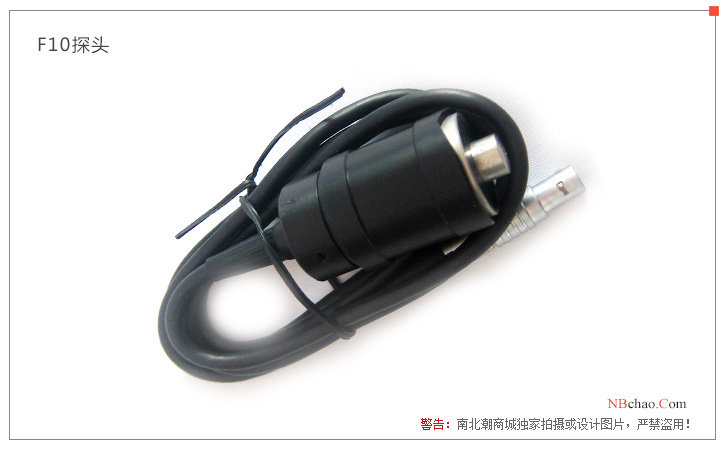

Aedas F10 Probe Display

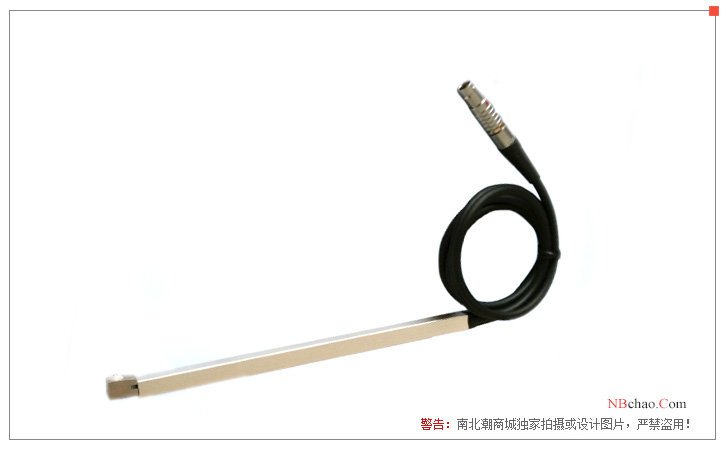

Aedas F190° Probe Display

Aedas F1/N1/F10 probe display

Aedas F190° probe display
