Factory NBC-9010 Temperature controlled battery short circuit testing machine Specifications
Search
Brand：Factory
Model：NBC-9010

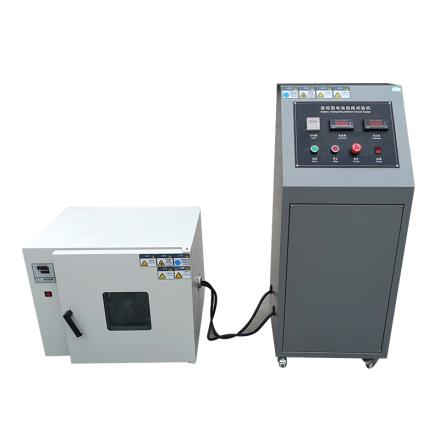

Name：Temperature controlled battery short circuit testing machine
Specifications
| Control mode | PLC Touch Screen Control system (with remote control) |
| Voltage | 0-100V |
| short circuit current | 0-1000A |
| Temperature control box temperature control | Room temperature~ 150 ℃ |
| Temperature transducer | -20℃~ 130℃ |
| Temperature control Accuracy | 0.1℃ |
| Temperature Uniformity | ±1℃ |
| Temperature control explosion-proof box measurement space | 450X450x350mm (can be customized) |
| Operating Voltage | AC 220V 50Hz~ 60Hz |
| Impact Voltage | AC 1kv/1.2-50μs（峰值）1min |
| DC response time | ≤5μs |
| Device internal resistance | 80 +/- 20mΩ (load current 400A) |
| action time | Suction time/release time < unk > 30ms |
| motion characteristics | Cold pull-in Voltage < 66% Us |
| Cold release Voltage | ≯30％Us，≮5％Us |
| Exhaust fan | Diameter 100mm exhaust pipe protrudes out at the rear |
| Complementary trend | There are two 50mm diameter trends on the left side of the box (can also be used for Voltage measurement, etc.) |
| window size | 300 * 300Mm, 20mm thickness tempered explosion-proof Glass |
| Weight | About 100Kg |
| Power | AC220V，50/60Hz |
Packing list
machine X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
