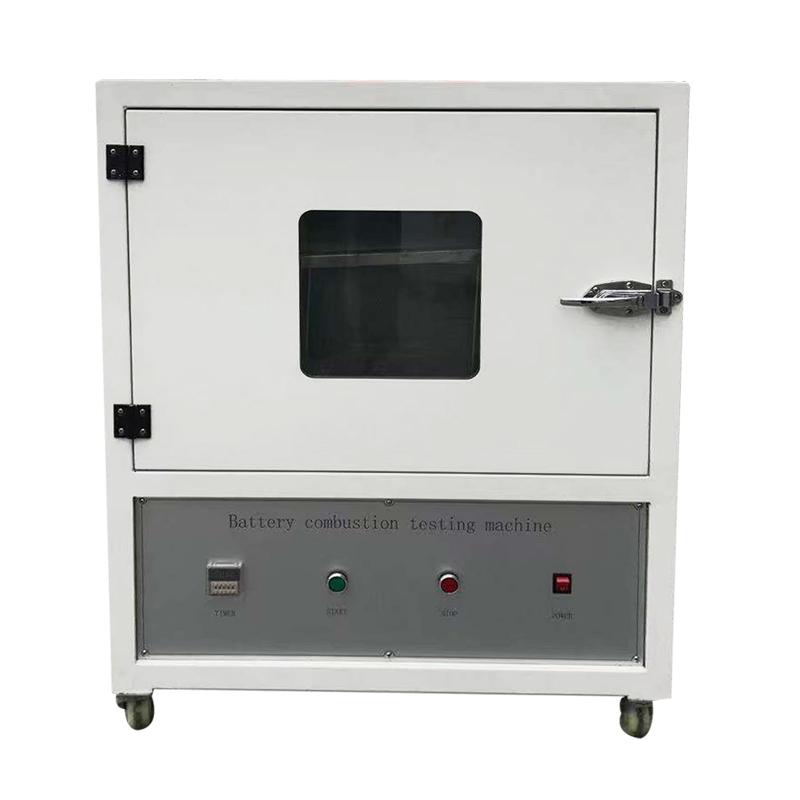

CHINA NBC-9017 battery combustion testing machine, testing battery flame resistance
SE
NBC-9017
Factory NBC-9017 Battery combustion testing machineSPEC
Factory NBC-9017 Battery combustion testing machineDetails
Factory NBC-9017 Battery combustion testing machinePacking list
- SKU
- NB044776
- Combustion engine
- Bunsen lamp, the inner diameter of the nozzle is 9.5mm, and the length is about 100mm.
- flame application time
- 0~999.9 seconds +/- 0.1 seconds
- Test round hole surface diameter
- 102mm
- automatic control
- Automatic ignition, automatic control of the test process
- Use gas
- Liquefied gas, or methane
- Test cover width
- 24 inches (610mm), octagon
- Test cover height
- 12″(305mm)
- component
- Including combustion device and support frame, test table, standard metal mesh cover, standard metal mesh screen
- Operating conditions requirements
- Room temperature within the range of 10 ℃ -40 ℃; Relative Humidity within 30% -80%
- other
- The machine needs to be installed and positioned on a horizontal platform with a certain strength
Introduction
A battery combustion Test Chamber is a device specifically designed to test and evaluate the response and safety of batteries in fire situations. This kind of Test Chamber is mainly used to simulate the performance of batteries under extreme high temperature conditions to ensure the safety of battery products. Evaluate the safety performance of batteries under extreme conditions by observing their reactions during combustion tests, such as fire, thermal expansion, rupture, or chemical leakage. Suitable for various types of batteries, including lithium-ion batteries, nickel-metal hydride batteries, etc., widely used in electronics, electric vehicles, aerospace and other industries.
Applications
The battery combustion testing machine is mainly used for battery flame resistance testing. This battery performance test is mainly used to test the reliability of battery safety performance when the battery encounters an open flame, and the battery's flame resistance.
Product principle
The test sample (battery) should be placed with the mesh screen fixed 38.1mm above the top of the burner. The mesh screen has 20 holes every 25.4mm and the steel Wire diameter is 0.43mm; ignite the burner and observe the battery combustion at the same time. until the battery explodes or the battery burns out; and the combustion process is timed.
control Panel
According to the standard
This instrument can meet the requirements of UL1642, SJ/T11170 and other test methods, as well as the needs of various test methods.
