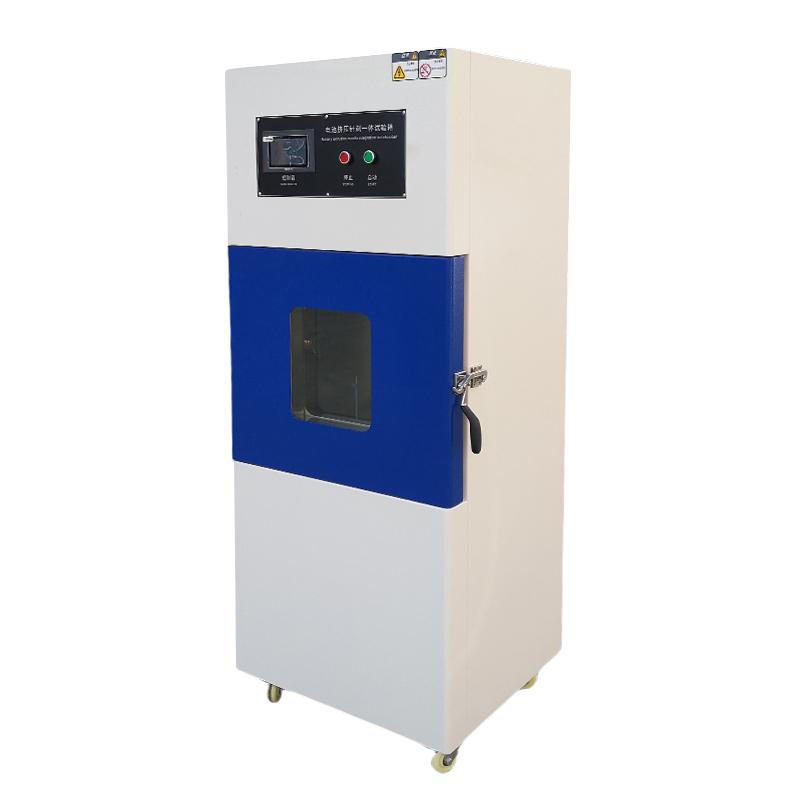

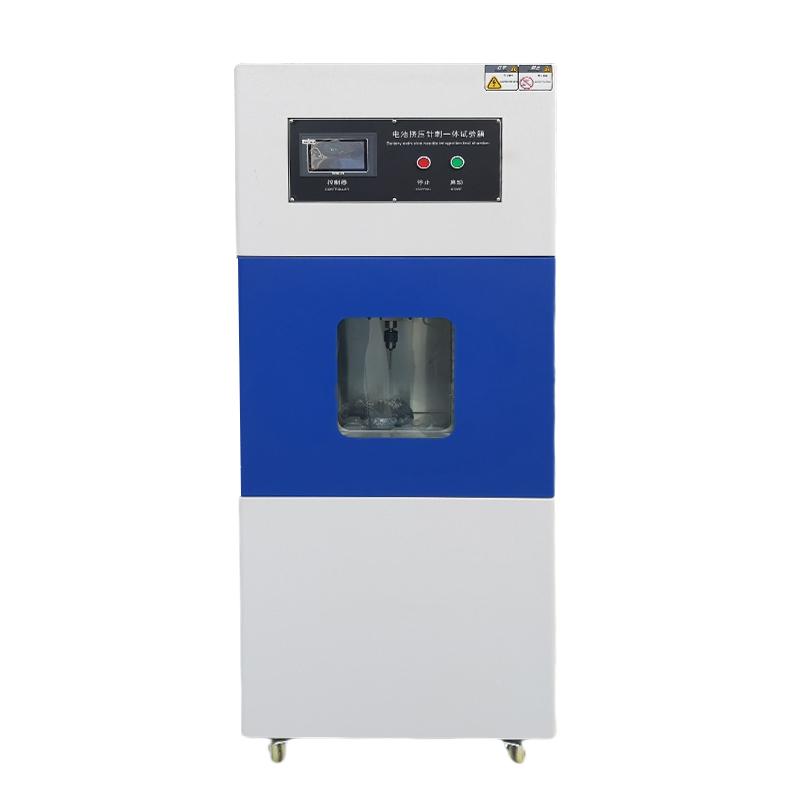

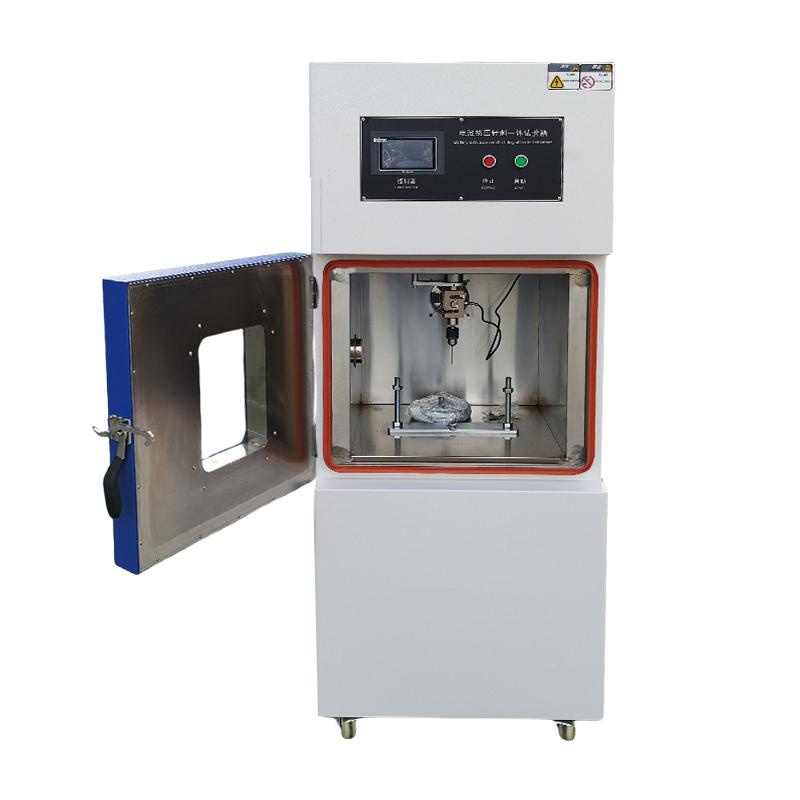

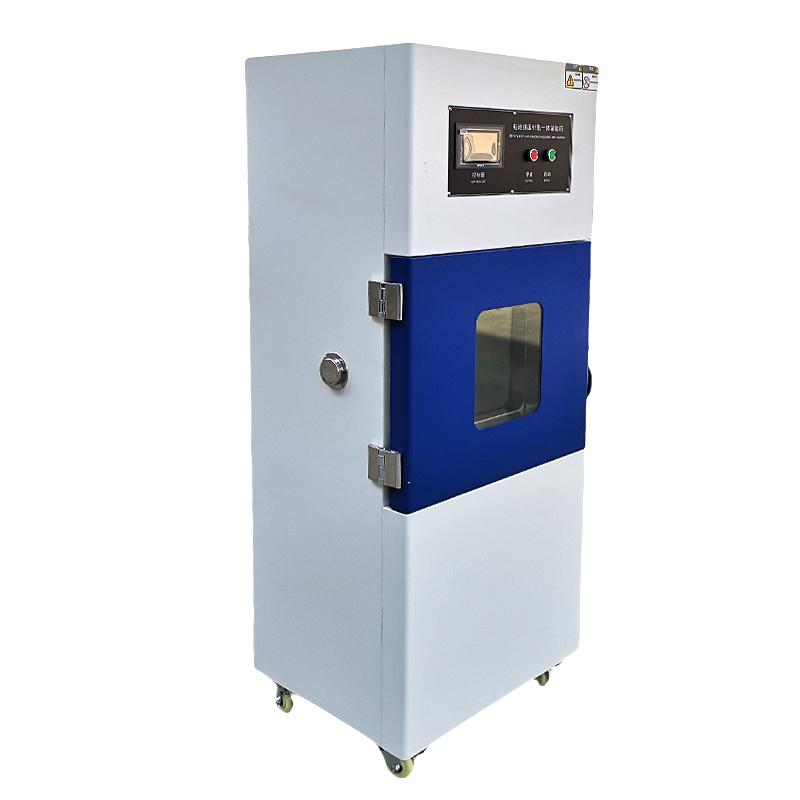

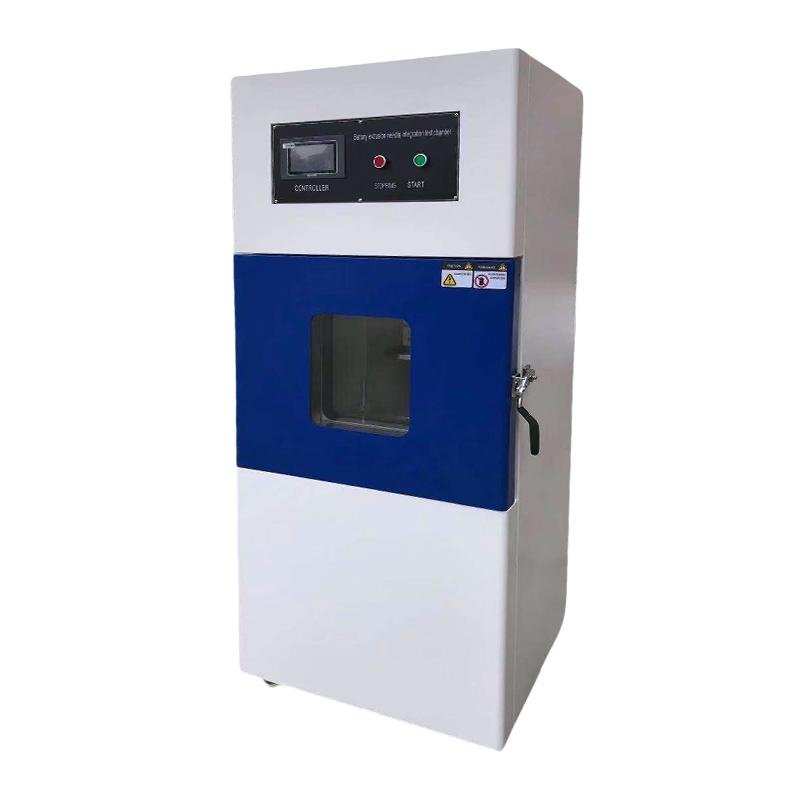

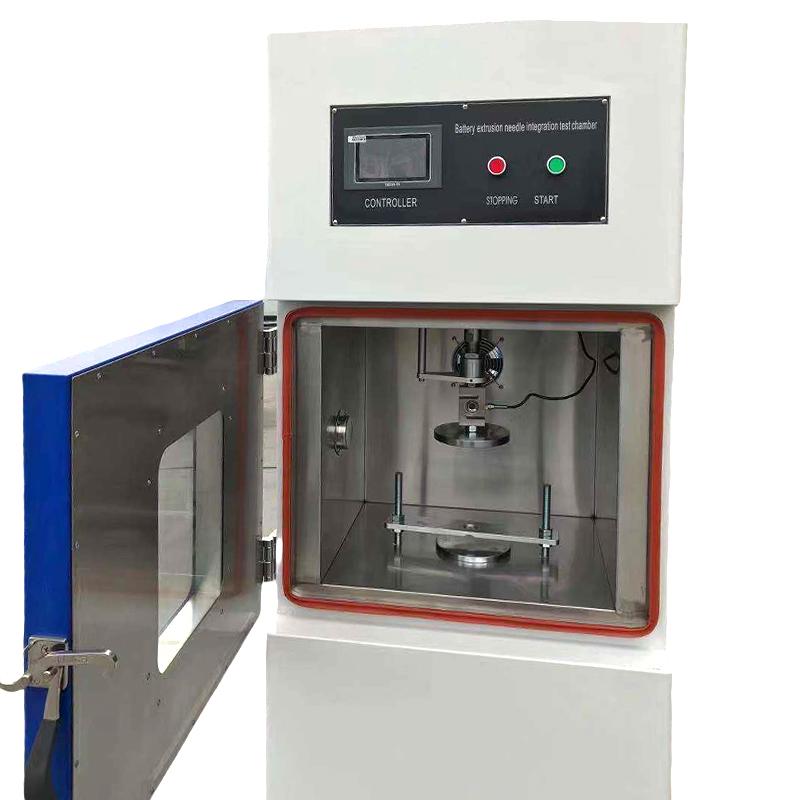

CHINA NBC-9013 battery acupuncture testing machine, lithium battery puncture test

NBC-9013

Battery needle test machine

It is used for battery acupuncture test, with a capacity of 200kg, a machine stroke of 300mm, a steel needle diameter of < unk > 2~ < unk > 8mm, and an inner box made of 304 stainless steel.

Introduction

The battery acupuncture testing machine is a testing equipment used to evaluate battery safety and is mainly used for battery acupuncture testing. This kind of testing is an important part of battery safety testing, especially for lithium-ion batteries. The battery acupuncture test is mainly used to simulate the physical damage of the battery under extreme conditions, such as puncture by a sharp instrument, to evaluate the safety performance of the battery when it suffers severe physical damage. Testing machines usually include a needle or sharp object that is used to pierce the battery at a certain speed and force. This puncture can simulate damage to the battery in an accident.

Applications

This machine is suitable for acupuncture testing of various types of batteries, simulating the situation in which external conductors penetrate the battery and damage the internal structure of the battery when processing household waste.

Product principle

The test should be carried out at an ambient temperature of 20℃±5℃. Place the battery flat on the fixture and use a non-corroding stainless steel needle with a diameter of ф2~ф8mm to pierce the battery at a speed of 10mm/s~40mm/s. The center of the surface.

According to the standard

This instrument can meet the requirements of GB/T2900.11-1988, GB18287-2013 and other test methods.

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
