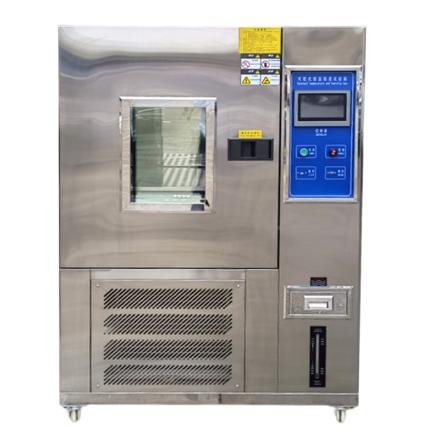

Specifications
| Temperature range | -40~+150℃ |
| Humidity range | 20% RH ~98% RH |
| control stability | Temperature: +/- 0.5-1 ℃; Humidity +/- 1-2% |
| distribution uniformity | Temperature +/- 1.5-2 ℃; Humidity +/- 1-3.0% |
| Heating rate | 3 ℃/min, non-linear no-load |
| Cooling rate | 1 ℃/min, non-linear no-load |
| temperature limit | Maximum temperature: + 150 ℃; Minimum temperature: -40 ℃ |
| Interior size | 600*500*750mm |
| Dimension | 1120*1050*1620mm |
| Weight | About 218KG |
| Inner box material | Mirror stainless steel plate (SUS #304) |
| Enclosure Material | Mirror stainless steel plate (SUS #304) |
| operating Voltage | 380V/50HZ |
| Permissible Voltage Variation | ±10% |
| Maximum Power | 12kw |
| frame structure | High-strength C-shaped steel is used as the main frame, and the static load on the top can reach 5000kg. |
| top opening | Laser cutting and opening can be carried out according to the test sample drawings provided by the customer |
| Insulation material | Using German Bayer polyurethane rigid foam + high density fiberglass |
| Heating system | Multistage heating pipe |
| Humidification system | Round split humidifier |
| condenser | Fin type multi-stage condenser with integral forced cooling fan |
| evaporator | Fin type multi-stage automatic load Capacity adjustment evaporator |
| refrigerant | R404A R23 |
| Freezing oil | American Ice Bear Frozen Oil |
| Drying Filter | Italian castor drying Filter |
| copper pipe | Using imported copper material |
| Air circulation system motor | High resistance air circulation motor |
| Air circulation system fan blade | Multi-wing fan blade |
| Shelf | 1 layer; single layer load 20KG |
| Test chamber door | Single door, double-decked door, left opening |
| handle | High Strength Deep Buckle Handle |
| hinge | High strength stainless steel |
| Sealing strip | High and low temperature resistant silicone sealing strip |
| defrost | Built-in hidden defrost line |
| test hole | 50Mm diameter test hole, located on the left side of the test chamber |
| data export | Equipped with USB data port |
| casters | High-load universal wheel * 4, located at the bottom of the instrument |
| Display | Imported 7-inch color touch screen display |
| language | Chinese and English display, can be switched arbitrarily. |
| operation control | Touch screen direct button type (touch screen operation control) |
| programmer | Temperature and Humidity Simultaneous Programmable Controller |
| Accuracy | Temperature +/- 0.1 ℃, Humidity +/- 1% R.H |
| resolution | Temperature +/- 0.1, Humidity +/- 0.1% R.H. |
| correction function | Automatic correction of wet and dry bulbs |
| Linear dispersion display | Humidity program setting value is displayed in graphic Linear dispersion, with real-time display program Linear dispersion execution function |
| Groups of programs available | Maximum 120 groups |
| Usable memory Capacity | A total of 1200 parts |
| Command, repeability | Each command can be up to 999 times |
| program function | With editing, clearing, inserting and other functions |
| SEGMENTS time setting | 0 ~ 99Hour59Min |
| Permissible environment | 0 ~ 30℃ |
| Specification Environment | 5 ~ 25℃ |
Packing list
machine X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/44781/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
