FRARIV H100 Natural Stacking Density Meter Powder Density Meter

SE
Density of stacking is measured by natural stacking method, which conforms to GB/T 16913-2008 standard, and the diameter of the outflow port is Ø 12.7mm, which is made of 304 stainless steel.
$226.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI

FRARIV H100 Natural Stacking Density MeterSPEC

FRARIV H100 Natural Stacking Density MeterDetails

FRARIV H100 Natural Stacking Density MeterPacking list

SKU
NB044826
Measurement principle
Natural stacking method
meet the standard
GB/T 16913-2008
material
304 stainless steel material
Funnel taper
60°±0.5°
Measuringflask material
304 stainless steel material
H100
Natural Stacking Density Meter
Density of stacking is measured by natural stacking method, which conforms to GB/T 16913-2008 standard, and the diameter of the outflow port is Ø 12.7mm, which is made of 304 stainless steel.

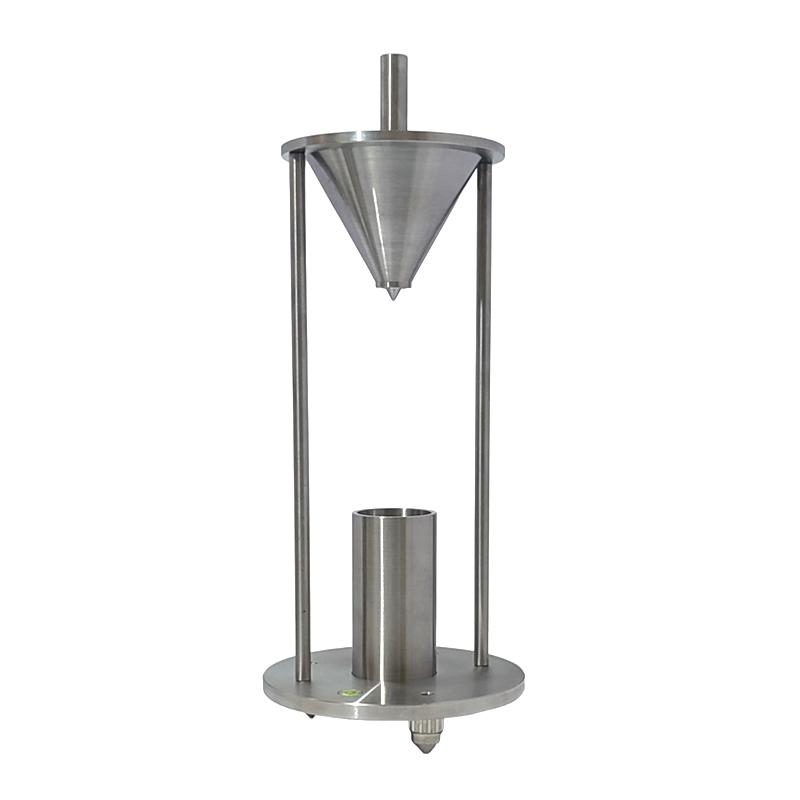

FRARIV H100 Natural Stacking Density Meter Powder Density Meter Picture

Application

H100 bulk density meter is designed and produced in accordance with the provisions of the national standard GB/T 16913-2008 of the People's Republic of CHINA. This device is suitable for measuring bulk density using the natural accumulation method.

principle

     The dust falls freely from the funnel mouth at a certain height and fills the measuring cylinder; the mass of the unit volume of dust in the measuring cylinder in the loose state is measured, that is, the dust accumulation density.

Instrument composition

funnel

The outlet diameter is Ø 12.7mm, made of stainless steel (304), and the funnel taper is 60°±0.5°.

plugging rod

Made of stainless steel (304), used to prevent dust from falling when it is loaded into the funnel.

Balance (optional)

The maximum weighing capacity is 1Kg and the accuracy is 0.02 g.

measuring cylinder

A stainless steel (304 material) graduated cylinder with a volume of 100mL and an inner diameter of Φ39mm.

scraper

Plastic material used to remove excess dust as it is loaded into the hopper.

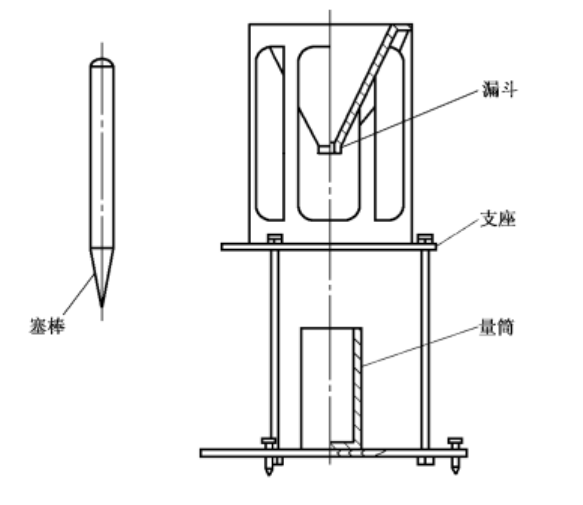

Product Structure

FRARIV H100 natural bulk density meter details picture 1


FAQ
QI want to measure the natural packing density of powder, what instrument should I choose?
A Recommend FRARIV H100 Natural Packing Density Meter. It adopts natural packing method, conforms to the national standard GB/T 16913-2008, can accurately measure the mass per unit volume of powder in natural state, simple operation and reliable results.
QWhere is this Density Meter mainly used?
A H100 is commonly used in powder quality control in the chemical, food and building materials industries. For example, measuring the density of flour, cement or powder can help optimize Encasement, storage and process flow, because it can simulate the actual accumulation state and provide practical density data.
QBalance selection needs to pay attention to what?
A It is recommended to choose a Balance with a maximum weight of 1kg and an accuracy of 0.02g. This can ensure accurate weighing during measurement and avoid errors. Especially for fine powders, high-precision Balance can improve the Reliability of the overall test.
