CHINA 10A-4 touch screen four-station Spin Coater

SE
A 4-station Spin Coater for 40mm diameter silicon wafers, each station can operate independently to meet the needs of different silicon diameters. Speed range of stations is wide, soft start can be adjusted, and the glue leveling process is automatically controlled. Touch screen display and control, 12 sets of process parameters can be pre-stored, each set of 5 segments, easy to operate.
$8621.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

HuiNuo 10A-4 Touch screen four-station glue leveling machineSPEC

HuiNuo 10A-4 Touch screen four-station glue leveling machineDetails

HuiNuo 10A-4 Touch screen four-station glue leveling machinePacking list

SKU
NB044854
loading diameter
5/10/20/30.... 100mm optional (2 as standard)
program control
1-5 paragraphs (edit pages), 12 groups;
homogenizing time
3000S, resolution 0.1S, Accuracy +/- 0.1%
Speed range
100~7000rpm
speed correction
Rotation speed can be automatically corrected by selecting Kx practice run through A/K, and then go back to Kx to use
Acceleration range
100-4000rpm/s
Power supply Voltage
AC200-230V, single phase, 200W
Dimension
990*740*1620mm
Purification function parameters
1000 cubic meters per hour
Air purification technology
HEPA efficient filtrate technology
purification rate
99.99
Primary Filter Specifications and Quantity
490*490*20
High Efficiency Filter Specifications and Quantity without Shelf
820*600*50
Speed Accuracy
±1%
10A-4
Touch screen four-station glue leveling machine
A 4-station Spin Coater for 40mm diameter silicon wafers, each station can operate independently to meet the needs of different silicon diameters. Speed range of stations is wide, soft start can be adjusted, and the glue leveling process is automatically controlled. Touch screen display and control, 12 sets of process parameters can be pre-stored, each set of 5 segments, easy to operate.

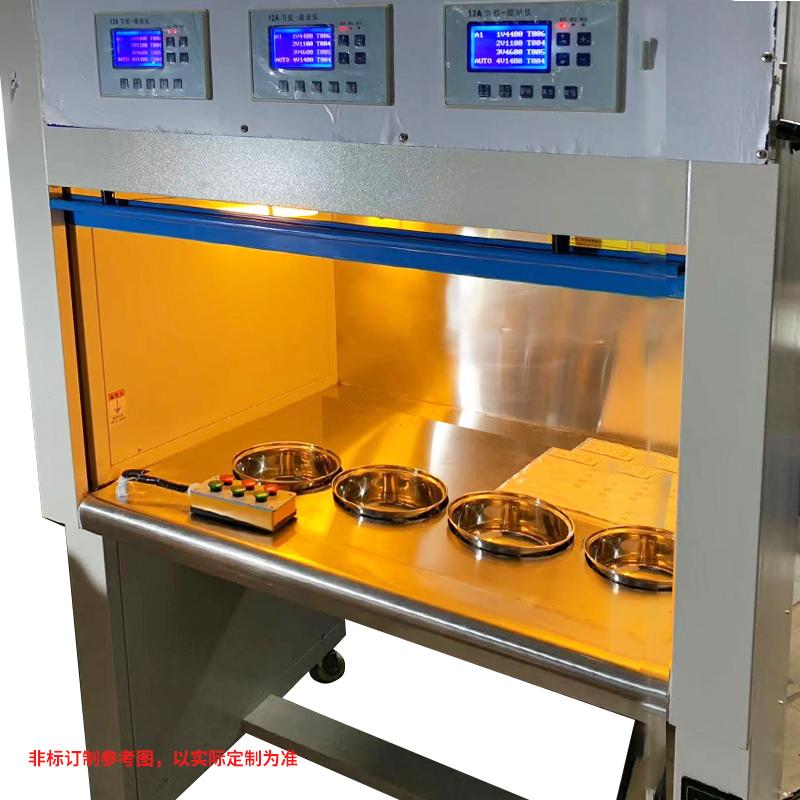

CHINA 10A-4 touch screen four-station Spin Coater Picture

Function

1. Use 4 workstations to evenly glue silicon wafers with a diameter of 40mm (the wafer holder can be selected from 5-100mm). The silicon wafers are fixed by suction cups on the workstations.

2. The workstation speed control range is 100-7000 rpm, and the accuracy is ±1%.

        Starting method is soft start, the soft start level is infinitely adjustable (acceleration setting range 100-3000 rpm), Acceleration time from 0-7000 rpm is 3-80 seconds .

3. The time control range of each period is 0-3000 seconds. Accuracy ±0.1%.

4. 12 groups of process parameters can be pre-stored, each group has 5 segments.

5. Automatically control the glue leveling process. Place the silicon wafer manually and press the start button to complete the glue dispersion process.

6. The workbench has an exhaust function.

7. Each work station can operate independently, and vacuum and spin coating are interlocked.

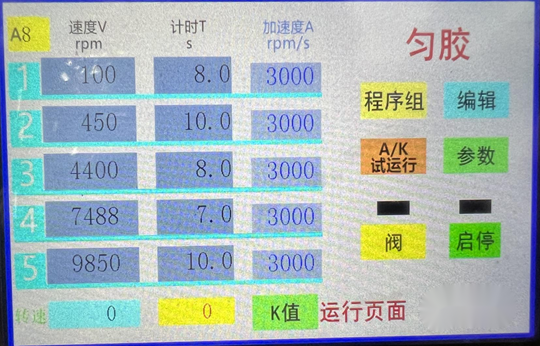

8. Each workstation has a 4.3-inch resistive touch screen display and control with a protective film.
