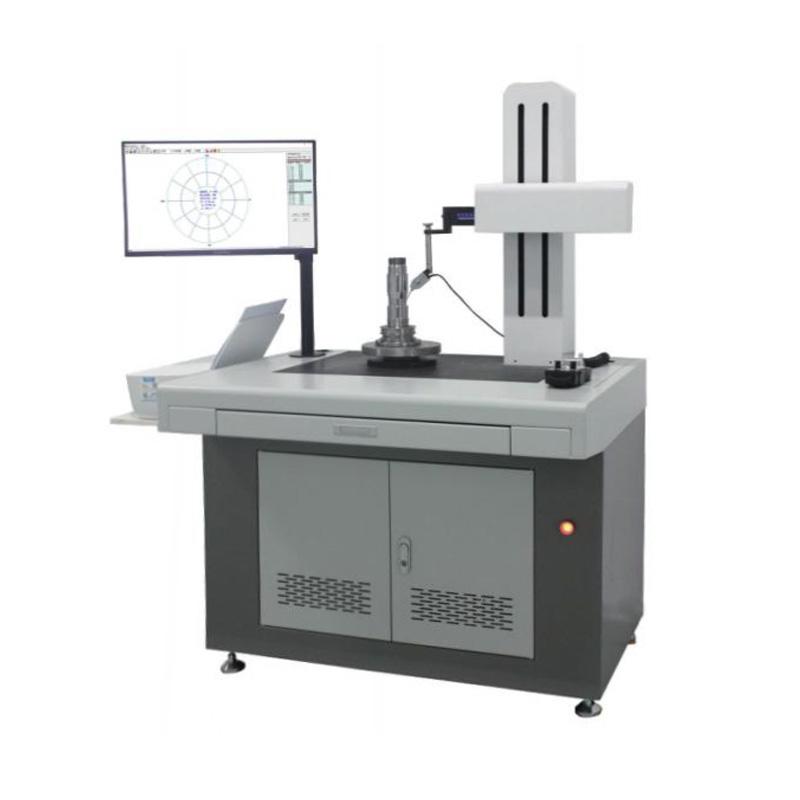

IPRE YG140D Roundness meter resolution 0.01μm
SE
YG140D
Ipre YG140D Roundness meterSPEC
Ipre YG140D Roundness meterDetails
Ipre YG140D Roundness meterPacking list
- SKU
- NB044863
- Swirling/spinning table
- Bearing type: air flotation; Spindle Accuracy: soil 0.025μm; System Accuracy: 0.06μm; Maximum measurement outer diameter: φ 140mm (expandable); Minimum inner diameter: φ 3mm; Maximum load bearing: 60kg; Rotation speed: 5 rpm
- Vertical axis (Z axis)
- Vertical movement: 300mm (can be increased); vertical movement mode: electric; maximum detection depth: 60mm;
- Horizontal (X-axis)
- Horizontal movement: 150mm; Protrusion: 25mm; Horizontal movement mode: electric
- Detector
- Acquisition device: circular grating; circumferential sampling points: 4096; sensor type: Inductance Sensors; Sensors resolution: 0.01 μm
- Roundness error evaluation method
- Least Square Method (LSC), Minimum Area Method (MZC), Maximum Circumscribed Circle Method (MIC), Minimum Inscribed Circle Method (MCC)
- filter band
- 1、1-500、2-500、2-15、2-50、2-150、15-500、15-50、15-150、15-250、3-16、17-100
- concave-convex mouth rejection
- Automatic identification of interruptions, automatic and manual removal of bumps, partial arc measurement roundness
- software function
- Roundness, waviness, coaxiality, verticality, parallelism, flatness
Features
The rotary measurement turntable of the instrument adopts a high-precision air-bearing hydrostatic bearing structure. The main shaft of the instrument has high precision, no wear and long service life;
The instrument adopts the new WIN10 system operating platform and is backward compatible. The professional measurement software has a simple and intuitive measurement interface and is easy to operate;
Graphical data can be displayed in real time, saved to disk, and printed at any time. Graphical analysis reports are intuitive and clear;
Motor commutator measurement uses special measurement and processing software, and the same interface can display parameter values ââsuch as roundness, runout, single-piece runout, and runout between adjacent pieces;
Automatically identify discontinuities, automatically and manually remove notches, and measure roundness of partial arcs.
Application scope
This instrument is suitable for measuring the surface roundness, waviness, coaxiality, perpendicularity, parallelism, flatness and other parameters of various regular and irregular rotating workpieces (four methods can be used to evaluate the roundness error) and can Give the eccentricity and phase of the part. It can also be used to measure parameters such as roundness, runout, single piece runout, and runout between adjacent pieces of various motor commutators with discontinuous surfaces, and can give the eccentricity and phase of the parts.
