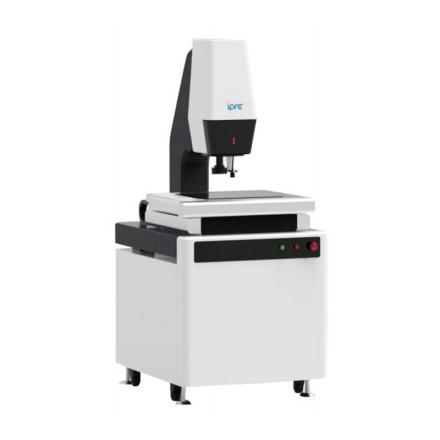

Specifications
| measurement | X sentire:100mm;Y sentire:80mm;Z sentire:40mm |
| Image Sensors | Haikang 20 million pixels |
| magnification | 0.88X |
| Display unit | 0.0001 |
| Measurement Accuracy | (±3.0+L/50mm) um |
| Repeatability (m) | ±3.0 |
| camera interface | Gigabit Ethernet (transmission rate: 1G/S) |
| lens | Double telecentric lens |
| lighting system | Transmission System: Telecentric Light Transmission (Color: Green) |
| Auxiliary Light source (optional) | Coaxial Light source: Coaxial light drop (Color: White); Low Angle Surface Light source: Movable up and down programmable LED Light source (Color: White) |
| Software version | DISOFOO-S one-click dedicated software |
| Power | AC100-240V 50/60Hz |
| Camera Voltage | Output/rated load DC24V0.6A or less |
| Host Weight (Kg) | 35 |
| The maximum Weight of the workpiece to be tested (Kg) | 3 |
Packing list
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/44870/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
