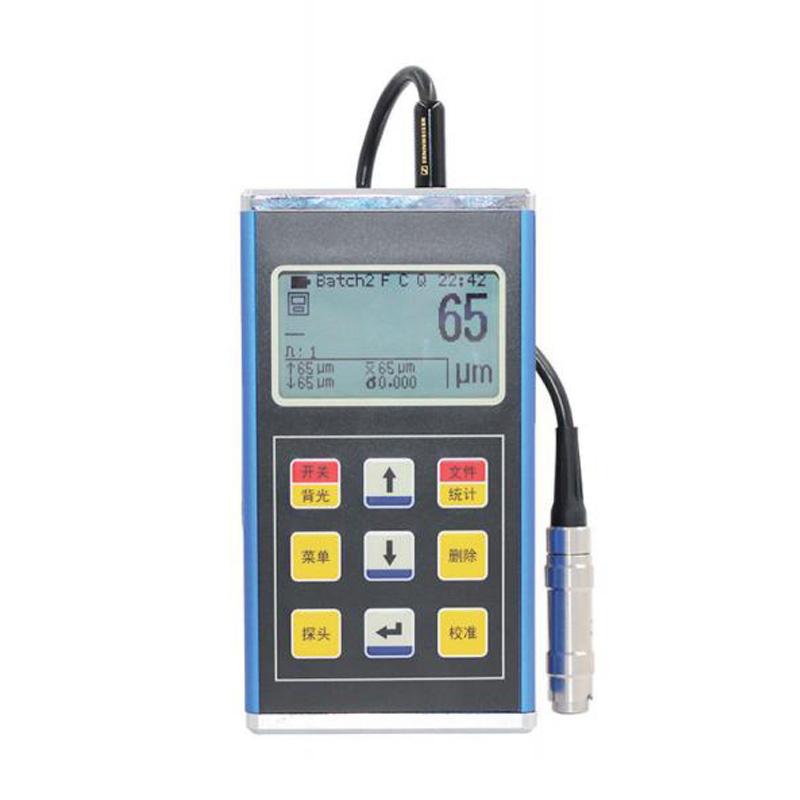

IPRE CT400 magnetic Induction eddy Current Coating Thickness Gauge Measurement range 0~1500μm

CT400

Coating Thickness Gauge

Split, magnetic Induction eddy Current dual-use thickness measurement method, can store 500 Measured values, unique temperature compensation algorithm.

Introduction

The CT400 coating Thickness Gauge is an instrument used to measure the thickness of a coating or coating on the surface of a substrate. It is widely used in industry and quality control to ensure coating quality, consistency and compliance with specifications. Coating Thickness Gauges can be used to measure various coatings, including paint, plating, paint, electroplating, thermal spraying, etc. It is widely used in metal processing, chemical industry, commodity inspection, electroplating, spraying, pipeline anti-corrosion, aluminum profiles, steel structures and other industries. It is also suitable for shipbuilding, aerospace, electric power , pot special inspection, technical supervision bureau and other industries.

Features

• Two thickness measurement methods, magnetic and eddy current, are adopted, which can measure the thickness of the non-magnetic covering layer on the magnetic metal substrate and the thickness of the non-conductive covering layer on the non-magnetic metal substrate;

• Split (the sensor and the instrument are connected through leads), dual-purpose (F type and N type in one);

• Unique temperature compensation algorithm;

• It has two measurement methods: continuous measurement method (CONTINUE) and single measurement method (SINGLE). It has statistical functions: average value (MEAN), maximum value (MAX), minimum value (MIN), number of tests (NO,), and standard deviation. (SDEV);

• With storage function: can store 500 measurement values.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
