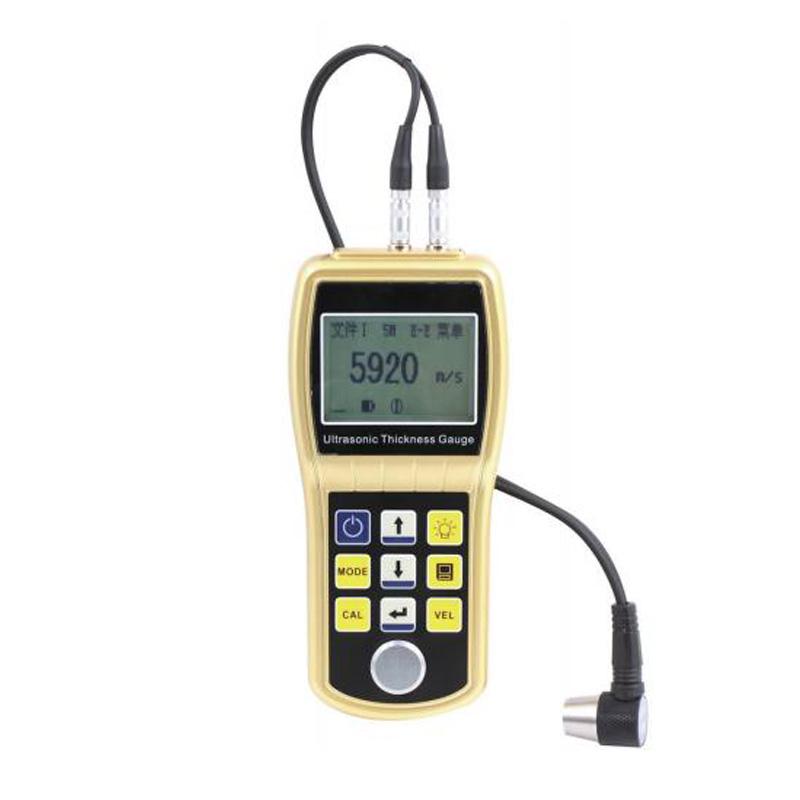

IPRE UT700 Ultrasonic Thickness Gauge measurement range 3~ 200mm

UT700

Ultrasonic Thickness Gauge

With probe automatic zero point calibrating, two point Adjustment, Display resolution up to 0.001mm, LED backlight display, easy to use in the dark environment of light rays.

Introduction

The UT700 ultrasonic Thickness Gauge is a device used to measure the thickness of materials. It uses ultrasonic technology to non-destructively measure the thickness of objects. This instrument is widely used in the industrial field, especially for detecting the thickness of pipelines, storage tanks, pressure vessels, metal components and various other engineering structures to ensure their safety and integrity. It is widely used in the wall thickness of various plates, pipes, boiler vessel wall thickness and local corrosion and rust. Therefore, it is used for product inspection in metallurgy, shipbuilding, machinery, chemical industry, electric power, atomic energy and other industrial sectors, and for the safe operation and safety of equipment. Modern management plays a major role.

Features

• Suitable for measuring the thickness of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramic glass and any other good conductors of ultrasonic waves;

• It has probe zero-point calibration and two-point calibration functions, which can automatically correct system errors;

• The known thickness can be used to back-measure the sound velocity to improve measurement accuracy;

• Display resolution can reach 0.001mm;

• The upper and lower limits of the thickness value can be preset, and an automatic alarm will occur if the thickness exceeds the range;

• It has an LED backlight display for easy use in dimly lit environments.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
