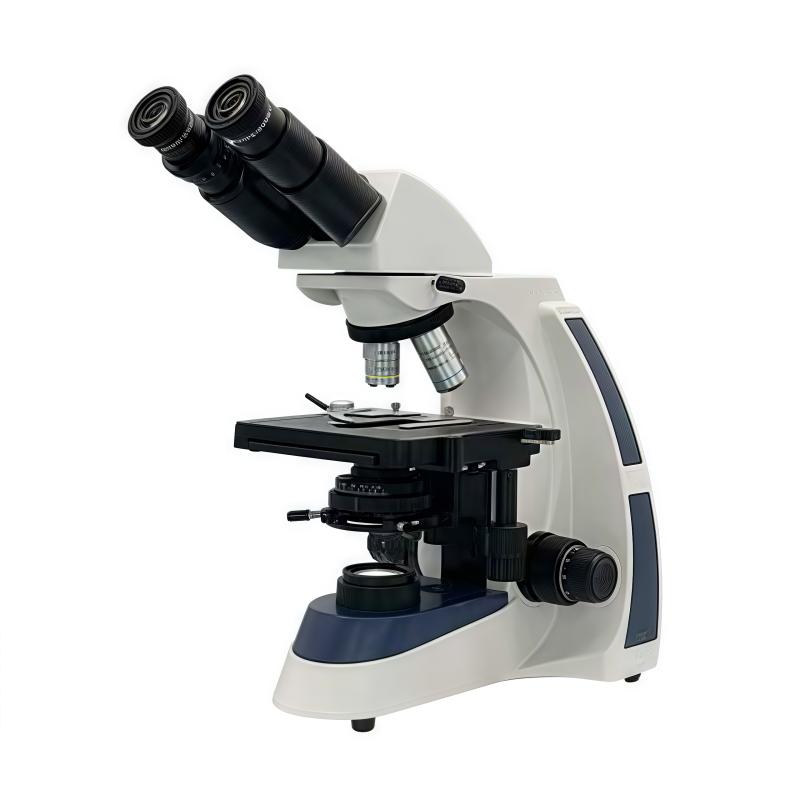

Varnishing BM-17 UIS Biological Microscope Infinity System

The use of electric light source, luminance can be continuously adjusted, hinged barrel, 30 ° tilt, 360 degrees of free rotation.

$742.00/set

PromotionLoading...

Coupon

Model：

BM-17

Certificate

SHSGBM

Contact

Details SPEC Con

SHSGBM BM-17 UIS Biological MicroscopeSPEC

SHSGBM BM-17 UIS Biological MicroscopeDetails

SHSGBM BM-17 UIS Biological MicroscopePacking list

SKU: NB044890

Mechanical barrel length: Infinity system (∞)

magnification: 40X-1000X

Stage size: Mobile platform 140 × 160mm

Movement range: 76×45mm

Focusing device: 30Mm coarse fretting focusing coaxial mechanism, fine-tuning grid value 0.002mm

condenser: N.A.1.25 Adjustable medium Abbe condenser with variable light bar

Color filter: Blue. Green.

Light source: LED light, adjustable luminance

BM-17

UIS Biological Microscope

The use of electric light source, luminance can be continuously adjusted, hinged barrel, 30 ° tilt, 360 degrees of free rotation.

Introduction

The BM-17 binocular UIS biological microscope adopts UIS infinity optical technology and is highly expandable and can be equipped with auxiliary equipment such as vertical illumination devices and fluorescence devices. It is widely used in research fields such as histology, biology, bacteriology, pathology, medicinal chemistry, etc., as well as teaching work in colleges and universities, and clinical analysis and experiments in the medical community.

This instrument uses an electric light source with continuously adjustable brightness. It has a hinged lens barrel with a 30Â° tilt and 360-degree free rotation.

Standard configuration

eyepiece:

category	gain	Direct field of view
eyepiece	10X	Ï22mm
eyepiece	16X (optional)	Ï15mm

Objective lens:

category	gain	numerical aperture	working distance
objective lens	4X	0.1NA	20.00mm
	10X	0.25NA _	13.50mm
	40X	0.65NA _	0.68mm
	100X (oil)	1.25 NA	0.20mm
