Varnishing BM-17AD Computer UIS Microscope 40X-1000X Magnification

SE
The use of electric light source, luminance can be continuously adjusted, hinged barrel, 30 ° tilt, 360 degrees of free rotation.
$1678.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

SHSGBM BM-17AD Computer UIS Biological MicroscopeSPEC

SHSGBM BM-17AD Computer UIS Biological MicroscopeDetails

SHSGBM BM-17AD Computer UIS Biological MicroscopePacking list

SKU
NB044891
Mechanical barrel length
Infinity system (∞)
magnification
40X-1000X
Stage size
Mobile platform 140 × 160mm
Movement range
76×45mm
Focusing device
30 mm coarse fretting focusing coaxial mechanism, fine-tuning grid value 0.002mm
condenser
N.A.1.25 Adjustable medium Abbe condenser with variable light bar
Color filter
Blue. Green.
Light source
LED light, adjustable luminance
Computer imagery system
(1) Digital CMOS camera, 5 million pixels, with geometric measurement analysis software; (2) MCL-Z adapter mirror; (3) Computer self-purchased.
BM-17AD
Computer UIS Biological Microscope
The use of electric light source, luminance can be continuously adjusted, hinged barrel, 30 ° tilt, 360 degrees of free rotation.

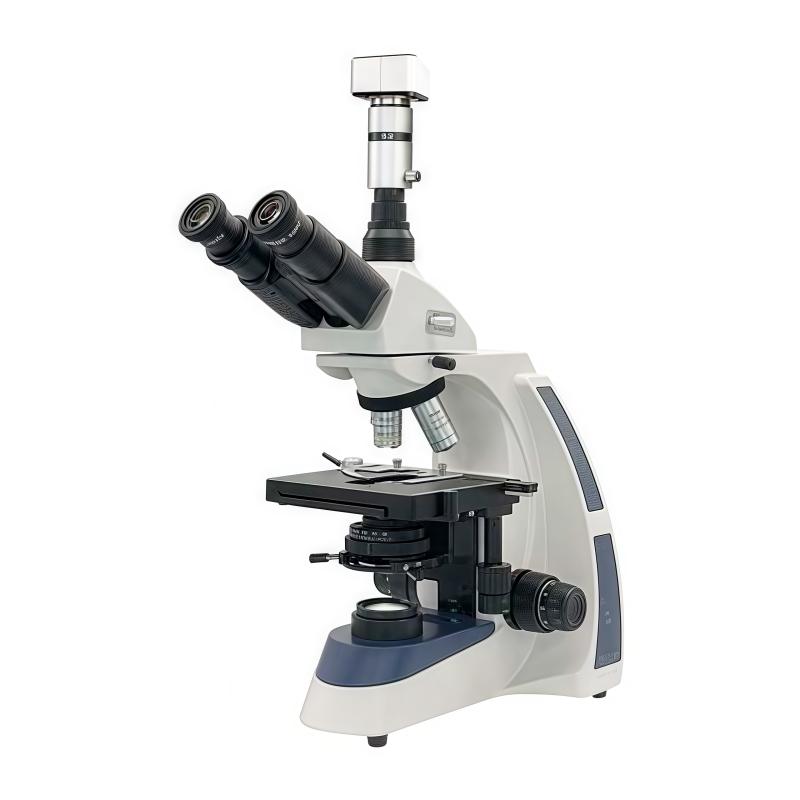

Varnishing BM-17AD Computer UIS Microscope 40X-1000X Magnification Picture

Introduction

The BM-17AD computer-based trinocular UIS biological microscope adopts UIS infinity optical technology and is highly expandable and can be equipped with auxiliary equipment such as vertical illumination devices and fluorescence devices. It is widely used in research fields such as histology, biology, bacteriology, pathology, medicinal chemistry, etc., as well as teaching work in colleges and universities, and clinical analysis and experiments in the medical community.

This instrument uses an electric light source with continuously adjustable brightness. It has a hinged lens barrel with a 30° tilt and 360° free rotation.

Standard configuration

eyepiece:

categorygainField of view diameter
eyepiece10Xφ22mm
16X (optional)φ15mm

Objective lens:

categoryMagnificationnumerical apertureworking distance
Infinity achromatic objective lens4X0.120.00mm
10X0.2513.50mm
40X0.650.68mm
100X (oil)1.250.20mm
