VARNISING BM-20APH UIS Microscope luminance can be adjusted continuously

UIS Infinity Optical inspection technology, strong scalability can be equipped with vertical lighting devices, fluorescent devices and other auxiliary equipment.

$2141.00/set

PromotionLoading...

Coupon

Model：

BM-20APH

Certificate

SHSGBM

Contact

Details SPEC Con

SHSGBM BM-20APH UIS Phase Contrast MicroscopeSPEC

SHSGBM BM-20APH UIS Phase Contrast MicroscopeDetails

SHSGBM BM-20APH UIS Phase Contrast MicroscopePacking list

SKU: NB044894

Mechanical barrel length: Infinity system (∞)

magnification: 40X-1600X

Stage size: Double-decked mobile platform 155 × 145mm

Movement range: 80×50mm

pupil distance: 55-75mm

Focusing device: 30Mm coarse fretting coaxial focusing with limit, coarse focusing tension locking device, fine-tuning grid value 0.002mm

Phase contrast device: BF and DF phase contrast condenser with dark field of view with variable bar

condenser: N.A.1.25 Adjustable medium Abemin field condenser with variable light bar

Color filter: Blue, yellow, green

reservation device: Reserved polarizer and upper filter fixture

Light source: 6V/20W halogen lamp, Kohler lighting, adjustable luminance

BM-20APH

UIS Phase Contrast Microscope

UIS Infinity Optical inspection technology, strong scalability can be equipped with vertical lighting devices, fluorescent devices and other auxiliary equipment.

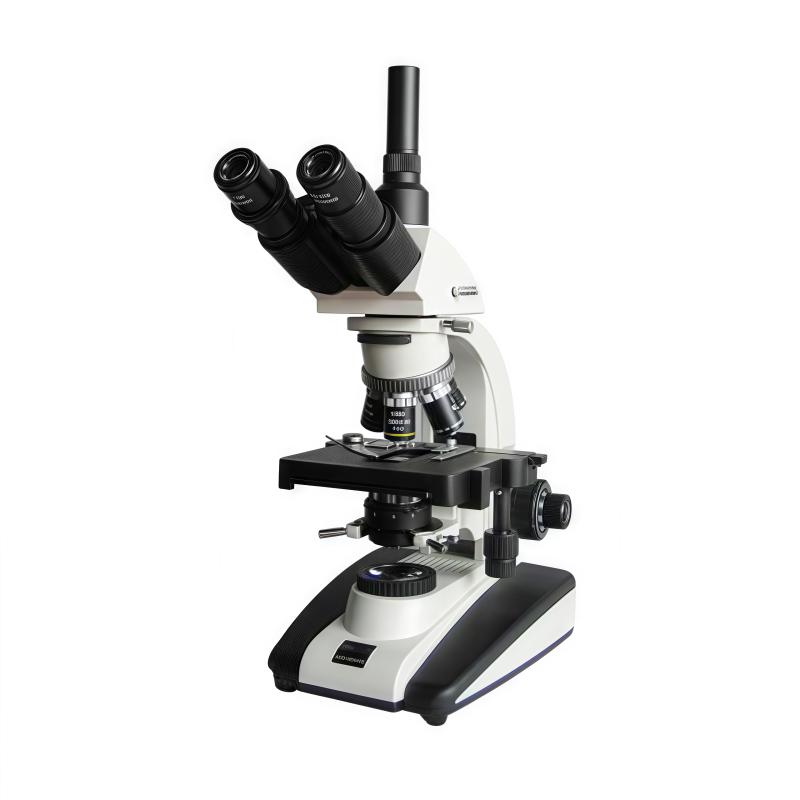

VARNISING BM-20APH UIS Microscope luminance can be adjusted continuously Picture

Introduction

The BM-20APH trinocular UIS phase contrast microscope adopts UIS infinity optical technology and is highly expandable and can be equipped with auxiliary equipment such as vertical illumination devices and fluorescence devices. It is widely used in research fields such as histology, biology, bacteriology, pathology, medicinal chemistry, etc., as well as teaching work in colleges and universities, and clinical analysis and experiments in the medical community.

This instrument uses an electric light source with continuously adjustable brightness. The chain-type trinocular tube is tilted at 30Â° and can rotate freely 360 degrees.

Standard configuration

eyepiece:

category	gain	Field of view diameter
Plan eyepiece	10X	Ï22mm
Plan eyepiece	16X	Ï15mm

Biological objective lens:

category	Magnification	numerical aperture	working distance
Infinity Plan Achromatic Objective	4X	0.1	20.00mm
	10X	0.25	13.50mm
	40X	0.65	0.68mm
	100X (oil)	1.25	0.20mm

Phase contrast objective:

category	Magnification	numerical aperture	working distance
Infinity plan phase contrast objective	4X	0.1	20.00mm
	10X	0.25	13.50mm
	40X	0.65	0.68mm
	100X (oil)	1.25	0.20mm
