Varnishing BM-20APHD Computer Phase Contrast Microscope UIS Infinity

SE
UIS Infinity Optical inspection technology, compared with the chain type three eyepiece barrel, 30 ° tilt, 360 degrees of free rotation.
$3017.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

SHSGBM BM-20APHD Computer Phase Contrast MicroscopeSPEC

SHSGBM BM-20APHD Computer Phase Contrast MicroscopeDetails

SHSGBM BM-20APHD Computer Phase Contrast MicroscopePacking list

SKU
NB044895
Mechanical barrel length
Infinity system (∞)
magnification
40X-1600X
Stage size
Double-decked mobile platform 155 × 145mm, moving range 80 × 50mm
pupil distance
55-75mm
Focusing device
30Mm coarse fretting coaxial focusing with limit, coarse focusing tension locking device, fine-tuning grid value 0.002mm
Phase contrast device
BF and DF phase contrast condenser with dark field of view with variable bar
condenser
N.A.1.25 Adjustable medium Abemin field condenser with variable light bar
Color filter
Blue, yellow, green
reservation device
Reserved polarizer and upper filter fixture
Light source
6V/20W halogen lamp, Kohler lighting, adjustable luminance
Computer imagery system
(1) Digital CMOS camera, 5 million pixels, with geometric measurement analysis software, the software for point, line, circle and arc, straightness, roundness, area and other measurements; (2) MCL-Z adapter mirror; (3) computer self-purchased
BM-20APHD
Computer Phase Contrast Microscope
UIS Infinity Optical inspection technology, compared with the chain type three eyepiece barrel, 30 ° tilt, 360 degrees of free rotation.

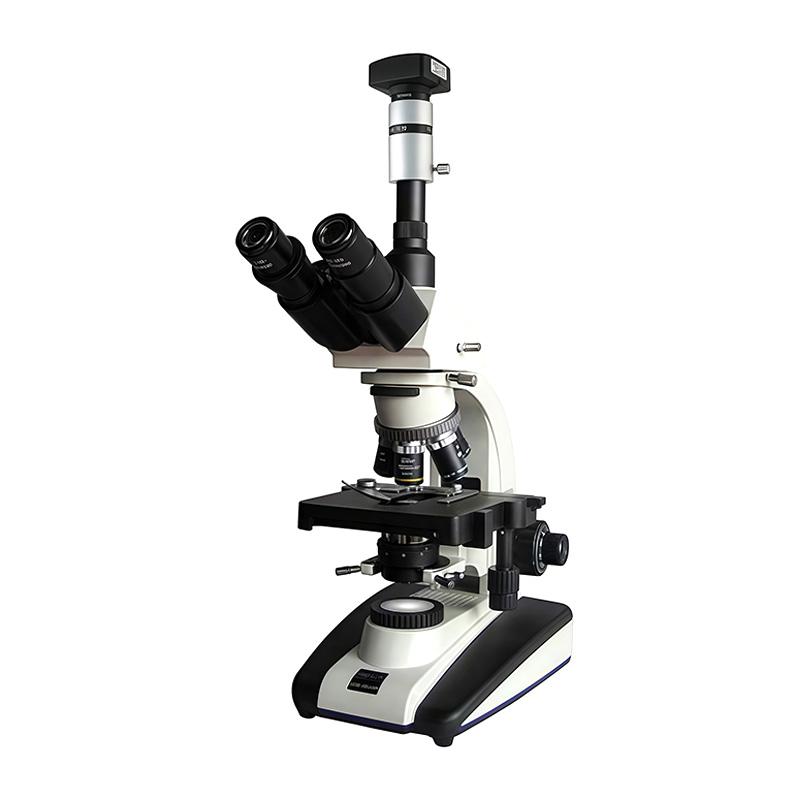

Varnishing BM-20APHD Computer Phase Contrast Microscope UIS Infinity Picture

Introduction

The BM-20APHD computerized UIS phase contrast microscope adopts UIS infinity optical technology and is highly expandable and can be equipped with auxiliary equipment such as vertical illumination devices and fluorescence devices. It is widely used in research fields such as histology, biology, bacteriology, pathology, medicinal chemistry, etc., as well as teaching work in colleges and universities, and clinical analysis and experiments in the medical community.

This instrument uses an electric light source with continuously adjustable brightness. The chain-type trinocular tube is tilted at 30° and can rotate freely 360 degrees.

Standard configuration

eyepiece:

categorygainField of view diameter
Plan eyepiece10Xφ22mm
16Xφ15mm

Biological objective lens:

categoryMagnificationnumerical apertureworking distance
Infinity Plan
Achromatic Objective		4X0.120.00mm
10X0.2513.50mm
40X0.650.68mm
100X (oil)1.250.20mm

Compatible objective lens:

categoryMagnificationnumerical apertureworking distance
Infinity plan phase contrast objective4X0.120.00mm
10X0.2513.50mm
40X0.650.68mm
100X (oil)1.250.20mm



FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
