Varnishing BM-37XB Inverted Biological Microscope

SE
Equipped with a long working distance objective lens and a long working distance flat-field color difference condenser, a wide-angle eyepiece, and a phase contrast device.
$1992.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

SHSGBM BM-37XB Inverted Biological MicroscopeSPEC

SHSGBM BM-37XB Inverted Biological MicroscopeDetails

SHSGBM BM-37XB Inverted Biological MicroscopePacking list

SKU
NB044897
Mechanical barrel length
160mm
magnification
40X-640X
Stage size
Cube stage, size: 190mm × 170mm; Glass plate: φ 110mm; Movement range: 120mm × 80mm
pupil distance
50-75mm
Focusing device
Coarse and fretting coaxial focusing, using rack and pinion transmission mechanism, fretting grid value: 0.002mm
condenser
Long working distance condenser with variable light bar, working distance: 55mm
lighting system
12V 20W halogen lamp, adjustable luminance
Power
AC 85V-230V(50/60HZ)
BM-37XB
Inverted Biological Microscope
Equipped with a long working distance objective lens and a long working distance flat-field color difference condenser, a wide-angle eyepiece, and a phase contrast device.

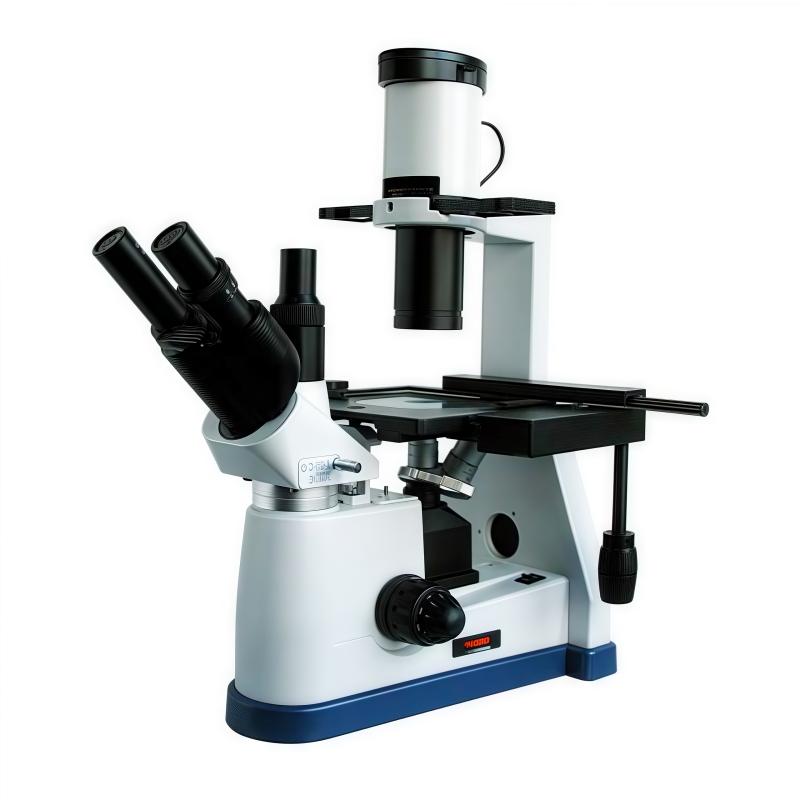

Varnishing BM-37XB Inverted Biological Microscope Picture

Introduction

The BM-37XB trinocular inverted biological microscope has the characteristics of microscopic observation in culture bottles or petri dishes. The instrument is equipped with a long working distance objective lens, a long working distance plan achromatic condenser, a wide-angle eyepiece, and a phase contrast device. , can observe transparent living bodies without staining, and is especially suitable for microscopic research on living cells and tissues, fluids, sediments, etc., and can be used by scientific research, universities, medical, epidemic prevention, agriculture and animal husbandry and other departments.

This instrument uses an electric light source with continuously adjustable brightness. The hinged lens barrel is tilted at 45° and can rotate freely 360 degrees.

Standard configuration

eyepiece:

categorygainfocal lengthField of view diameter
wide angle eyepiece10X25mmφ18mm
Plan eyepiece16X15.6mmφ11mm

Objective lens:

Objective typeMagnificationnumerical apertureworking distancePetri dish wall thickness
Long working distance plan achromatic objectives4X0.125mm——
40X0.653.3mm1.5mm
Long working distance plan phase contrast objectives10X0.258.1mm——
20X0.354.8mm1.5mm
