Varnishing BM-37XC Inverted Biological Microscope with Variable Light Bar

With the characteristics of microscopic observation in foster bottles or culture dishes, the instrument is equipped with a long working distance objective lens, a long working distance flat-field color difference condenser, a wide-angle eyepiece, and a phase contrast device.
Model：
Certificate
Contact
Details SPEC
Similar products

SHSGBM BM-37XC Inverted Biological MicroscopeSPEC

SHSGBM BM-37XC Inverted Biological MicroscopeDetails

SHSGBM BM-37XC Inverted Biological MicroscopePacking list

SKU
NB044899
Mechanical barrel length
Infinity system (∞)
magnification
40X-640X
Stage size
Size: 242mm × 172mm; Glass sheet: φ 110mm; Moving range: 120mm × 75mm
pupil distance
50-75mm
Focusing device
Coarse and fretting coaxial focusing, using rack and pinion transmission mechanism, fretting grid value: 0.002mm
condenser
Long working distance condenser with variable light bar, working distance: 55mm
lighting system
12V20W halogen lamp, adjustable luminance
BM-37XC
Inverted Biological Microscope
With the characteristics of microscopic observation in foster bottles or culture dishes, the instrument is equipped with a long working distance objective lens, a long working distance flat-field color difference condenser, a wide-angle eyepiece, and a phase contrast device.

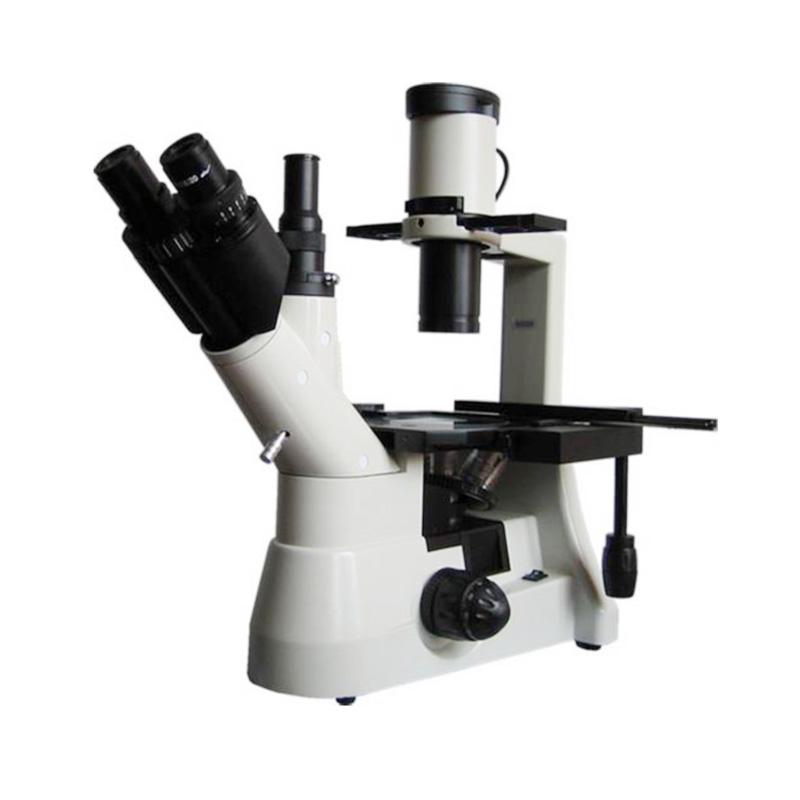

Varnishing BM-37XC Inverted Biological Microscope with Variable Light Bar Picture

Introduction

The BM-37XC trinocular inverted biological microscope has the characteristics of microscopic observation in culture bottles or petri dishes. The instrument is equipped with a long working distance objective lens, a long working distance plan achromatic condenser, a wide-angle eyepiece, and is also equipped with a phase contrast device. , can observe transparent living bodies without staining, and is especially suitable for microscopic research on living cells and tissues, fluids, sediments, etc., and can be used by scientific research, universities, medical, epidemic prevention, agriculture and animal husbandry and other departments.

This instrument uses an electric light source with continuously adjustable brightness. The hinged lens barrel is tilted at 45° and can rotate freely 360 degrees.

Standard configuration

eyepiece:

typegainfocal lengthField of view diameter
wide angle eyepiece10X25mmφ22mm
Plan eyepiece16X15.6mmφ20mm

Objective lens:

Objective typeMagnificationnumerical apertureworking distanceCover glass thicknessRemark
Infinity long working distance plan achromatic objectives4X0.125mm1.2mm
40X0.63.3mm1.2mm
Infinity long working distance plan phase contrast objective10X0.258.1mm——
20X0.44.8mm1.2mm
40X
