Varnishing BM-37XFP Tablet Inverted Bio Microscope Magnification 100X-400X

SE
Equipped with a long working distance flat-field color difference objective lens, a large field of view eyepiece and a swirl/spin swing-out condenser lens, the removable mechanical mobile loading device can meet the needs of different high-culture dish observation.
$3582.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

SHSGBM BM-37XFP Tablet Computer Inverted Biological MicroscopeSPEC

SHSGBM BM-37XFP Tablet Computer Inverted Biological MicroscopeDetails

SHSGBM BM-37XFP Tablet Computer Inverted Biological MicroscopePacking list

SKU
NB044908
Mechanical barrel length
160mm
magnification
100X-400X
converter
Four hole converter
Stage size
Platform size: 224mmx208mm; Movement range: 112mm (X) × 79mm (Y)
Culture dish pallet one
Placement phi 68mm or 77mmX29mm
Culture dish pallet two
Place 128mmX85mm 96-hole foster utensils
Culture dish pallet three
Place 82mmX57mm foster utensils
pupil distance
53-75Mm, 30 ° tilt eyepiece barrel
Focusing device
Coarse fretting coaxial, coarse elastic adjustable, with locking and limit device, fretting grid value: 0.002mm
condenser
Pull plate type phase contrast condenser, working distance 50mm, adjustable lift, NA. = 0.4
phase contrast system
Phase contrast, pull plate type phase contrast condenser, adjustable center of phase contrast ring
Color filter
Frosted Glass, Blue Color Filter, Green Color Filter
lighting system
6V30W halogen lamp, adjustable luminance
Imagery system
9.7-Inch large-screen Android system tablet, MCL-Z adapter mirror
BM-37XFP
Tablet Computer Inverted Biological Microscope
Equipped with a long working distance flat-field color difference objective lens, a large field of view eyepiece and a swirl/spin swing-out condenser lens, the removable mechanical mobile loading device can meet the needs of different high-culture dish observation.

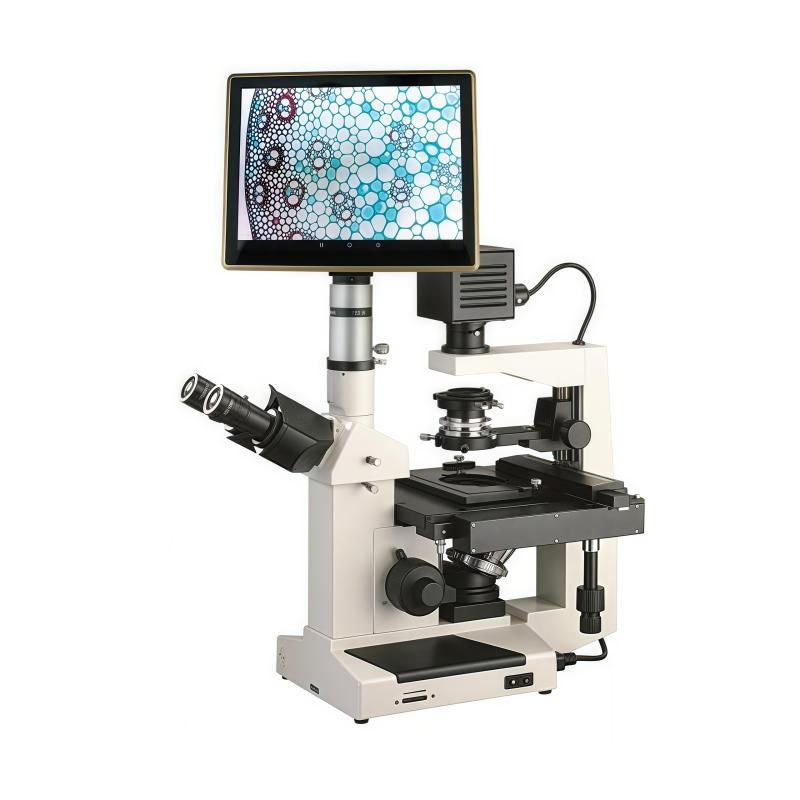

Varnishing BM-37XFP Tablet Inverted Bio Microscope Magnification 100X-400X Picture

Introduction

The BM-37XFP tablet-type inverted biological microscope is equipped with a long working distance plan achromatic objective lens, a large field of view eyepiece and a rotatable swing-in and swing-out condenser. The detachable mechanical mobile carrier device can meet the needs of observing petri dishes of different heights. The product has a compact structure and reasonable design of the operating parts, making the observer feel relaxed and comfortable while operating the instrument. The product is suitable for microscopic observation of cell tissues, transparent liquid tissues, and dynamic microscopic observation of cultured tissues in culture dishes. It can be used in scientific research institutes, colleges and universities, medical and health, inspection and quarantine, agriculture, animal husbandry, dairy and other departments.

Standard configuration

eyepiece:

typegainfocal lengthfield of view
eyepiece10X10mmφ22mm

Objective lens:

Objective typegainnumerical apertureworking distanceCover glass thicknessRemark
Long working distance
plan achromatic objectives		10X0.258.8mm1.2mm
25X0.44.8mm1.2mm
40X0.63.3mm1.2mm
Long working distance
plan phase contrast objectives		10X0.258.8mm1.2mmPHP2
