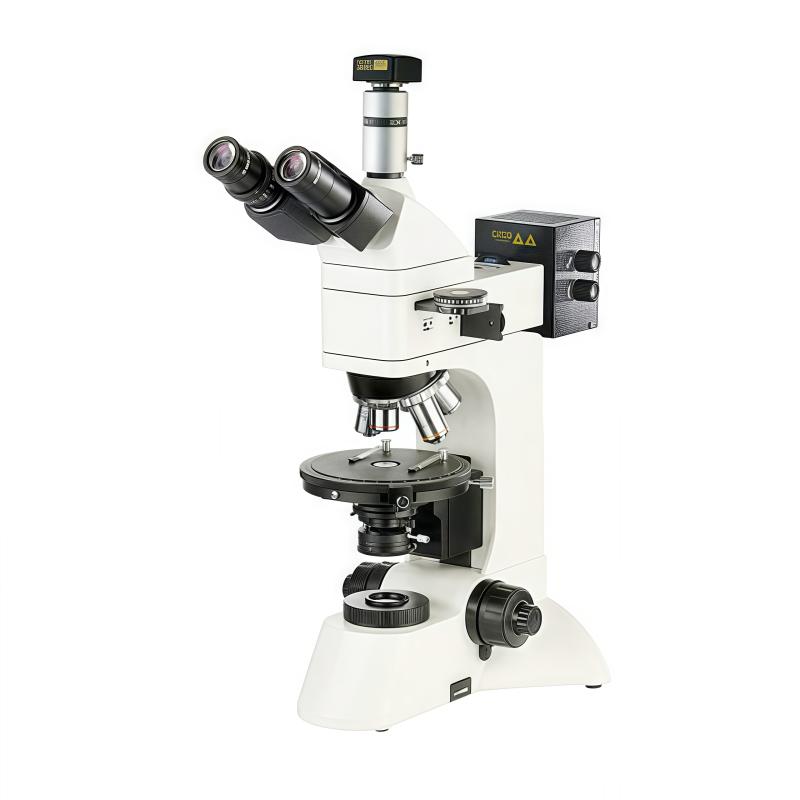

Varnishing BM-62XCD Computer reflection Polarizing Microscope

A commonly used instrument for research and identification of birefringent substances, using an electric light source, lighting can continuously adjust the luminance, hinged triocular barrel 30 ° tilt, 360 degrees of free rotation.

$4936.00/set

PromotionLoading...

Coupon

Model：

BM-62XCD

Certificate

SHSGBM

Contact

Details SPEC Con

SHSGBM BM-62XCD Microscope of computer reflectionSPEC

SHSGBM BM-62XCD Microscope of computer reflectionDetails

SHSGBM BM-62XCD Microscope of computer reflectionPacking list

SKU: NB044913

observation tube: Trinocular observation lens tube

Mechanical barrel length: Infinity system ∞

pupil distance: 55mm-75mm

converter: Four hole converter

Swirling/spinning table: Diameter φ 150mm, moving range: 360ºaliquot scale, cursor Accuracy 6 ', adjustable center

Focusing range: 23Mm, coaxial common rail coarse fretting focusing, fretting grid value 0.002mm

condenser: 360 ° swirl/spin with polarizer, N. A = 1.25 Abbe condenser with variable light bar

central device: Plug-in polarizer for 360 ° swirl/spin with scale and fretting vernier; push-in Burt mirror, lambda, lambda/4 and quartz wedge compensator

lighting system: 6V30W halogen lamp, adjustable luminance

Imagery system: 5 million pixel CMOS camera with geometric measurement analysis software; MCL-Z adapter mirror. (Computer purchase) Optional: 10 million or 20 million pixel CMOS camera

BM-62XCD

Microscope of computer reflection

Introduction

The BM-62XCD transmission and reflection polarizing microscope is a commonly used instrument for researching and identifying birefringent substances using the polarization characteristics of light. It can be used by users to conduct single polarization observation, orthogonal polarization observation, and conoscopic observation. It is widely used in research and inspection in the fields of geology, chemical industry, medical treatment, pharmaceuticals, etc. It can also be used to observe the crystal phase of liquid polymer materials, biopolymers and liquid crystal materials. It is a commonly used instrument for research and teaching in scientific research institutions and universities. .

This instrument uses an electric light source, and the lighting brightness can be continuously adjusted. The hinged trinocular tube is tilted at 30Â° and can be freely rotated 360 degrees.

Standard configuration

eyepiece:

type	gain	Visual field diameter
Plan eyepiece	10X	Ï22mm
reticle eyepiece	10X	Ï22mm

Objective lens:

type	gain	Numerical Aperture (NA)
Infinity plan achromatic stress-free objective lens	5X	0.12NA
	10X	0.25NA
	40X	0.65NA
	60X	0.70NA

FAQ

QIs the price listed on the website the final cost for overseas purchases?

ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

QWhat is the specific process for purchasing the product?

AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

QWhat should I do if the instrument I purchase needs repair?

AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
