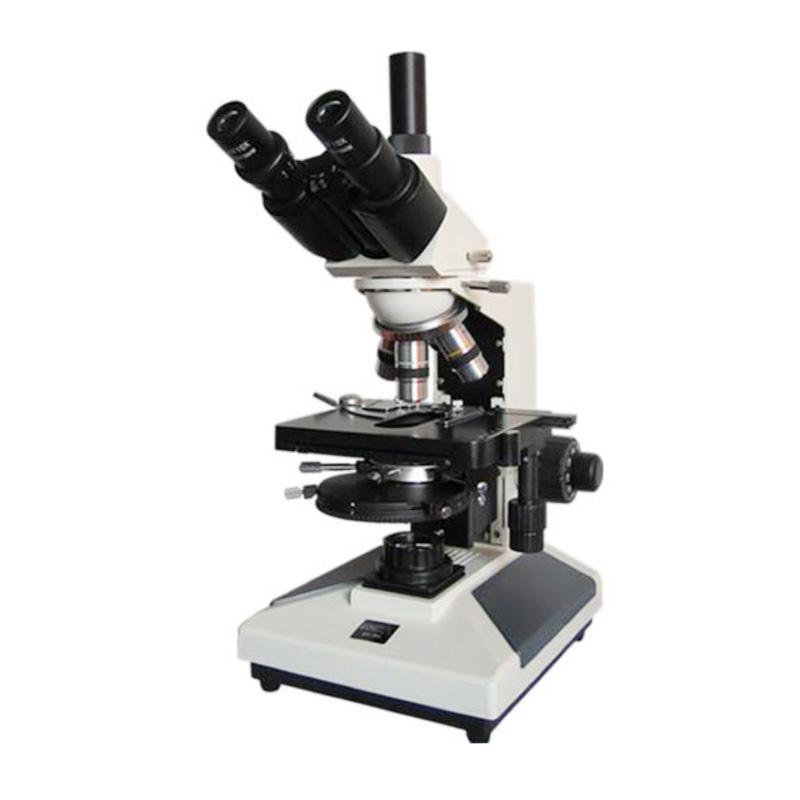

Varnishing BM-PH Phase Contrast Microscope

Using an electric light source, the luminance can be continuously adjusted, the hinged barrel is tilted 30 °, and can rotate 360 degrees freely.

$1381.00/set

PromotionLoading...

Coupon

Model：

BM-PH

Certificate

SHSGBM

Contact

Details SPEC Con

SHSGBM BM-PH Phase Contrast MicroscopeSPEC

SHSGBM BM-PH Phase Contrast MicroscopeDetails

SHSGBM BM-PH Phase Contrast MicroscopePacking list

SKU: NB044915

Mechanical barrel length: 160mm

magnification: 40X-1600X

Stage size: Mobile platform 160 × 140mm Moving range: 80 × 50mm, cursor: 0.1mm

pupil distance: 53-75mm

Focusing device: 30 mm coarse fretting focusing coaxial mechanism, fine-tuning grid value 0.002mm

condenser: N.A.1.25 Adjustable medium Abbe condenser with variable light bar, phase contrast condenser with variable light bar

Color filter: Blue, yellow, green

Light source: Halogen lamp 6V20W, AC85V-230V adjustable luminance

BM-PH

Phase Contrast Microscope

Using an electric light source, the luminance can be continuously adjusted, the hinged barrel is tilted 30 °, and can rotate 360 degrees freely.

Introduction

Phase contrast microscopy is developed based on the principles of microscopic optical imaging and the theory of phase contrast microscopy technology. It is suitable for observation and research of low-contrast, non-stained living sample specimens in cytology, bacteriology, fresh blood specimens, aquatic plankton, etc.

The BM-PH trinocular phase contrast microscope uses an electric light source with continuously adjustable brightness. The hinged lens barrel is tilted at 30Â° and can rotate freely 360 degrees.

Standard configuration

eyepiece:

type	gain	Visual field diameter
eyepiece	10X	Ï18mm
eyepiece	16X	Ï18mm

Objective lens:

type	gain	numerical aperture	working distance
achromatic objective lens	4X	0.1NA	37.5mm
	10X	0.25NA	7.31mm
	40X	0.65NA	0.63mm
	100X (oil)	1.25NA	0.18mm
phase contrast objective	10X	0.25NA	7.31mm
	40X	0.65NA	0.63mm
	100X (oil)	1.25NA	0.18mm
