VARNISING BM-SG10 Research Microscope

Optical inspection technology of infinite distance, semi-complex elimination of color difference infinity flat field objective, strong expansibility can be equipped with vertical lighting devices, fluorescent devices and other auxiliary equipment.
Model：
Certificate
Contact
Details SPEC

SHSGBM BM-SG10 Research Biological MicroscopeSPEC

SHSGBM BM-SG10 Research Biological MicroscopeDetails

SHSGBM BM-SG10 Research Biological MicroscopePacking list

SKU
NB044918
Mechanical barrel length
Infinity system (∞)
magnification
40X-1000X
Objective lens converter
Six hole converter
tube lens
Focal length: f = 200mm
Stage size
Layer mobile platform 189 × 160mm, moving range 80 × 50mm
pupil distance
55-75mm
Focusing device
30Mm coarse fretting coaxial focusing with limit, coarse focusing tension locking device, fine-tuning grid value 0.002mm
condenser
N.A.1.25 Abbe condenser adjustable medium with variable light bar
Color filter
Blue, green, neutral
Light source
12V/50W halogen lamp, Kohler lighting, Light source adjustable
BM-SG10
Research Biological Microscope
Optical inspection technology of infinite distance, semi-complex elimination of color difference infinity flat field objective, strong expansibility can be equipped with vertical lighting devices, fluorescent devices and other auxiliary equipment.

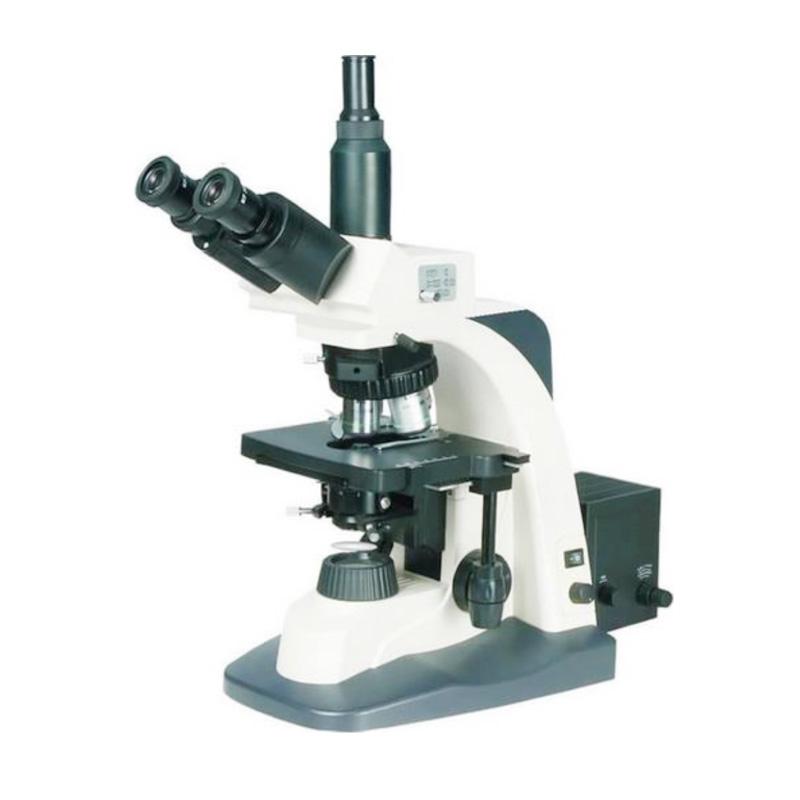

VARNISING BM-SG10 Research Microscope Picture

Introduction

The BM-SG10 trinocular biological microscope adopts infinity optical technology and a semi-apochromatic infinity plan objective lens. It is highly expandable and can be equipped with auxiliary equipment such as vertical illumination devices and fluorescence devices. It is widely used in histology, biology, bacteriology, Research fields such as pathology and medicinal chemistry, teaching work in colleges and universities, and clinical analysis and experiments in the medical field.

This instrument uses a light source, the illumination brightness can be continuously adjusted, and the trinocular hinged observation tube is tilted at 30° and can rotate freely 360 degrees.

Standard configuration

eyepiece:

typegainVisual field diameter
High eye point wide field plan eyepiece10XΦ22mm
16X (optional)Φ17mm

Objective lens:

typegainnumerical apertureworking distance
Semi-apochromatic
infinity plan objective		4X0.1NA29.4mm
10X0.25NA16mm
20X0.4NA3mm
40X(S)0.65NA0.63mm
100X(S) Oil1.25NA0.35mm


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
