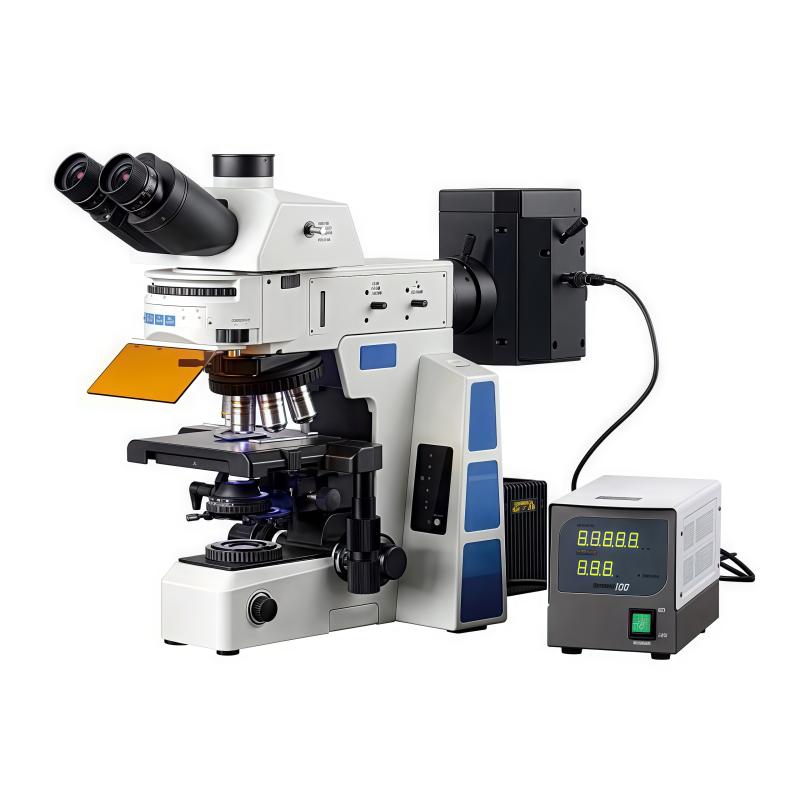

VARNISING BM-SG15Y Research Fluorescence Microscope Magnification 40X-1000X

Adopt mechanical tube length infinity system (∞), magnification 40X-1000X, digital dimming, with light intensity setting and reset function, built-in transmitted light color filter.

$27587.00/set

PromotionLoading...

Coupon

Model：

BM-SG15Y

Certificate

SHSGBM

Contact

Details SPEC Con

SHSGBM BM-SG15Y Research Fluorescence MicroscopeSPEC

SHSGBM BM-SG15Y Research Fluorescence MicroscopeDetails

SHSGBM BM-SG15Y Research Fluorescence MicroscopePacking list

SKU: NB044929

Mechanical barrel length: Infinity system (∞)

spectral ratio: 0:100；20:80；100:0

magnification: 40X-1000X

Objective lens converter: Six-hole converter (with DIC slot, with luminance memory function)

Stage size: Double-decked mobile platform 187 × 166mm, moving range 80 × 55mm

pupil distance: 50-76 mm

Focusing device: 25Mm coarse fretting coaxial focusing with limit, coarse focusing tension locking device, fine-tuning grid value 0.001mm

condenser: N.A.0.9 Abbe condenser adjustable medium with variable light bar

Fluorescent device: 6-Hole disc fluorescent reflection illuminator, with variable field diaphragm, aperture diaphragm, center adjustable, with color filter slot and polarizer slot, fluorescent eye protection board; 100W mercury lamp chamber, digital control

Fluorescent filter group: UV（EX375/28,BS415,EM460/50）、V（EX436/20,BS455,EM480/30）、B（EX480/30,BS505,EM535/40）、G（EX560/40,BS600,EM635/60）

lighting system: Compound eye lighting system

Light source: 12V/100W halogen lamp with digital dimming, Light intensity setting and reset function, built-in transmitted light filter

BM-SG15Y

Research Fluorescence Microscope

Adopt mechanical tube length infinity system (∞), magnification 40X-1000X, digital dimming, with light intensity setting and reset function, built-in transmitted light color filter.

Introduction

BM-SG15Y research fluorescence biological microscope adopts infinity optical technology, the system with modular function combination, high-definition optical images, simple operation mechanism, easy to achieve brightfield, fluorescence, phase contrast, polarization and other professional observation and diagnostic analysis, fully meet the needs of users in scientific research, ** and other fields. This instrument adopts electric light source, the brightness can be continuously adjusted, hinged lens tube, 30° tilt, 360 degree free rotation.

Features

Equipped with a high-magnification, high-numerical aperture microscope lens to provide high-resolution and clear fluorescence images.
Equipped with an autofocus system to ensure that the focal plane of the sample is maintained during long observations.

Standard configuration

Eyepiece:

category	Magnification	Field of view diameter
High eye point, large field of view, planar eyepiece	10X	Φ25mm

Objective:

category	Magnification	Numerical aperture	Working distance
Infinity plan semiapochromat fluorescence objective	3w	0.1NA	15.00mm
	10X	0.25NA	10.80mm
	20X	0.40NA	1.50mm
	40X	0.65NA	0.80mm
	100X	1.25NA	0.21mm

FAQ

QIs the price listed on the website the final cost for overseas purchases?

ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

QWhat is the specific process for purchasing the product?

AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

QWhat should I do if the instrument I purchase needs repair?

AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
