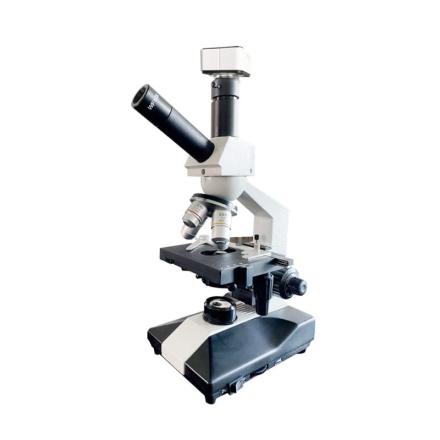

Specifications
| Mechanical barrel length | 160mm |
| magnification | 40X-1600X |
| condenser | N.A.1.25 Adjustable medium Abbe condenser with variable light bar |
| Color filter | Blue, yellow, green |
| Stage size | Mobile platform 125 × 110mm; moving range: 60 × 30mm, cursor: 0.1mm |
| Focusing mechanism | 12Mm coarse fretting coaxial focusing mechanism, fine-tuning grid value 0.002mm |
| Light source | Incandescent lamp, 220V/20W, Light source adjustable |
| Computer imagery system | ① Digital CMOS camera, 2 million pixels, with geometric measurement analysis software. (The software for point, line, circle and arc, straightness, roundness, area, etc.); ② C interface; ③ Computer self-purchase |
Packing list
host X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/44935/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
