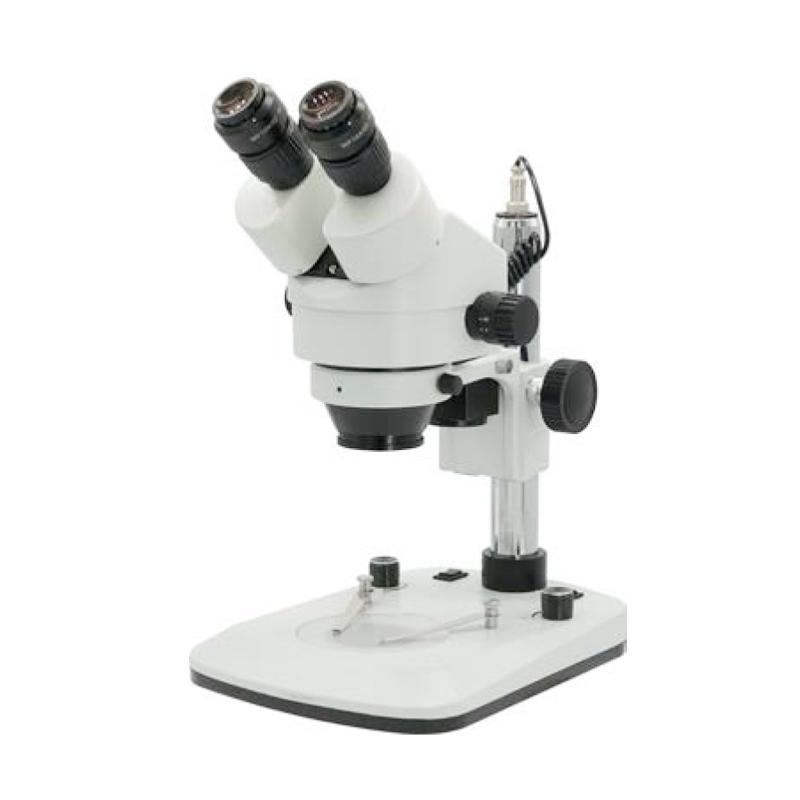

Varnishing XTZ-DA Continuous Diploidy Microscope Total Magnification 45X

XTZ-DA

Continuous Diploidy Microscope

Using electric light source, lighting can continuously adjust the luminance, hinged lens barrel 45 ° tilt, objective lens magnification 0.7-4. 5X, magnification 7-45X, distance 55mm-75mm, focusing bracket inner diameter 76mm, yellow and white light double light source independent control, continuous adjustable luminance.

Introduction

The XTZ-DA (7X-45X) binocular continuous zoom stereo microscope has a high-quality optical system and reliable and durable operationInstitutions. The model is larger than the old model, the working distance is long, the upper and lower lighting is LED lights, the clear range is large, the field of vision is uniform, widely used in agriculture, forestry, textile, geology, electronics, precision machinery, micro carving and other industries and departments, especially suitable for LED, PCB product inspection, stamping electroplating parts inspection, and electronic components inspection.

This instrument uses an electric light source, the illumination can be continuously adjusted brightness, and the hinged lens barrel is tilted at 45°. Mirror body zoom handwheel water on both sidesFlat setting, zoom flexible and comfortable, the lifting mechanism is a combination of dovetail guide rail and gear rack to form a focusing mechanism.

Features

• Smooth zoom: Continuous zoom microscopes allow users to make stepless adjustments with a smooth zoom system, rather than the need to switch between fixed magnifications as is the case with traditional microscopes.

• Stereo design: The specimen can be viewed directly through the eyepiece without the need for additional equipment or a computer.

• High resolution: Some continuous zoom microscopes may be equipped with a high-resolution imaging system to provide clear images.

Scope of application

• Biological research: It is used to observe biological samples such as cells and tissues to support biological research.

• Materials Science: Used to analyze and observe the microstructure of materials, applicable to the field of materials science.

• Education: Provide students with the tools to learn in academic and science labs.

Standard configuration

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
