HuiNuo TM1000 Automatic Film Applicator Bar Coater effective coating area 40 * 30cm

SE
Adopt new bar Installation method, Spreader accuracy of +/- 0.001mm, equipped with 3C certification full tempered Glass table heat resistance 600 ℃, support application length and speed free adjustment, touch screen control easy to operate.
$1470.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

HuiNuo TM1000 Automatic Film ApplicatorSPEC

HuiNuo TM1000 Automatic Film ApplicatorDetails

HuiNuo TM1000 Automatic Film ApplicatorPacking list

SKU
NB045089
Coating Method
Bar Spreader
Coating Speed
1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method
fixture
Coating table material
Aluminum alloy/Glass table (if the specified material is confirmed with customer service)
Coating table size
600*300mm
Effective coating Area
400 * 300Mm (can be customized)
Film thickness
Controlled by bar, with high-precision imported bar
Meyer rod coating Accuracy
±0.001mm
Power
400w
Operating language
Chinese (can be customized in English)
Display
Color LCD touch screen
Host Power Supply
100V~220V/50~60HZ
Dimension
658*438*205mm
Packaging Dimensions
515*770*560mm
Weight
39.7kg
Gross Weight
64kg
optional feature
Drawdown blade, heating, Vacuum chuck
TM1000
Automatic Film Applicator
Adopt new bar Installation method, Spreader accuracy of +/- 0.001mm, equipped with 3C certification full tempered Glass table heat resistance 600 ℃, support application length and speed free adjustment, touch screen control easy to operate.
HuiNuo TM1000 Automatic Film Applicator Bar Coater effective coating area 40 * 30cm Picture

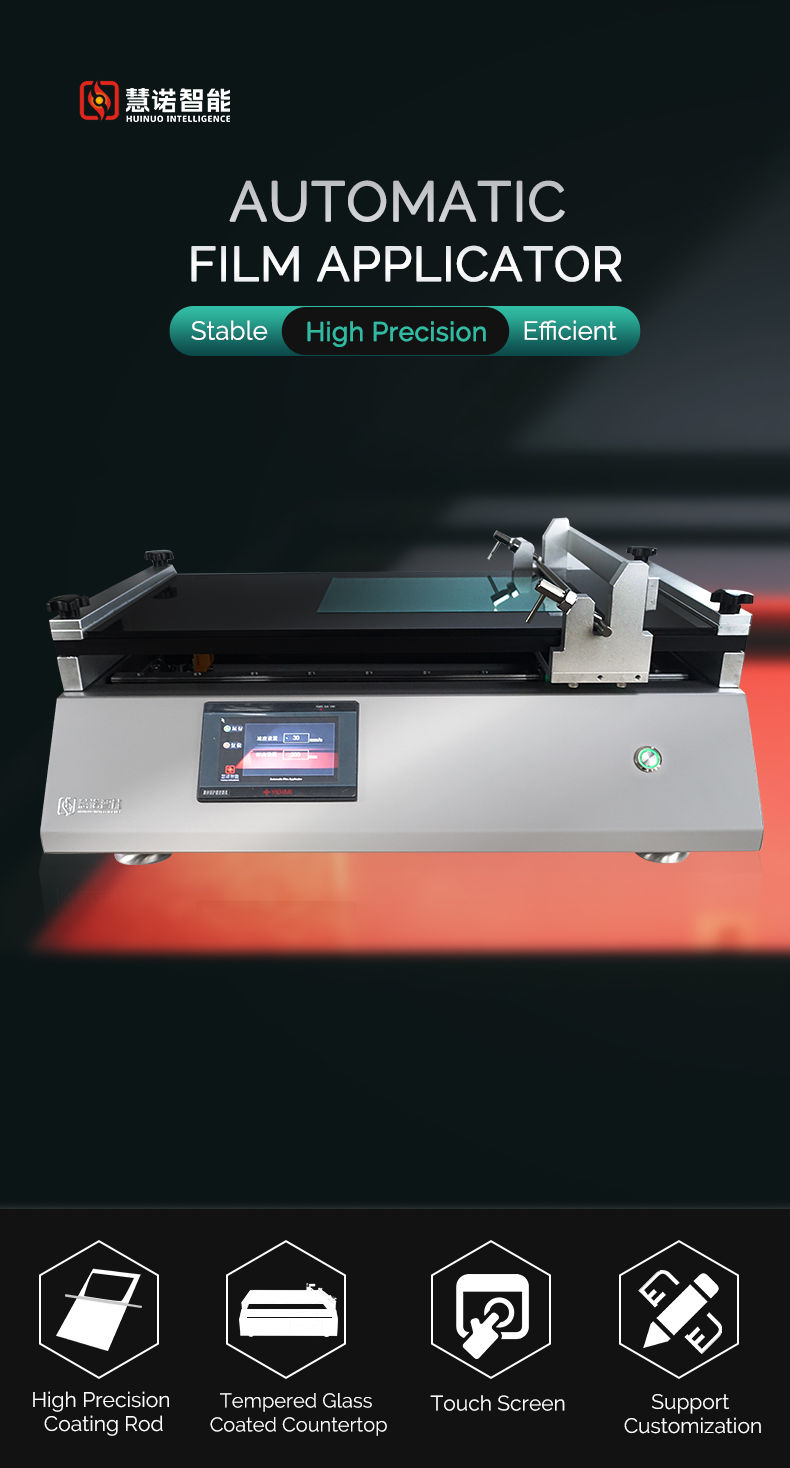

HUINUO TM1000 wire rod coater laboratory Automatic Film Applicator Figure 1

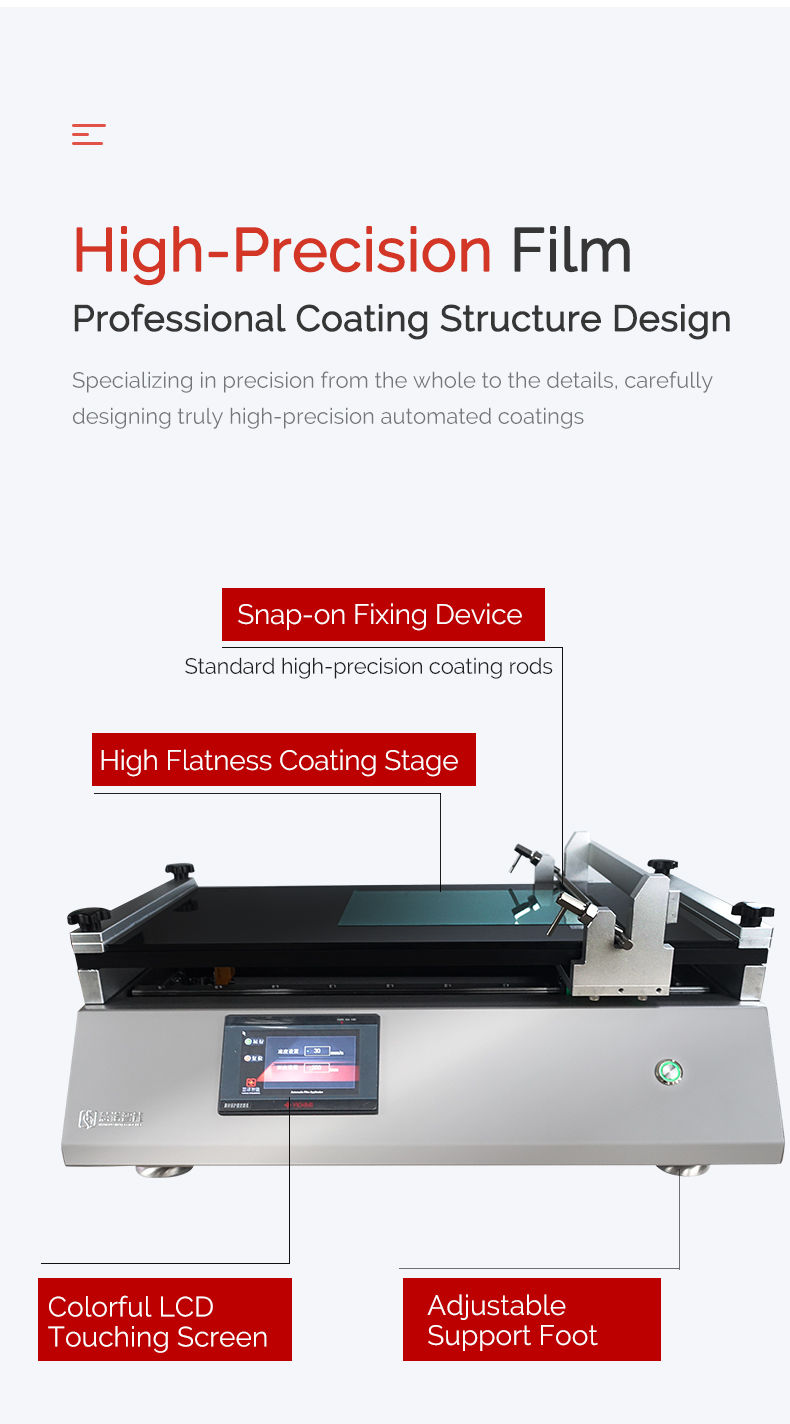

HUINUO TM1000 wire rod coater laboratory Automatic Film Applicator Figure 2

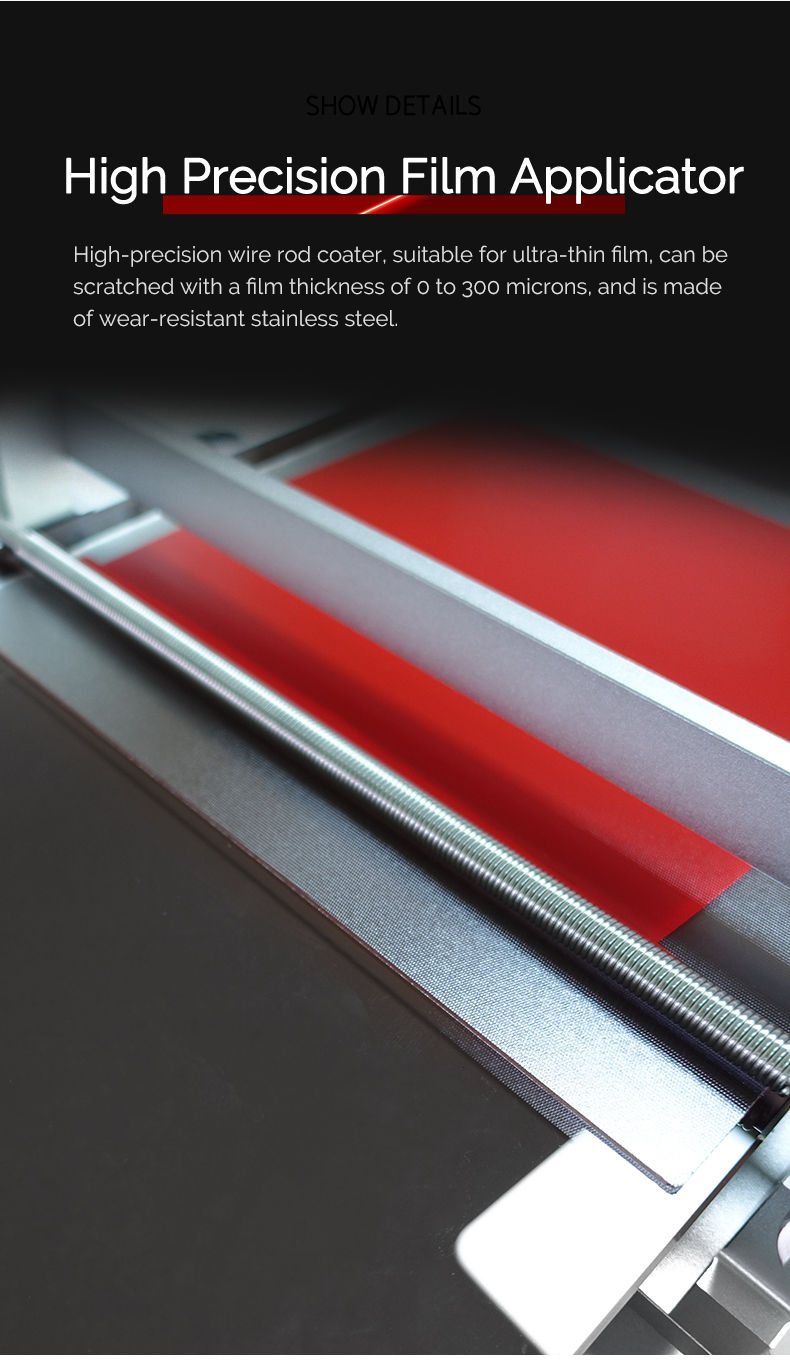

HUINUO TM1000 wire rod coater laboratory Automatic Film Applicator Figure 3

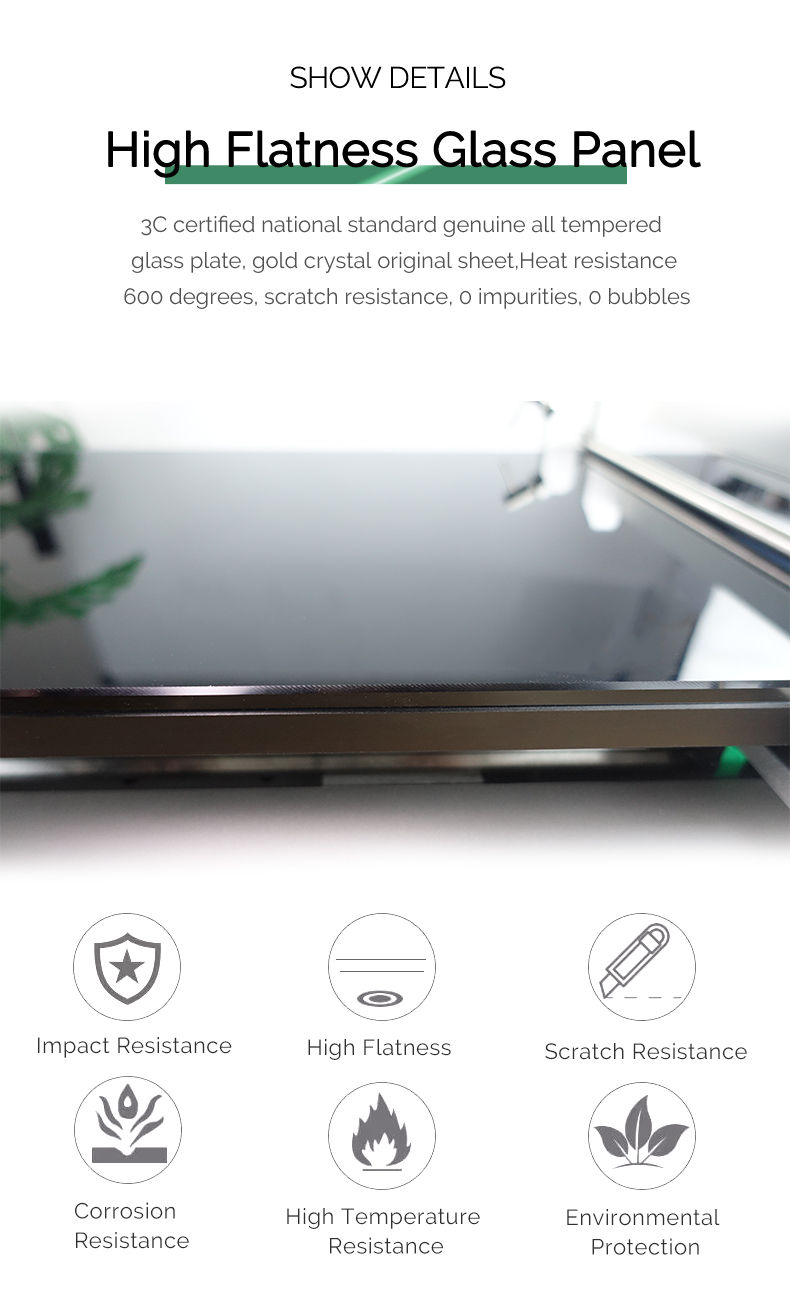

HUINUO TM1000 wire rod coater laboratory Automatic Film Applicator Figure 4

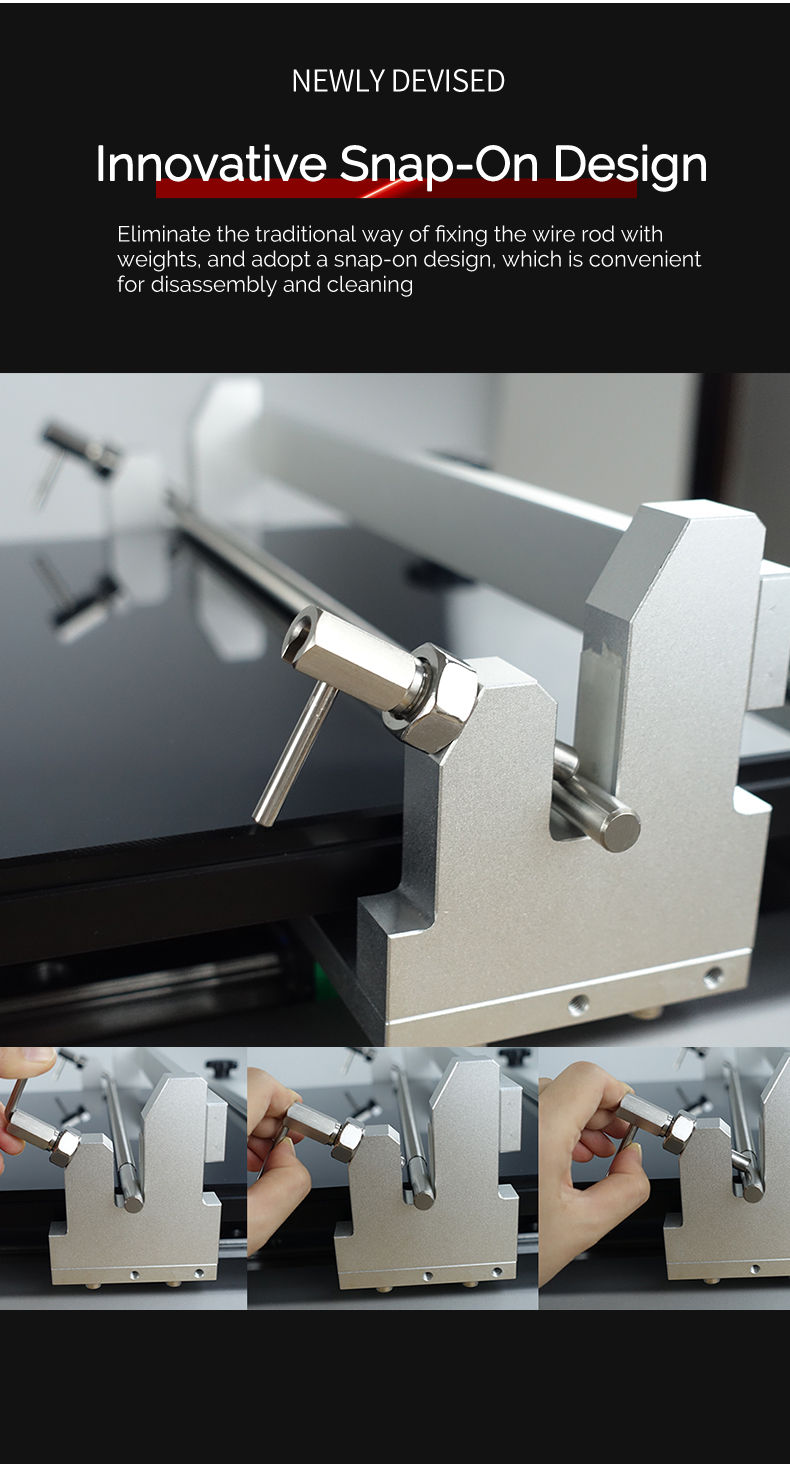

HUINUO TM1000 wire rod coater laboratory Automatic Film Applicator Figure 5

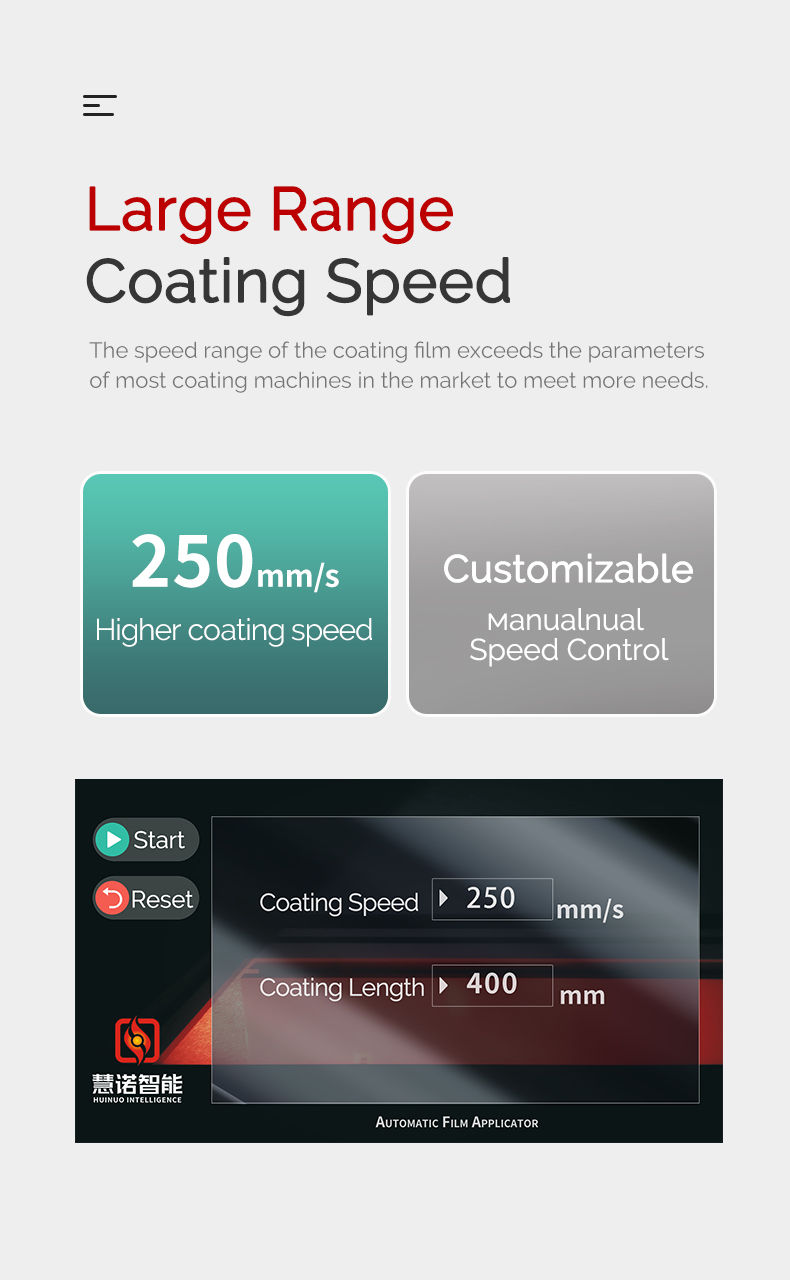

HUINUO TM1000 wire rod coater laboratory Automatic Film Applicator Figure 6

HUINUO TM1000 wire rod coater laboratory Automatic Film Applicator Figure 7

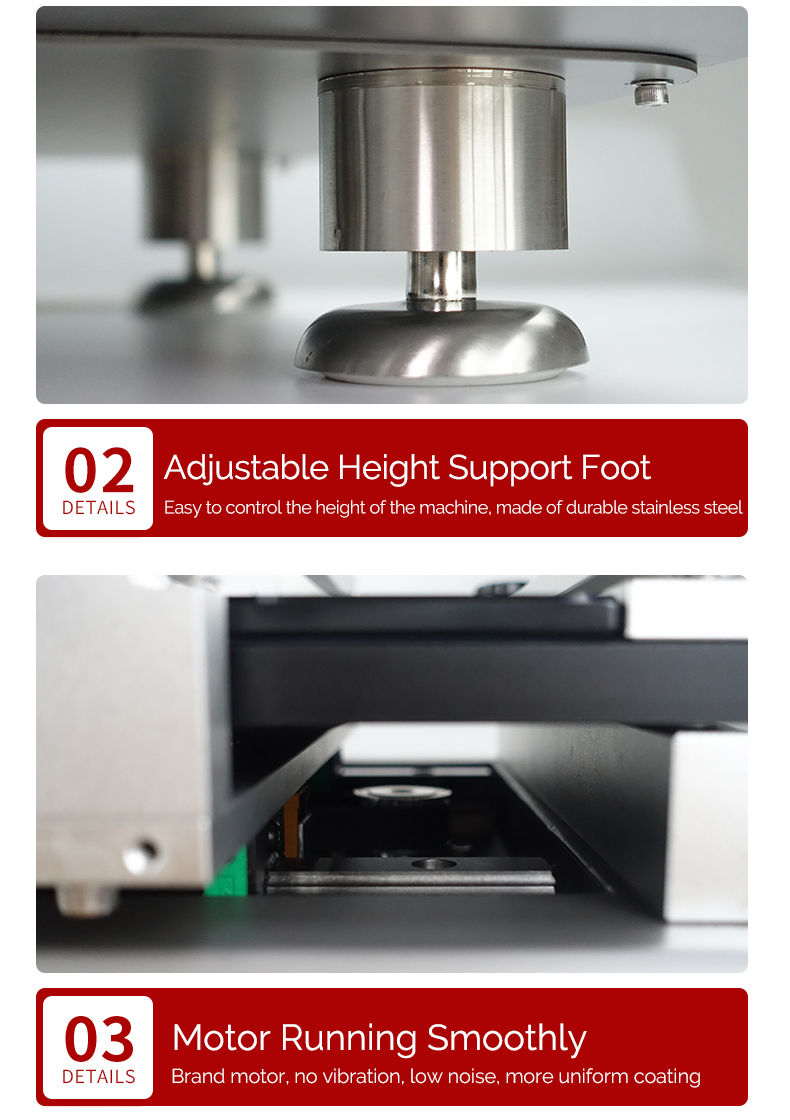

HUINUO TM1000 wire rod coater laboratory Automatic Film Applicator Figure 8

HUINUO TM1000 wire rod coater laboratory Automatic Film Applicator Figure 9

HUINUO TM1000 wire rod coater laboratory Automatic Film Applicator Figure 10

HUINUO TM1000 wire rod coater laboratory Automatic Film Applicator Figure 11

Introduction

The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The Principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.

This coating machine is a basic wire bar coating machine. It adopts a new wire bar installation method and has speed control and coating length adjustment functions. It is suitable for high-precision automatic coating in laboratories, and in university research institutes and new materials. , lithium battery and other laboratories for film production and proofing.

Application

The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, polymer materials, pharmaceuticals, etc. It can be applied on glass, cardboard, and cloth.

Features

1) The glass tabletop is a 3C certified national standard authentic fully tempered glass plate, original gold crystal, heat-resistant to 600℃, scratch-resistant and scratch-resistant

2) Equipped with a high-precision Film Applicator, the original imported wire rod can apply the film uniformly and with high precision

3) Aluminum alloy hard oxidation surface treated coated base plate, wear-resistant and flat, comes with flatness accuracy calibration certificate

4) Touch screen control panel, easy to operate

5) Coating length and coating speed can be adjusted freely

FAQ
QOur laboratory needs to film lithium battery paste. Is this TM1000 Automatic Film Applicator suitable?
A Suitable! TM1000 is specially designed for lithium battery laboratories. It adopts imported high-precision bar. Spreader uniformity can reach +/- 0.001mm, which can precisely control the thickness of pole pieces. And 1-300mm/s stepless speed regulation can flexibly match the needs of slurry Spreaders of different viscosities.
QHow to ensure the substrate Smoothness when making polymer film?
A Rest assured, this machine uses a 3C certified tempered Glass countertop, which is heat-resistant to 600 ° C and not easy to deform. With an aluminum alloy base, Smoothness is super high, which can avoid ripples or uneven thickness during film, especially suitable for film preparation with scientific research accuracy.
QBar Automatic Film Applicator applies solvent on paper, 10g per square meter, can it be scratched?
A Yes, but we need to see if the paper penetrates.
QIf the inks overflow into the suction hole, should you wipe it directly? This doesn't seem to be easy to wipe. How did you clean it?
A 1. Wipe with alcohol or corresponding solvent; 2. If the hole is blocked, use a needle no larger than 0.8mm to pass it through; 3. A small amount of residue can be aspirated through the vacuum pump. The front end of the vacuum pump has a certain ability to filtrate, but a large number of inks or solvents cannot enter
QTo choose a Film Applicator, apply glue on the fiber cloth, the fiber cloth has gaps, and the thickness is not thick, just soak it.
A Film Applicators can be scraped.
QWhat areas is this Film Applicator suitable for?
A The Film Applicator is suitable for university research institutes, New materials, lithium batteries and other laboratories for Moulding proofing, for coating, inks, paints, slurry, lithium batteries and other film sample preparation, can be in Glass, cardboard, fabric Spreader.
QHow thick can this minimum film be?
A 1 to 1.5 micron wet-film can be scraped.
QIs there any automatic film experimental equipment, hand scraping, uneven I am painting pigment, the problem I am encountering now is hand scraping, uneven. Acrylic emulsion
A It can be satisfied with a wire rod coater
QApply some waterproof and oil-proof additives on the Cardboard about 10um want to know about the automatic Spreader
A You can find out about this wire rod type Film Applicator.
QAre the two ends of the Automatic Film Applicator a fixture?
A Yes, the clamp with spring is easy to hold and can be used to fix the substrate.
