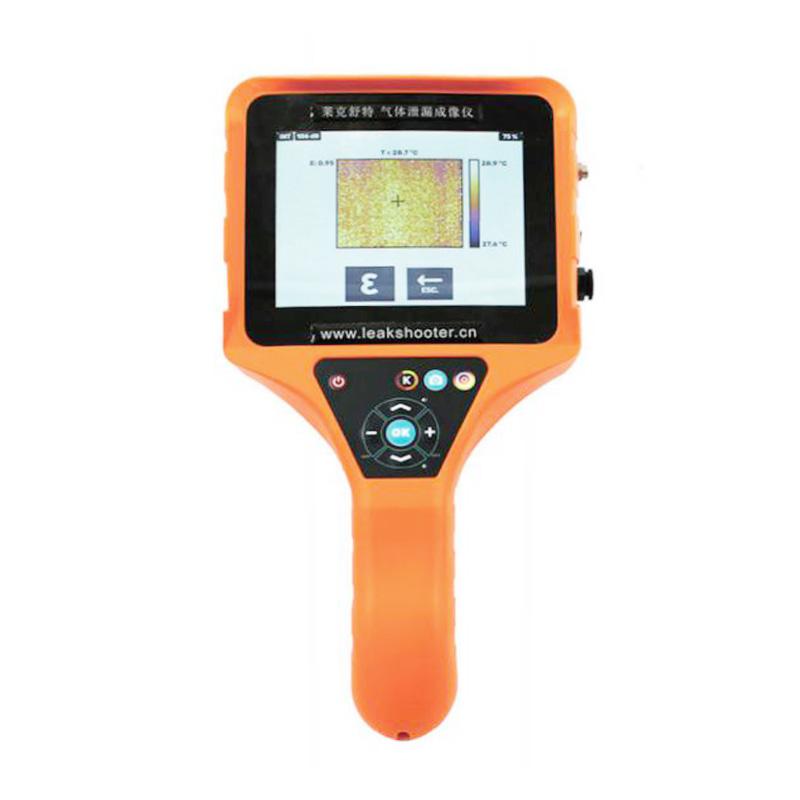

IPRE PR600 visual gas leak imagery Detector

PR600

Visual gas leak imagery Detector

Sensors with adjustable gain 40 to 106dB; bandwidth +/- 2kHz to -6dB; Center Frequency: 40kHz +/- 1kHz; Mixer 30 to 50kHz Adjustable Frequency.

Introduction

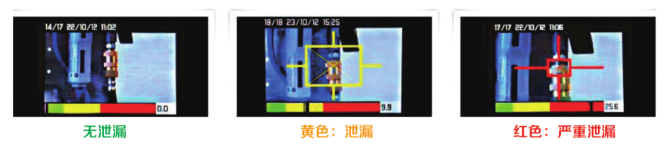

The gas leak imager is also called an ultrasonic gas wave leak Detector. During the mobile scanning process, after detecting a leak signal, a leak point frame will be displayed on the large color LCD. The leakage source on the LCD is a yellow (indicating a small leakage, weak signal) or red (indicating a large leakage, strong signal) real-time visible image. At the same time, the horizontal light beams at the bottom of the LCD come out in different colors and specific leakage amounts.

Features

• The visualization system can take pictures of leak points and store them on a PC for analysis;

• Can detect any gas leak detection, leak detection of compressed air, oxygen, nitrogen and steam systems;

• Vacuum system negative pressure leakage/valve internal leakage detection/heat exchanger/boiler/condenser leakage detection;

• Air tightness/sealing, pressure vessels and environments that require sealing (for example: trains/airplanes/aviation equipment/submarines/cars, etc.);

• Detection of predictive maintenance of defective bearings/gearboxes in the mechanical field;

• Temperature detection/steam trap leakage detection/mechanical damage auscultation function;

• The center detection frequency of the high-precision sensor is 42KHZ, adjustable from 40 dB to 106 dB.

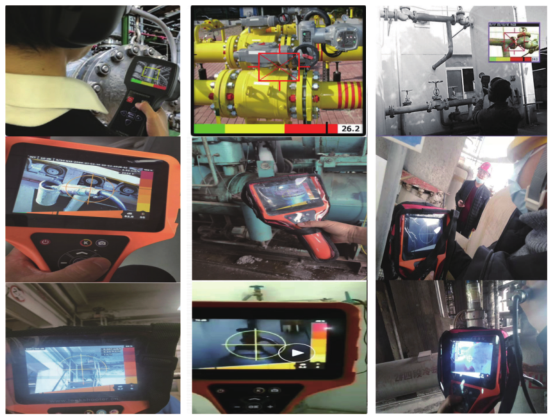

Applications

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
