Specifications

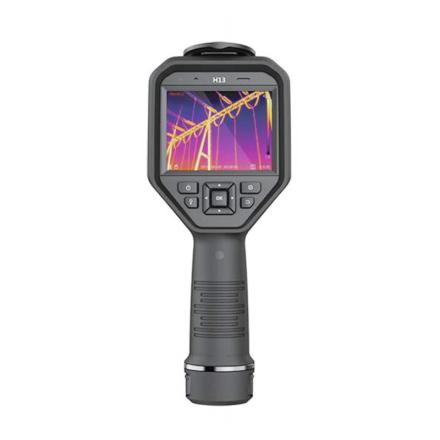

| Product model | H13 |
| Detector type | Uncooled Detector |
| Detector resolution | 160 x 120 |
| Response band | 8-14μm |
| IFOV | 5.48mrad |
| NETD (Noise Equivalent Temperature Difference) | <70mk(@25″ C.F#=1.0) |
| Minimum measurement distance | 0.15m |
| Field of view | 50°x37.2° |
| aperture | / |
| Numerical zoom | 1X、2X、4X |
| Accuracy | +/- 2 ″ C or +/- 2%, MAX Maximum |
| Temperature Measurement Range | -20℃~350℃ |
| Maximum image size | 800W |
| Picture resolution | 1600 x 1200 |
| Video resolution | 1600 x 1200 |
| frame rate | 25Hz |
| display | 3.5 ″ LCD capacitive touch screen 640 * 480 |
| image mode | Support 7 pseudo-color modes such as white hot and iron red |
| screen display mode | Thermal imagery |
| Laser pointer | Not supported |
| storage | 16G |
| take a picture | Thermal imagery |
| video recording | Thermal imagery |
| Heiming | Not supported |
| WIFI | Not supported |
| Text annotation | support |
| phonetic annotation | Support (60S) |
| interface language | Chinese/English |
| Battery type | Li-ion battery |
| Working time of battery | 5h, can be replaced on site, can be charged |
| Hardware Interface | TYPE-C |
| Operating temperature | -10℃~-50℃ |
| fall | 2m |
| Protection level | IP54 |
| Dimension | 244 mm x 100 mm x 104 mm |
| Weight | 630g |
Packing list
After-sales instructions
None
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/45096/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
