IPRE HV1000 microscope durometer magnification 400X

The hardness testing range is 8~ 2900HV, the minimum test unit is 0.5μm, and the test Microscope magnification is 400X. It is a commonly used hardness testing instrument for R & D institutions, Universities & colleges, production enterprises and testing institutions to conduct research and testing.
Model：
Certificate
Contact
Details SPEC

Ipre HV1000 Microscopic durometerSPEC

Ipre HV1000 Microscopic durometerDetails

Ipre HV1000 Microscopic durometerPacking list

SKU
NB045102
function
basic
test force
10gf (0.098N)、25gf (0.245N)、50gf(0.49N)、100gf(0.98N)、200gf(1.96N)、300gf(2.94N)、500gf(4.9N)、1kgf(9.8N)
Minimum test unit
0.5μm
Conversion Ruler
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
Hardness testing range
8~2900HV
Test force application method
Automatic (loading, retaining, unloading)
Test Microscope Magnification
400X (test), 100X (observation)
Display
Small LCD display
Test force holding time
0~60s
X-Y test stand
Size: 100mmx100mm Maximum Movement: 25mmx25mm
Objective lens, indenter conversion
manual
DI and D2 inputs
manual
Data output
LCD display readout
Maximum height of specimen
80mm
Distance from the center of the indenter to the outer wall
95mm
Host Weight
25Kg
Power
AC220V+5%，50-60Hz
Dimensions
405mmx290mmx480mm
HV1000
Microscopic durometer
The hardness testing range is 8~ 2900HV, the minimum test unit is 0.5μm, and the test Microscope magnification is 400X. It is a commonly used hardness testing instrument for R & D institutions, Universities & colleges, production enterprises and testing institutions to conduct research and testing.

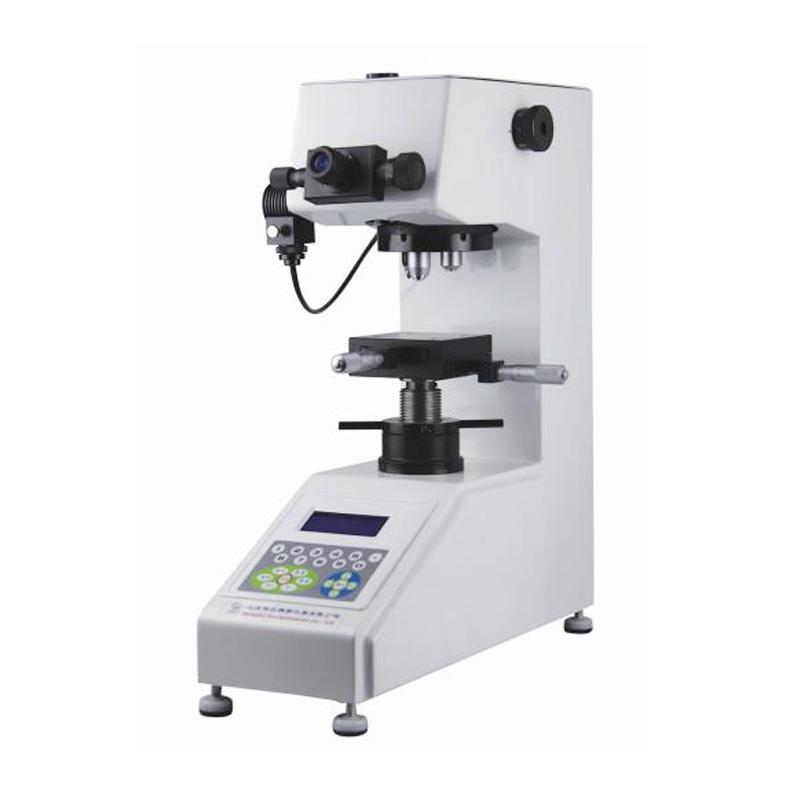

IPRE HV1000 microscope durometer magnification 400X Picture

Features

  • The industrial LCD displays the material hardness value and various converted hardness values, diagonal length, test method, test force, dwell time, number of measurements, ambient temperature, highest test value, lowest test value, average value, repeatability, etc. , the test process is intuitive and clear;

  • The built-in printer can record the number of measurements, hardness value, average value, maximum value, minimum value, range and other data;

  • Vickers hardness and Knoop hardness tests can be performed;

  • The connection software can measure the thickness of the carburized layer and the hardened layer;

  • It can also be connected to the computer through the RS232 interface;

Application scope

It is suitable for measuring small and thin specimens and parts after surface penetration treatment. It can measure the micro-Vickers and Knoop hardness of brittle materials such as agate, glass, and ceramics. It is an ideal instrument for scientific research institutions, universities, and production enterprises. Conduct research and test commonly used hardness testing instruments with testing agencies.
