IPRE HV1000MD microscope durometer test range 8~ 2900HV

Hardness testing range 8~ 2900HV, minimum test unit 0.031μm, test Microscope magnification 400X, large LCD display (7 inches), suitable for the measurement of micro-Vickers and Knoop hardness of brittle materials such as small and thin specimens.
Model：
Certificate
Contact
Details SPEC

Ipre HV1000MD Microscopic durometerSPEC

Ipre HV1000MD Microscopic durometerDetails

Ipre HV1000MD Microscopic durometerPacking list

SKU
NB045103
function
digital display
test force
10gf (0.098N)、25gf (0.245N)、50gf(0.49N)、100gf(0.98N)、200gf(1.96N)、300gf(2.94N)、500gf(4.9N)、1kgf(9.8N)
Minimum test unit
0.031μm
Conversion Ruler
HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
Hardness testing range
8~2900HV
Test force application method
Automatic (loading, retaining, unloading)
Test Microscope Magnification
400X (test), 100X (observation)
Display
Large LCD display (7 inches)
Test force holding time
0~60s
X-Y test stand
Size: 100mmx100mm Maximum Movement: 25mmx25mm
Objective lens, indenter conversion
automatic
DI and D2 inputs
automatic
Data output
LCD display readout, built-in printer and RS-232 interface
Maximum height of specimen
80mm
Distance from the center of the indenter to the outer wall
95mm
Host Weight
25Kg
Power
AC220V+5%，50-60Hz
Dimensions
405mmx290mmx480mm
HV1000MD
Microscopic durometer
Hardness testing range 8~ 2900HV, minimum test unit 0.031μm, test Microscope magnification 400X, large LCD display (7 inches), suitable for the measurement of micro-Vickers and Knoop hardness of brittle materials such as small and thin specimens.

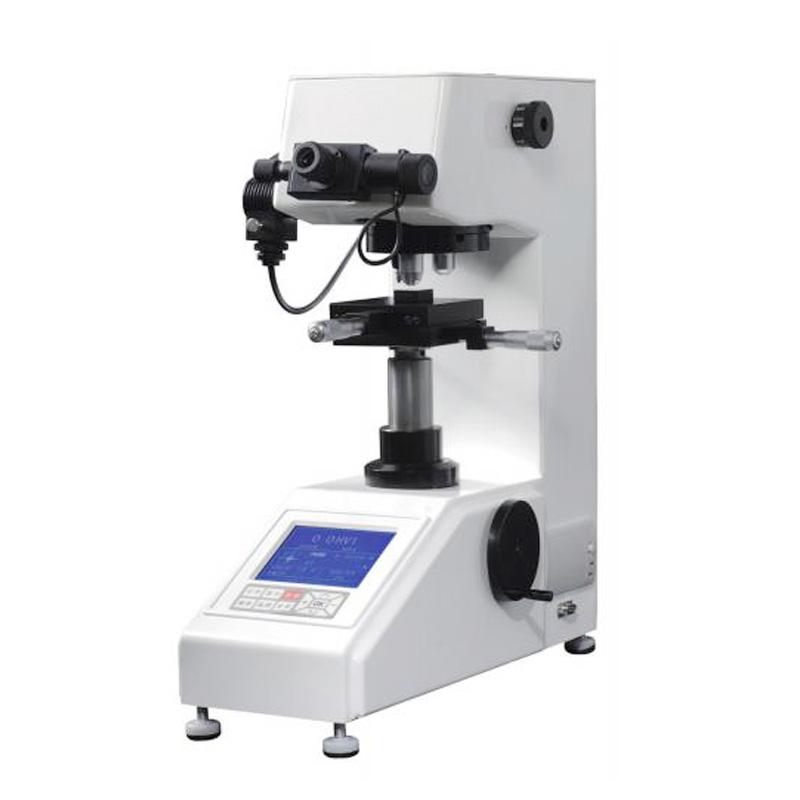

IPRE HV1000MD microscope durometer test range 8~ 2900HV Picture

Features

  • The industrial LCD displays the material hardness value and various converted hardness values, diagonal length, test method, test force, dwell time, number of measurements, ambient temperature, highest test value, lowest test value, average value, repeatability, etc. , the test process is intuitive and clear;

  • The built-in printer can record the number of measurements, hardness value, average value, maximum value, minimum value, range and other data;

  • Vickers hardness and Knoop hardness tests can be performed;

  • The connection software can measure the thickness of the carburized layer and the hardened layer;

  • It can also be connected to the computer through the RS232 interface;

Application scope

It is suitable for measuring small and thin specimens and parts after surface penetration treatment. It can measure the micro-Vickers and Knoop hardness of brittle materials such as agate, glass, and ceramics. It is an ideal instrument for scientific research institutions, universities, and production enterprises. Conduct research and test commonly used hardness testing instruments with testing agencies.


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
