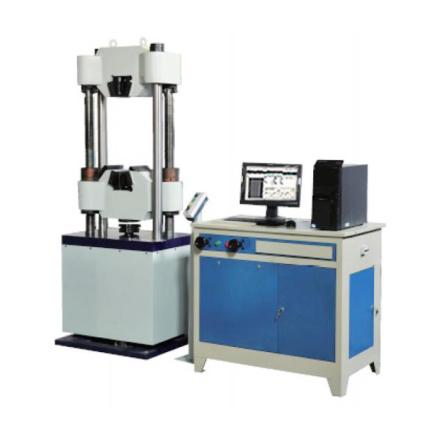

Ipre WAW1000D Microcomputer-controlled electro-hydraulic servo hydraulic universal testing machine Specifications
Search
Brand：Ipre
Model：WAW1000D
Name：Microcomputer-controlled electro-hydraulic servo hydraulic universal testing machine
Specifications
| Maximum test force | 1000KN |
| Force range | 2% to 100% (or 1% to 100%) |
| Test force indication relative error | Better than indication +/- 1 %(≤ +/- 0.5%) |
| Deformation Accuracy | +/- 1% (or +/- 0.5%) |
| stretch space | 600mm |
| compressed space | ≥500mm |
| clamping method | Manual clamping/automatic clamping |
| Circular specimen clamping diameter | φ13mm-φ40mm |
| Flat specimen clamping thickness | 0-30mm |
| Shear sample diameter | —— |
| Upper and lower platen size | —— |
| Maximum distance between bending fulcrums | optional |
| Oil Pump Motor Power | 1.5KW |
| Transverse beam up and down motor Power | 0.5KW |
| Deformation measurement device | extensometer |
| Safety protection device | Software protection and mechanical limit protection |
| Net Weight | 3500 |
| Fixture form | According to customer requirements, suitable fixtures can be configured, and special fixtures can be customized according to customer requirements. |
