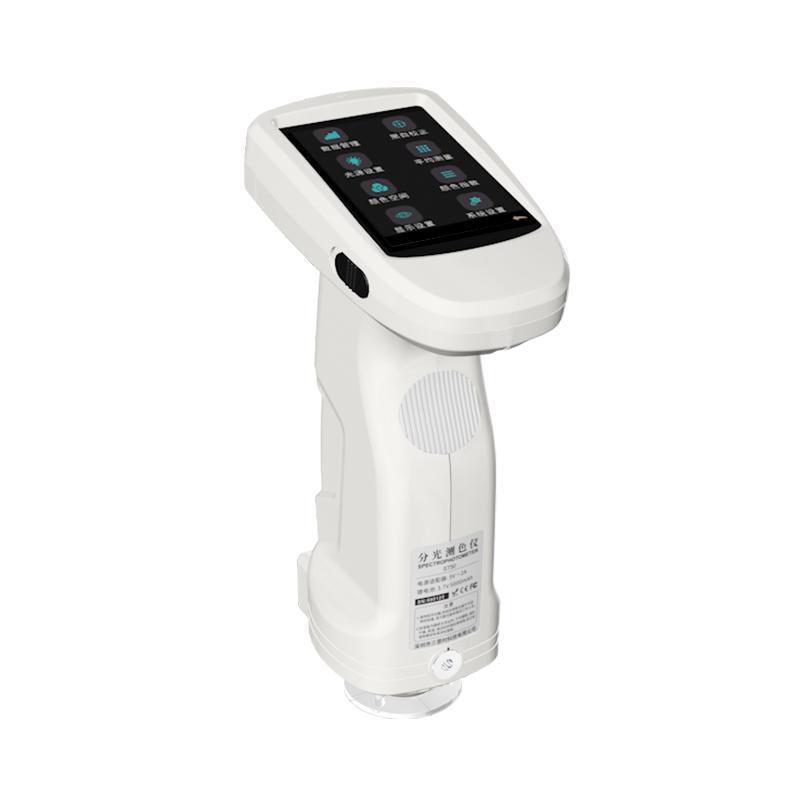

3NH NBC60 Colorimeter 8mm/4mm
NBC60
HuiNuo NBC60 ColorimeterSPEC
HuiNuo NBC60 ColorimeterDetails
HuiNuo NBC60 ColorimeterPacking list
- SKU
- NB045117
- Lighting method
- D/8 (diffuse illumination, 8 ° direction reception) SCI/SCE measurement; exclude UV measurement in accordance with CIE No. 15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7
- Integrating sphere size
- Φ40mm
- Light source
- Light spectrum LED Light source, UV Light source
- spectroscopy
- Plane grating spectroscopy
- Sensor
- Large Area Silicon Photodiode Array (Double Row 26 Group)
- Measurement Wavelength range
- 400~700nm
- wavelength interval
- 10nm
- Reflectance Measurement Range
- 0~200%
- Measurement caliber
- Four caliber: MAV: φ 8mm/φ 10mm; SAV: φ 4mm/φ 5mm
- Light-containing method
- Simultaneous testing of SCI/SCE
- Color space
- CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,Munsell(C/2)
- Color difference formula
- ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
- Other chroma metrics
- Light spectrum reflectance, WI (ASTM E313, CIE/ISO, AATCC, Hunter, TaubeBergerStensby), YI (ASTM D1925, ASTM 313), homochromatic index Mt
- Viewing Angle
- CIE 2°/10°
- Available Light Sources
- D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF,ID50,ID65
- display mode
- Light spectrum plots/data, sample chromatic values, color difference values/plots, pass/fail results, Color simulation, Color bias
- Measurement time
- About 1.5s
- Repeatability
- Chromatic value: MAV/SCI, Delta E * ab within 0.025 (after preheating correction, the average value of 30 whiteboard measurements at intervals of 5s) Spectroscopic reflectance: MAV/SCI, standard deviation within 0.08% (400~700nm: within 0.18%):
- stand-alone difference
- ΔE*ab<0.15(MAV/SCI)
- Display Accuracy
- 0.01
- Measurement mode
- Single measurement, average measurement (2~ 99 times)
- positioning method

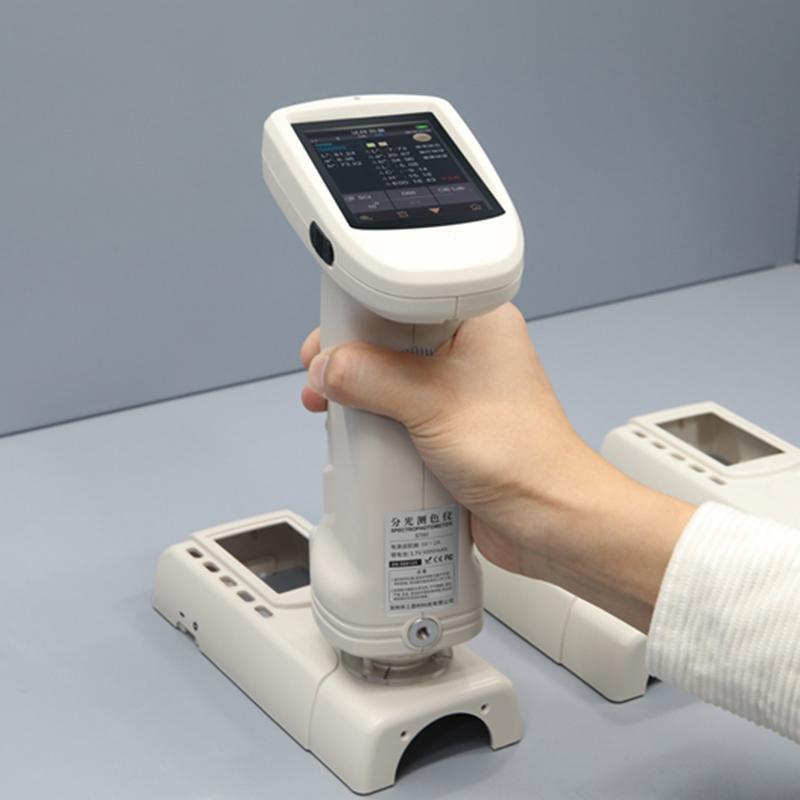

- Camera positioning, stabilizer positioning
- Dimension
- 129*76*217mm
- Weight
- Approx. 600g
- Battery life
- Lithium battery, 3.7V, 5000mAh, 8800 cycles in 8 hours
- Light source lifetime
- More than 1.50 million measurements in 10 years
- Display
- TFT true color 3.5inch, capacitive touch screen
- Interface
- USB, Bluetooth ® 5.0
- data storage
- 1000 master standards, 20,000 samples (one data can include SCI/SCE at the same time), APP/PC Mass storage
- Software support
- Android, IOS, Windows, WeChat Mini Program, Hongmeng
- Operating language
- Simplified Chinese, English, Traditional Chinese
- Operating environment
- 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m
- Storage environment
- -20~50 ℃, 0~85% RH (no condensation)
- Optional Accessories
- Micro printer, powder test box
- Observational Light source 2
- LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2, LED-C2, LED-C3, LED-C5, Customizable Light sources (41 Light sources in total, partially realized through PC/APP)
- Other chroma metrics 2
- Dip colour fastness, discoloration fastness, force (dyestuff strength, tinting strength), 8 degrees Glossiness, 555 shade classification,
- Other chroma metrics 3
- Blackness (My, dM), CMYK (A, T, E, M), Tint, Color density, Moncel (some functions are realized through the host computer)
Introduction
The twin sister of the 3nh TS series, the "Kutai" ST series, is grandly launched, inheriting the core technology of large-area array sensors and grating spectroscopy in the field of color detection, and keenly analyzing the intensity and weakness of light in the 300-1100nm band.
Spectrophotometer NBC60 is a Spectrophotometer developed by 3nh using Thai dual core technology spectrometer, which adopts built-in photodiode array (double row 26 groups) sensor and imported whiteboard, while taking into account the measurement speed and convenience of operation. The repeatability of ST60 Spectrophotometer ΔE*ab is easily controlled within 0.025, and the inter-stage difference ΔE*ab is controlled within 0.15, which is accurate in measurement, and the test data can be used for accurate analysis and transmission of color in the laboratory.
Applications

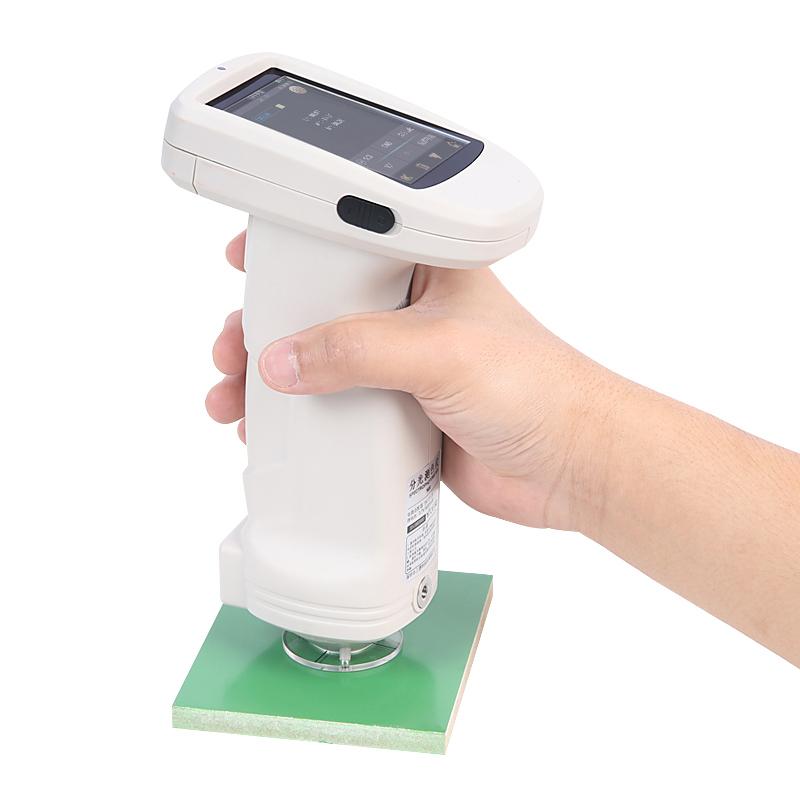

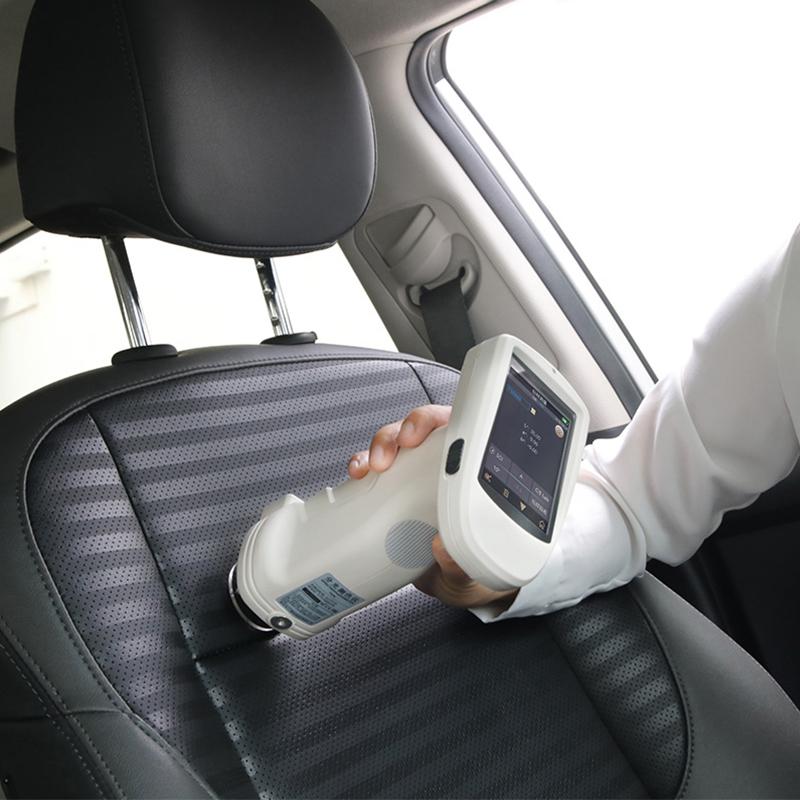

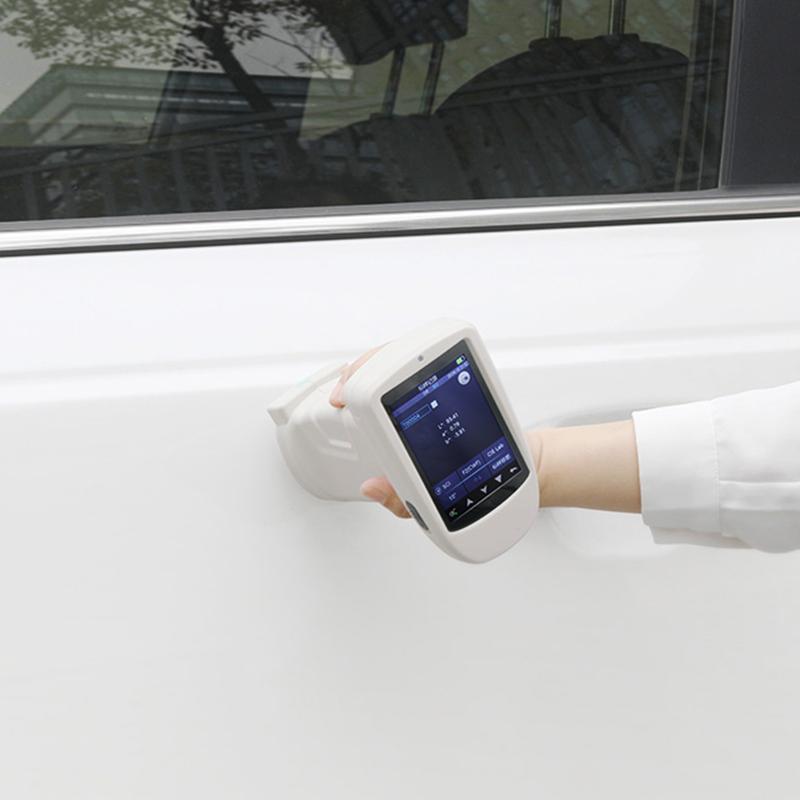

Equipped with 4 measuring apertures, the Cooltech Spectrophotometer NBC60 is equipped with a wider range of measurement apertures, accurate color measurement and stable performance, which is used for accurate color measurement and quality control in plastics, electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries, and can be used for fluorescence sample measurement.
