HUINUO TM1000 High-precision Wire Bar Film Applicator with 3 imported wire rods

SE
Standard 3 high-precision imported Mayer Rods, wire rod Spreader, easy wire rod replacement, film accuracy up to 1 micron, tempered Glass baseplate, wear resistance, scratch resistance and heat resistance.
$1625.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

HuiNuo TM1000 Automatic Film ApplicatorSPEC

HuiNuo TM1000 Automatic Film ApplicatorDetails

HuiNuo TM1000 Automatic Film ApplicatorPacking list

SKU
NB045124
Coating method
Rod
Coating speed
1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method
fixture
Coating table material
Glass plate
Coating table size
600*300mm
Effective coating Area
400 * 300Mm (can be customized)
Film thickness
Controlled by bar, with high-precision imported bar
Film Accuracy
±0.001mm
Power
400w
Operating language
Chinese (can be customized in English)
Display
Color LCD touch screen
Host Power Supply
100V~220V/50~60HZ
Dimension
658*438*205mm（L*W*H）
Packaging Dimensions
515*770*560mm
Weight
39.7kg
Gross Weight
64kg
optional feature
Drawdown blade, heating, vacuum adsorption
TM1000
Automatic Film Applicator
Standard 3 high-precision imported Mayer Rods, wire rod Spreader, easy wire rod replacement, film accuracy up to 1 micron, tempered Glass baseplate, wear resistance, scratch resistance and heat resistance.
HUINUO TM1000 High-precision Wire Bar Film Applicator with 3 imported wire rods Picture

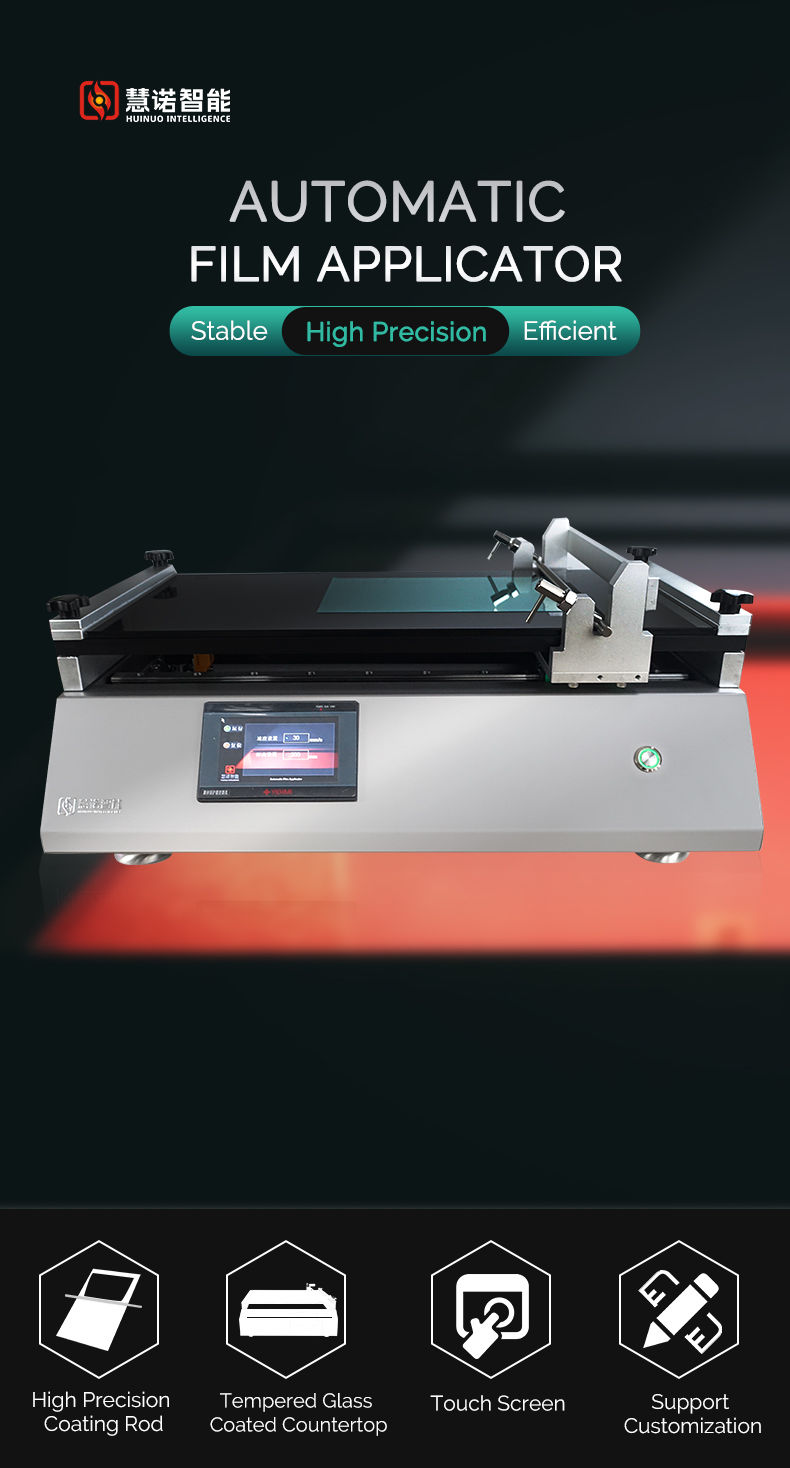

HUINUO TM1000 high-precision wire-rod Film Applicator with 3 imported wire rods Figure 1

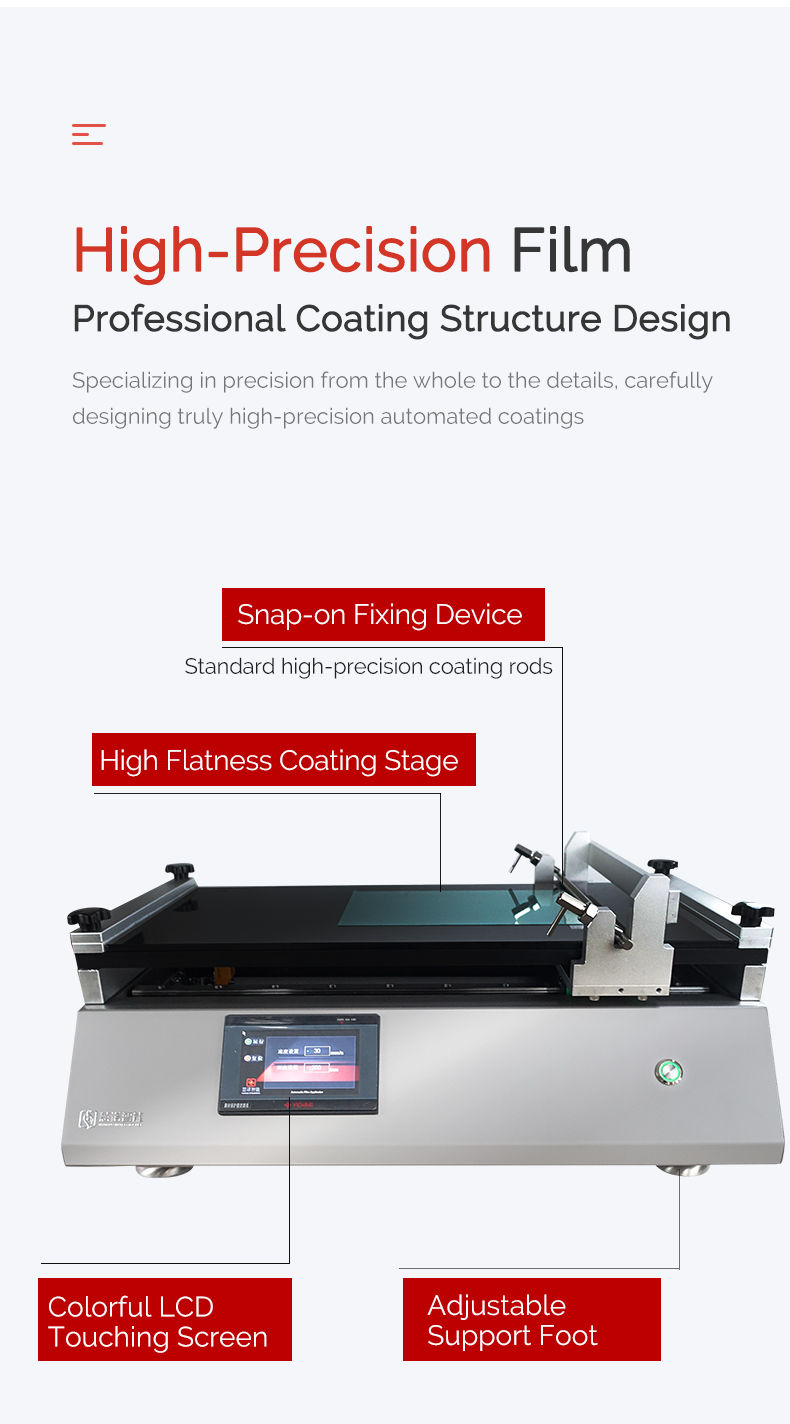

HUINUO TM1000 high-precision wire-rod Film Applicator with 3 imported wire rods Figure 2

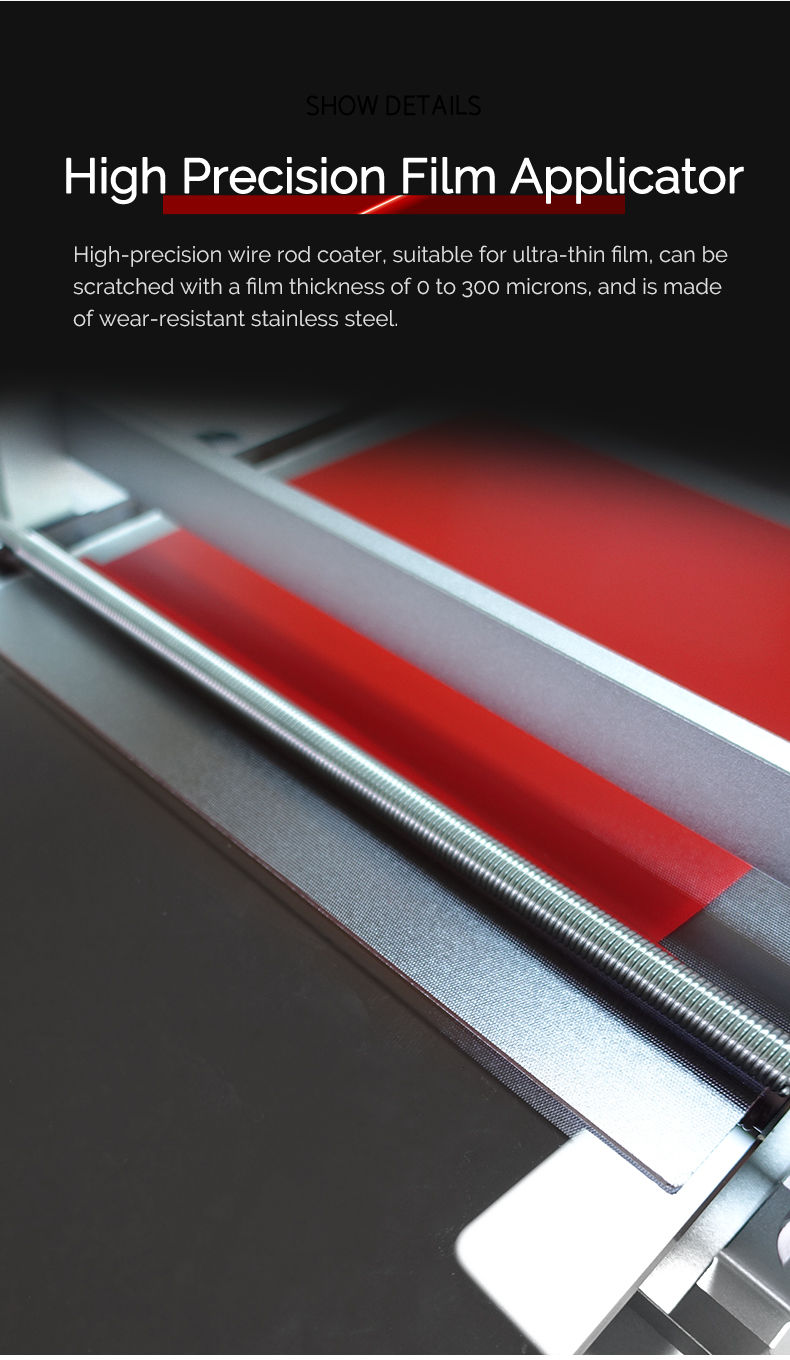

HUINUO TM1000 high-precision wire-rod Film Applicator with 3 imported wire rods Figure 3

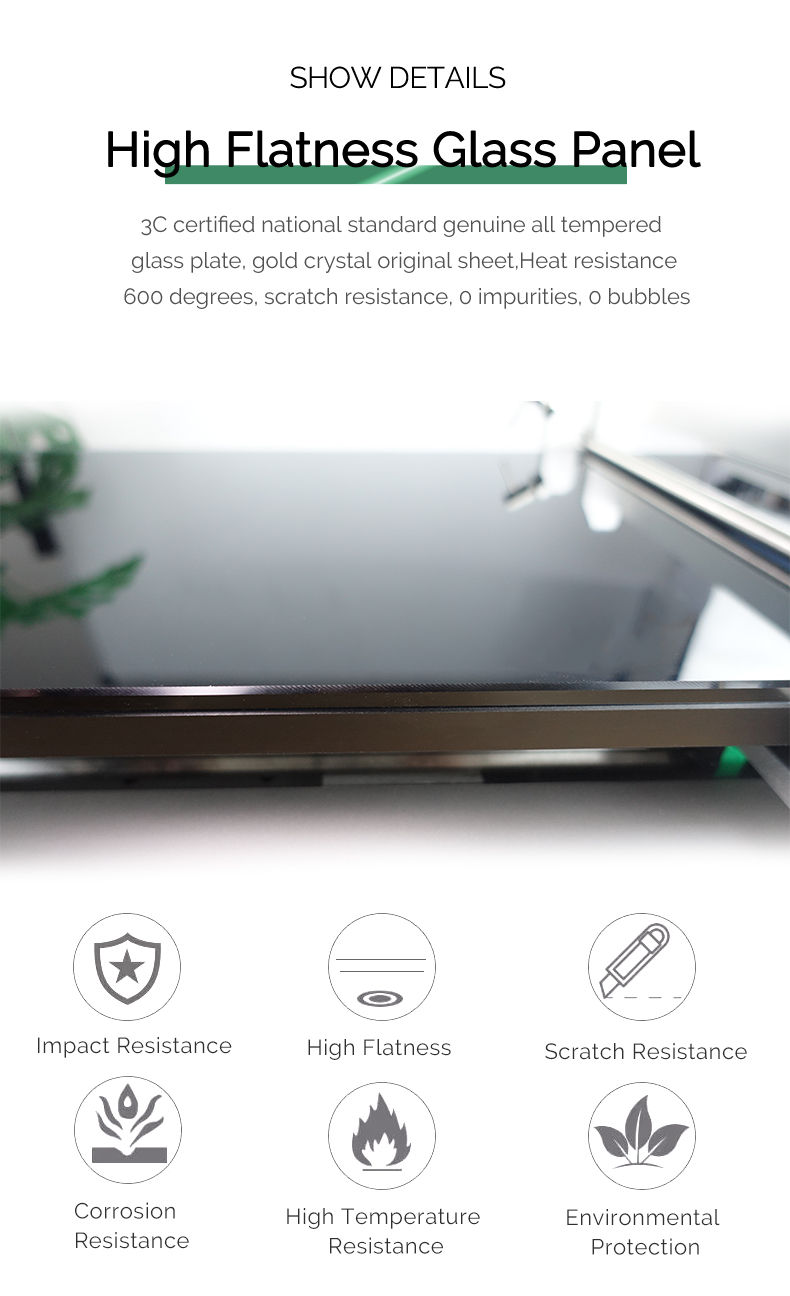

HUINUO TM1000 high-precision wire-rod Film Applicator with 3 imported wire rods Figure 4

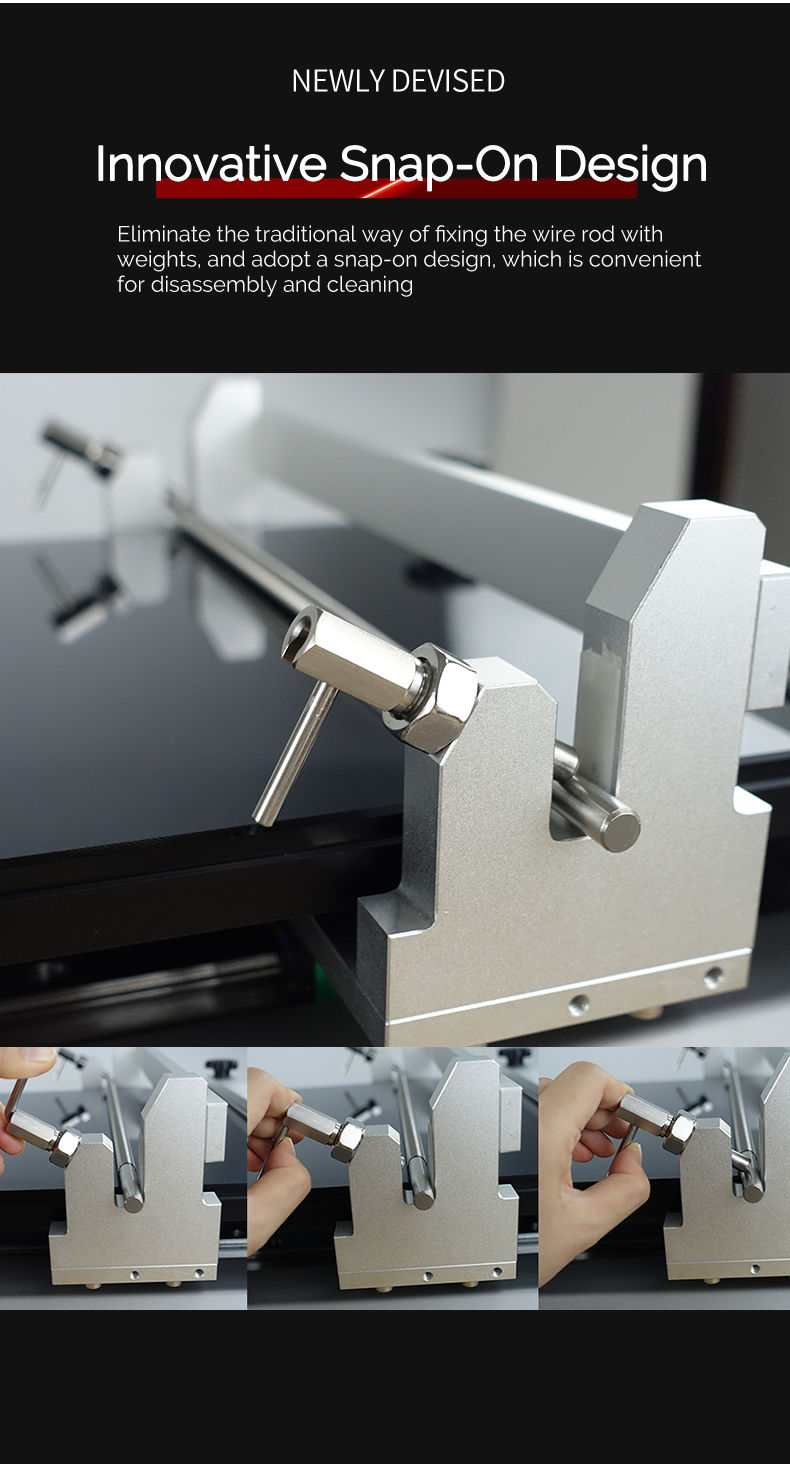

HUINUO TM1000 high-precision wire-rod Film Applicator with 3 imported wire rods Figure 5

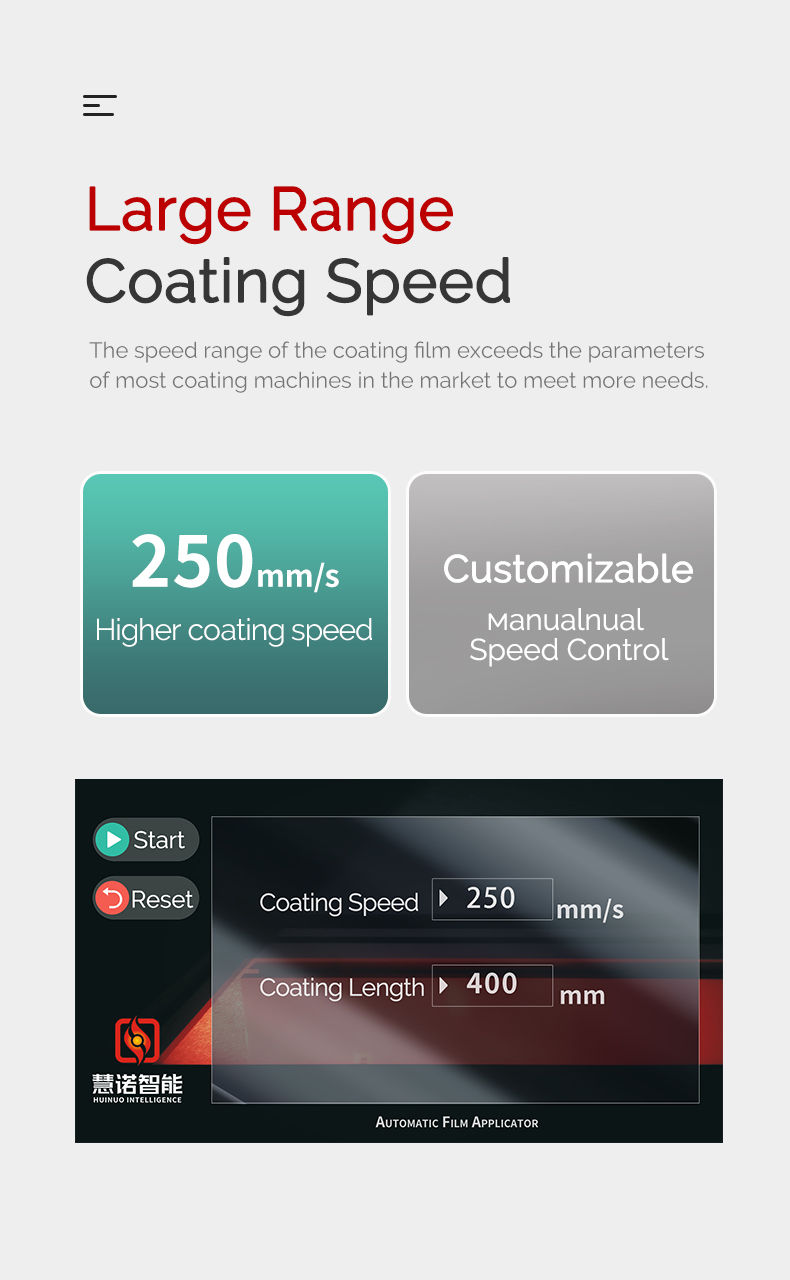

HUINUO TM1000 high-precision wire-rod Film Applicator with 3 imported wire rods Figure 6

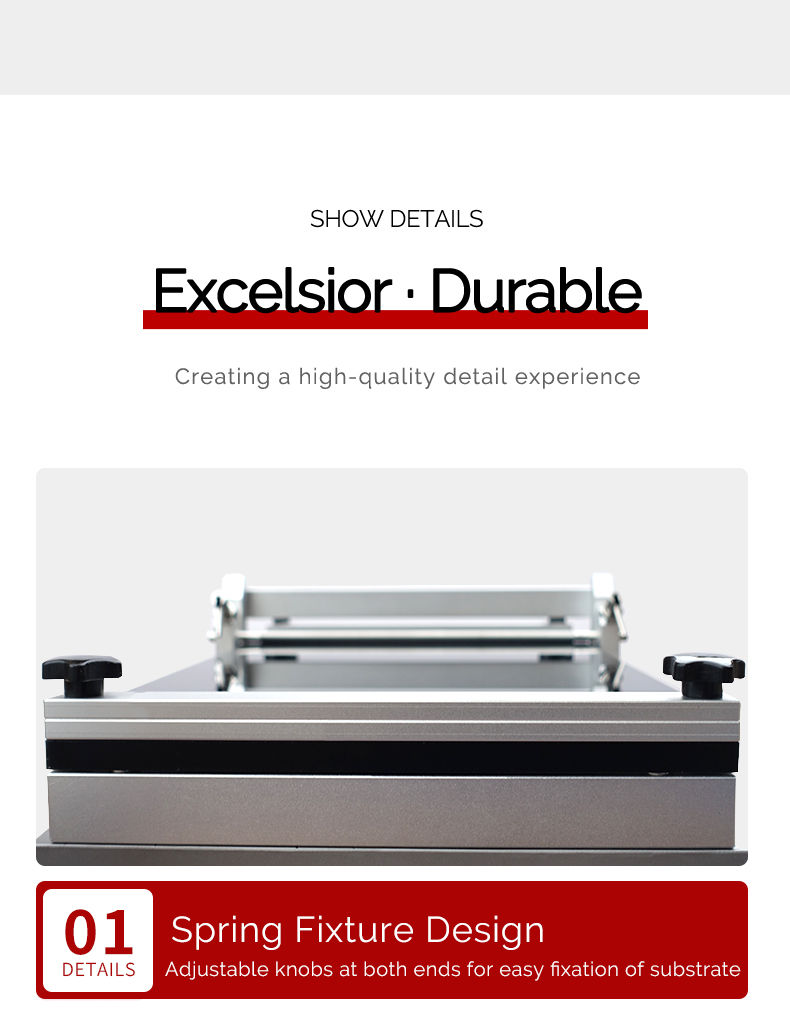

HUINUO TM1000 high-precision wire-rod Film Applicator with 3 imported wire rods Figure 7

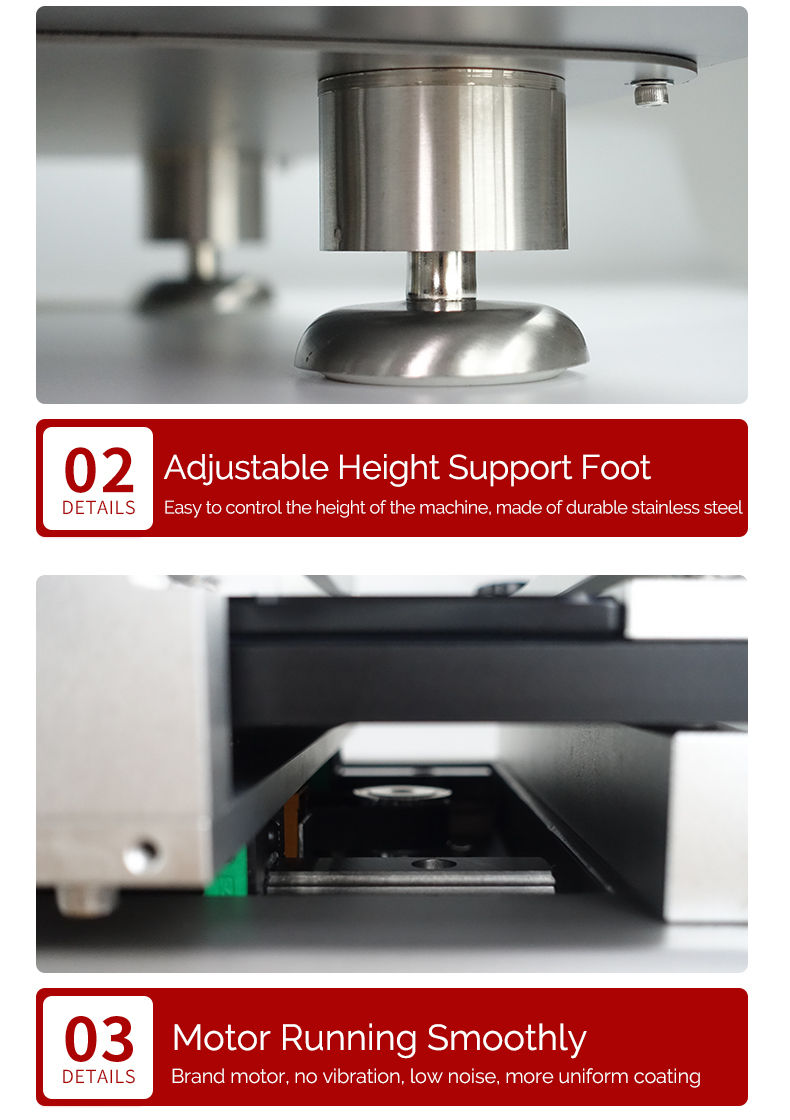

HUINUO TM1000 high-precision wire-rod Film Applicator with 3 imported wire rods Figure 8

HUINUO TM1000 high-precision wire-rod Film Applicator with 3 imported wire rods Figure 9

HUINUO TM1000 high-precision wire-rod Film Applicator with 3 imported wire rods Figure 10

HUINUO TM1000 high-precision wire-rod Film Applicator with 3 imported wire rods Figure 11

product description

The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The Principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.

This coating machine is a basic wire bar coating machine. It adopts a new wire bar installation method and has speed control and coating length adjustment functions. It is suitable for high-precision automatic coating in laboratories, and in university research institutes and new materials. , lithium battery and other laboratories for film production and proofing.

Applications

The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, polymer materials, pharmaceuticals, etc. It can be applied on glass, cardboard, and cloth.

Features

1) The glass tabletop is a 3C certified national standard authentic fully tempered glass plate, original gold crystal, heat-resistant to 600℃, scratch-resistant and scratch-resistant

2) Equipped with a high-precision Film Applicator, the original imported wire rod can apply the film uniformly and with high precision

3) Aluminum alloy hard oxidation surface treated coated base plate, wear-resistant and flat, comes with flatness accuracy calibration certificate

4) Touch screen control panel, easy to operate

5) Coating length and coating speed can be adjusted freely

FAQ
QI want to do a film test of lithium battery paste in the laboratory, which coater is more suitable?
A Use HuiNuo TM1000 Automatic Film Applicator. This is a basic bar coater, especially suitable for lithium battery paste film, because its high-precision imported bar can ensure the uniformity of Spreader, the Spreader speed is adjustable from 1-300mm/s, and the film thickness can be precisely controlled, which is crucial for lithium battery electrode prepative.
QNew material research and development in our laboratory is needed in the preparation of uniform film, what film equipment should be selected?
A HuiNuo TM1000 adopts original imported bar, film accuracy of +/- 0.001mm, can ensure film uniformity; touch screen operation is simple, application length and speed can be freely adjusted, suitable for Moulding proofing needs in New material research and development.
QHow to choose the function configuration of Film Applicator when doing Coating sample test?
A The basic choice of HuiNuo TM1000 is enough, and its bar Spreader is suitable for most Coatings. If the sample flowability is strong, it is recommended to add Vacuum chuck function to fix the substrate; if you need fast drying, you can choose heating function. This machine coating table is wear-resistant aluminum alloy + tempered Glass, which can adapt to various Coating tests.
QWidth can be controlled Paper, Film thickness No heating required
A Wire bar type coater, TM1000
QFor inks 25 μm Substrate copper foil, polyimide pi film, Substrate thickness 4mm No heating required
A Can use wire rod vacuum adsorption type Film Applicator
QWhat Glass material is the baseplate of the Film Applicator? Can it withstand high temperature?
A Tempered Glass, can withstand heat 600 degrees.
QAre the 3 matching wire rods the same number or can they be selected freely?
A You can freely choose the number of sticks you need.
QCan the Film Applicator customize a larger size? Such as 80cm or 1cm.
A Can be customized.
