HUINUO TM3000 Automatic Film Applicator Mini with Wire rod and Adjustable drawdown blade

SE
Rod & Drawdown Blade integrated type, simple wire rod groove design, wire rod installation is simple, drawdown blade clamshell design, easy cleaning, film accuracy up to 1 micron, tempered Glass baseplate, wear resistance, scratch resistance and heat resistance.
$2403.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

HuiNuo TM3000 Automatic Film ApplicatorSPEC

HuiNuo TM3000 Automatic Film ApplicatorDetails

HuiNuo TM3000 Automatic Film ApplicatorPacking list

SKU
NB045125
Coating method
Bar + drawdown blade
Coating speed
1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method
fixture
Coating table material
Glass plate
Coating table size
600*300mm
Effective coating Area
400 * 300Mm (can be customized)
Mayer Rod Thickness Range
Different bar numbers have different thicknesses, with high-precision imported bars
Mayer Rod Accuracy
±0.001mm
Drawdown blade thickness range
0.1~ 10Mm (clamshell design is easy to clean)
Drawdown blade material
Die steel
Drawdown blade application width
300mm
Drawdown blade Accuracy
±0.003mm
Power
400w
Operating language
Chinese (can be customized in English)
Display
Color LCD touch screen
Host Power Supply
220V/50HZ (can be customized 110V/60HZ)
Dimension
658*438*205mm（L*W*H）
optional feature
Heating, vacuum adsorption
TM3000
Automatic Film Applicator
Rod & Drawdown Blade integrated type, simple wire rod groove design, wire rod installation is simple, drawdown blade clamshell design, easy cleaning, film accuracy up to 1 micron, tempered Glass baseplate, wear resistance, scratch resistance and heat resistance.
HUINUO TM3000 Automatic Film Applicator Mini with Wire rod and Adjustable drawdown blade Picture

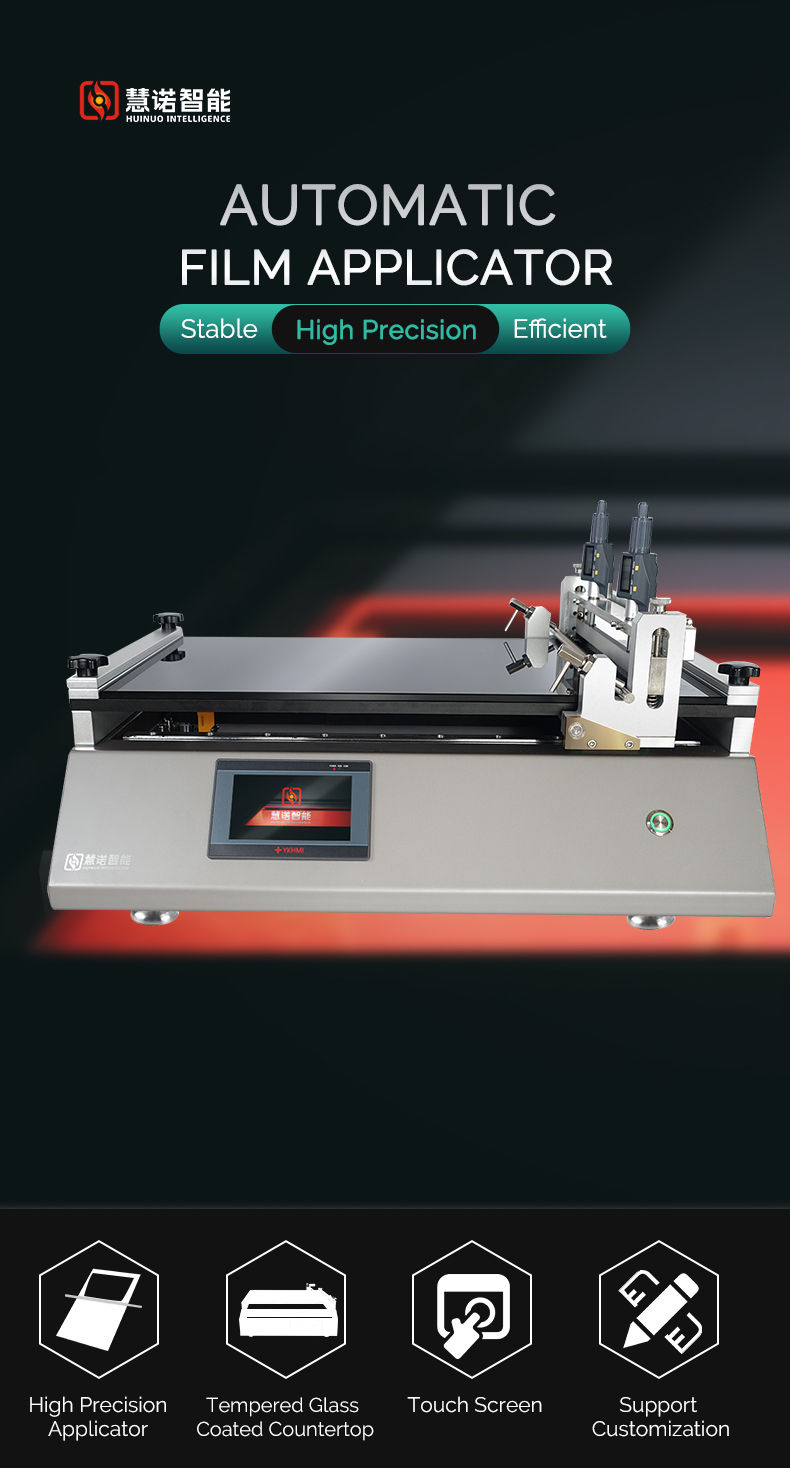

HUINUO TM3000 high-precision wire rod drawdown blade coater Figure 1

HUINUO TM3000 high-precision wire rod drawdown blade coater Figure 2

HUINUO TM3000 high-precision wire rod drawdown blade coater Figure 3

HUINUO TM3000 high-precision wire rod drawdown blade coater Figure 4

HUINUO TM3000 high-precision wire rod drawdown blade coater Figure 5

HUINUO TM3000 high-precision wire rod drawdown blade coater Figure 6

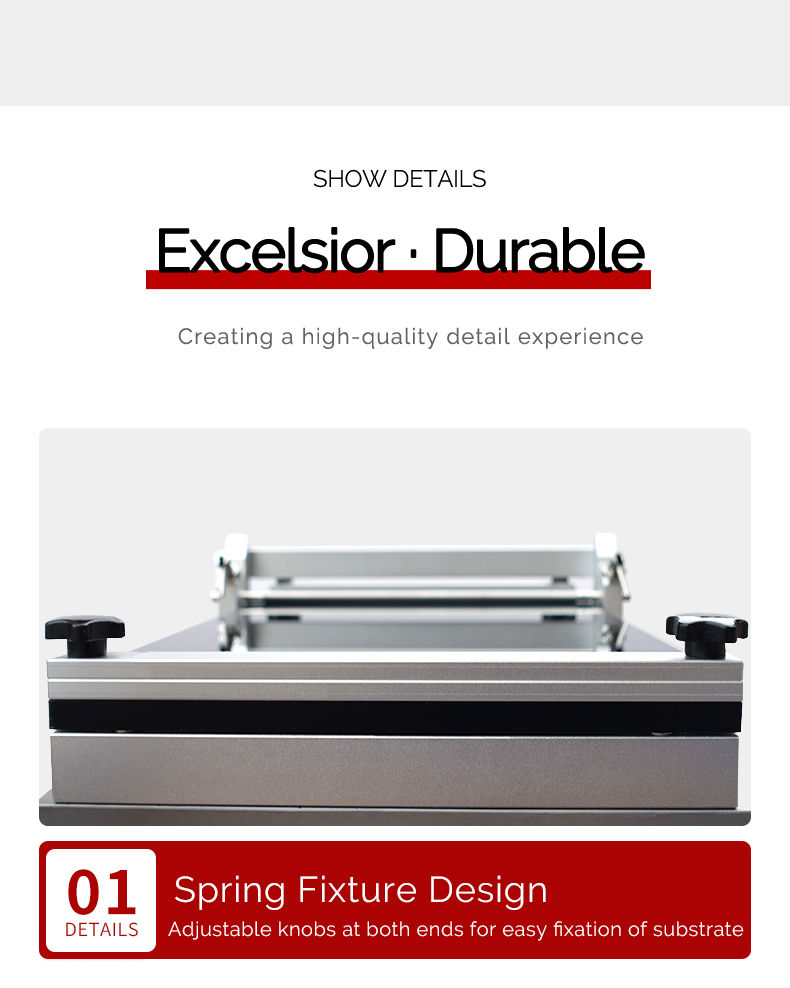

HUINUO TM3000 high-precision wire rod drawdown blade coater Figure 7

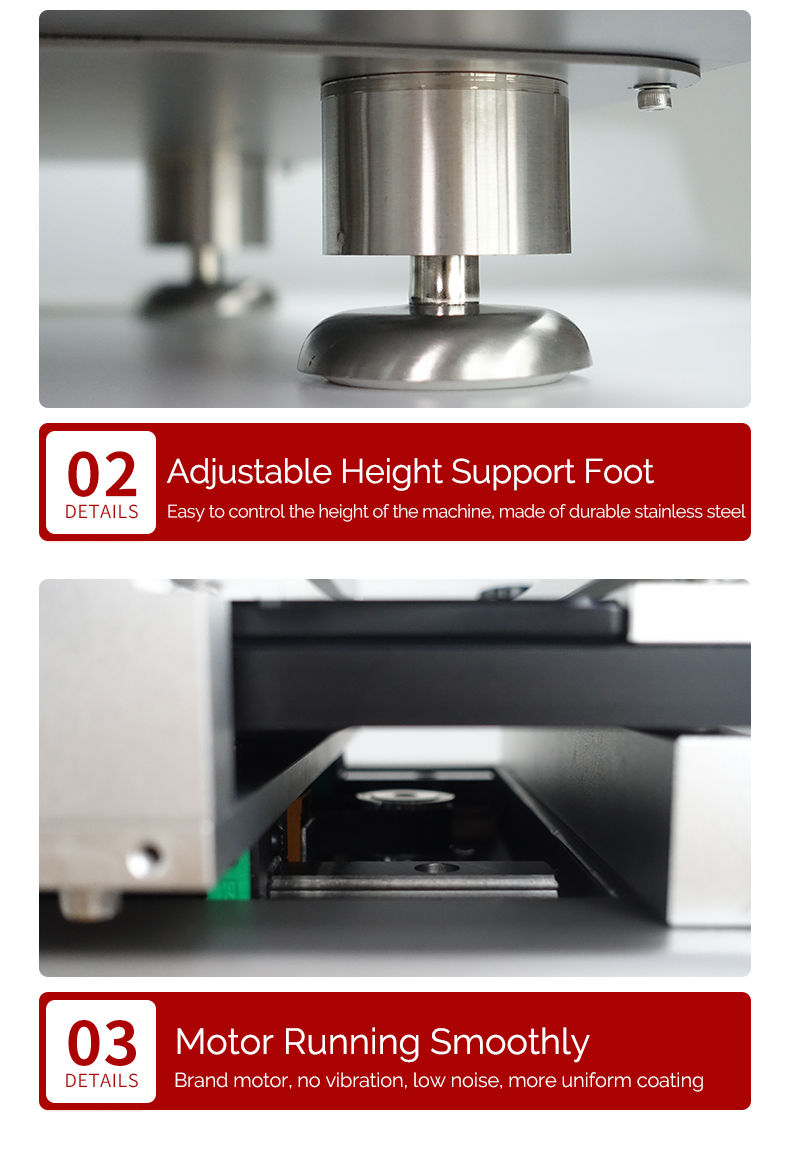

HUINUO TM3000 high-precision wire rod drawdown blade coater Figure 8

HUINUO TM3000 high-precision wire rod drawdown blade coater Figure 9

HUINUO TM3000 high-precision wire rod drawdown blade coater Figure 10

HUINUO TM3000 high-precision wire rod drawdown blade coater Figure 11

product description

The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The Principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.

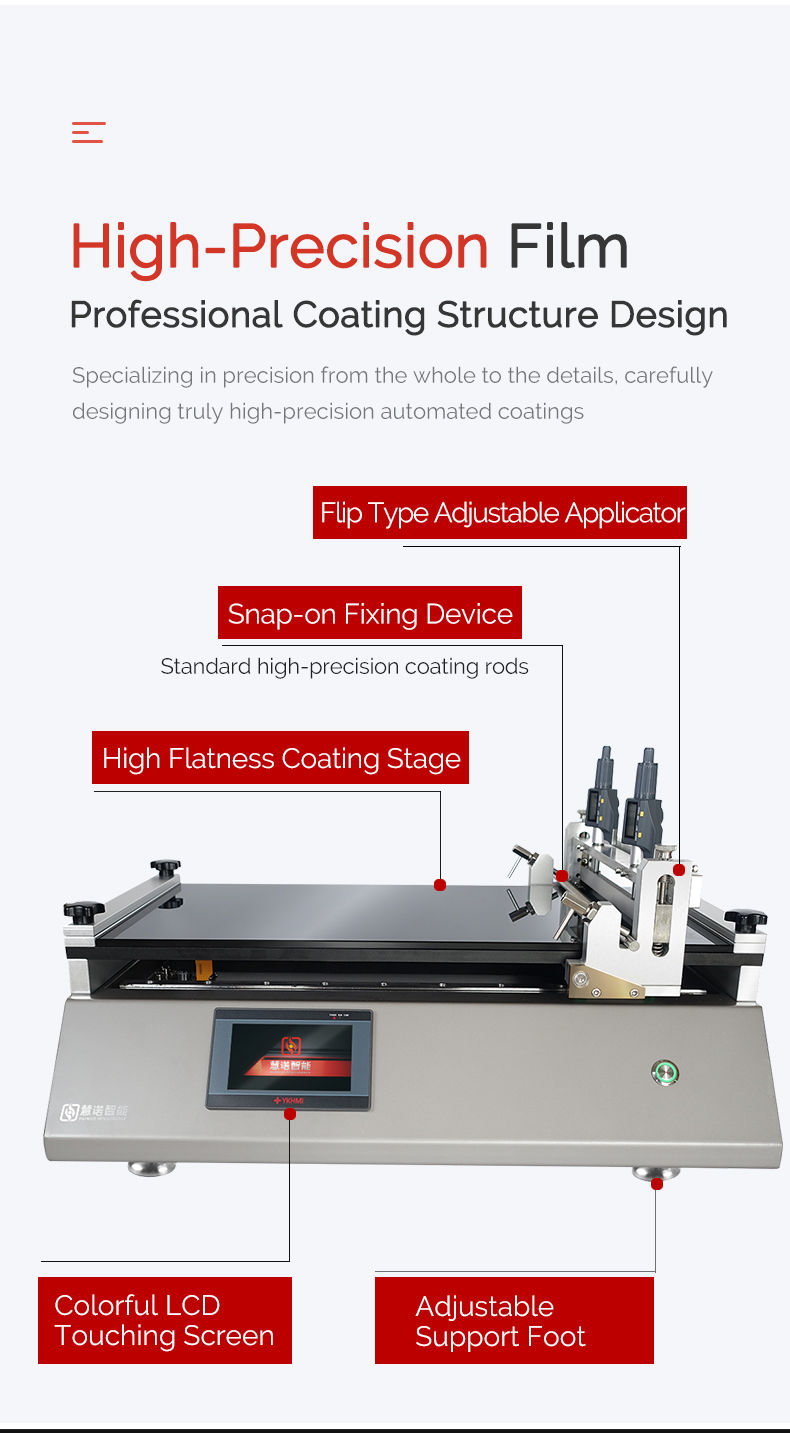

This coating machine is a wire bar blade coating machine with two functions: wire bar coating and blade coating. The innovative wire bar installation method and flip-type scraper head greatly improve the coating efficiency, facilitate cleaning, and have speed control. And the coating length adjustment function is suitable for high-precision automatic coating in laboratories, and film production and proofing in university research institutes, new materials, lithium batteries, glue, resin and other laboratories.

Applications

The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc. It can be applied on glass, cardboard, and cloth.

Features

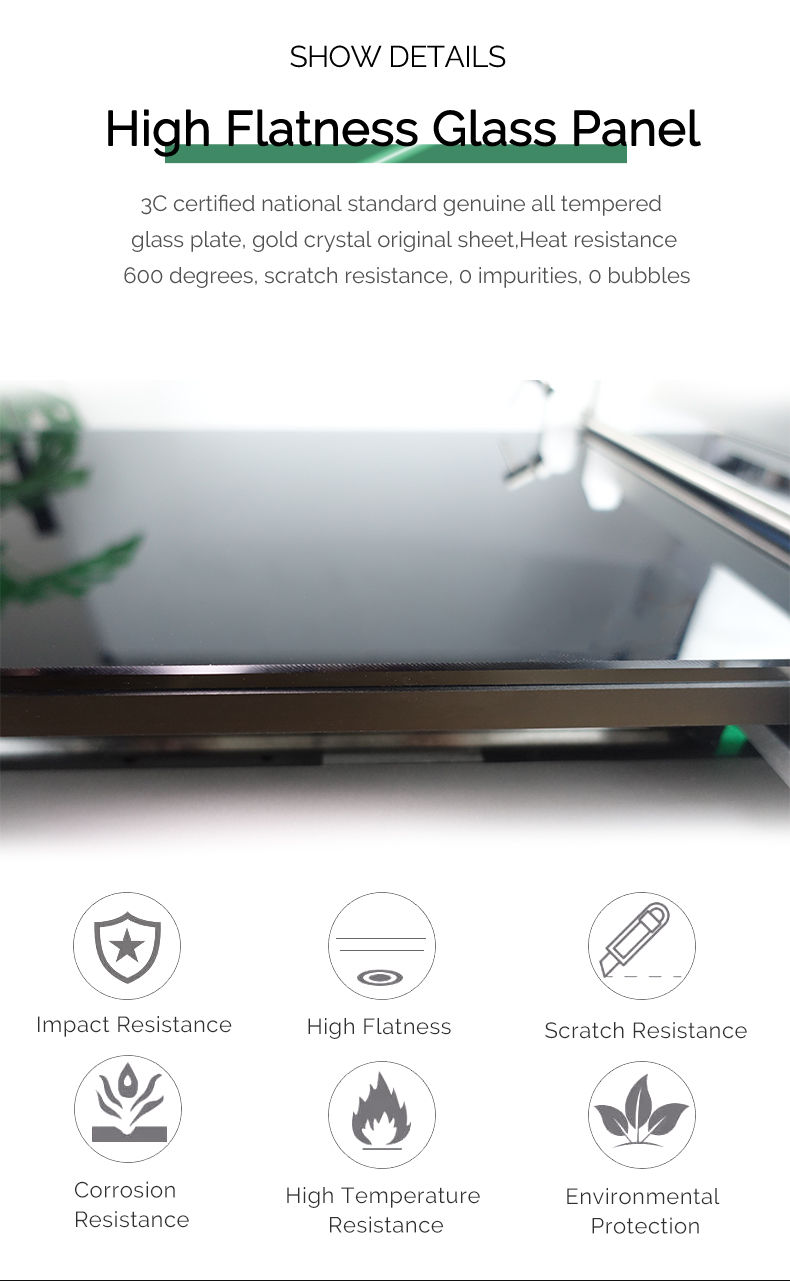

1) The glass tabletop is a 3C certified national standard authentic fully tempered glass plate, original gold crystal, heat-resistant to 600℃, scratch-resistant and scratch-resistant

2) Big brand differential regulator, high film thickness control accuracy

3) Flip-type doctor blade coating head, easy to clean

4) Equipped with a high-precision Film Applicator, the original imported wire rod can apply the film uniformly and with high precision

5) Touch screen control panel, easy to operate

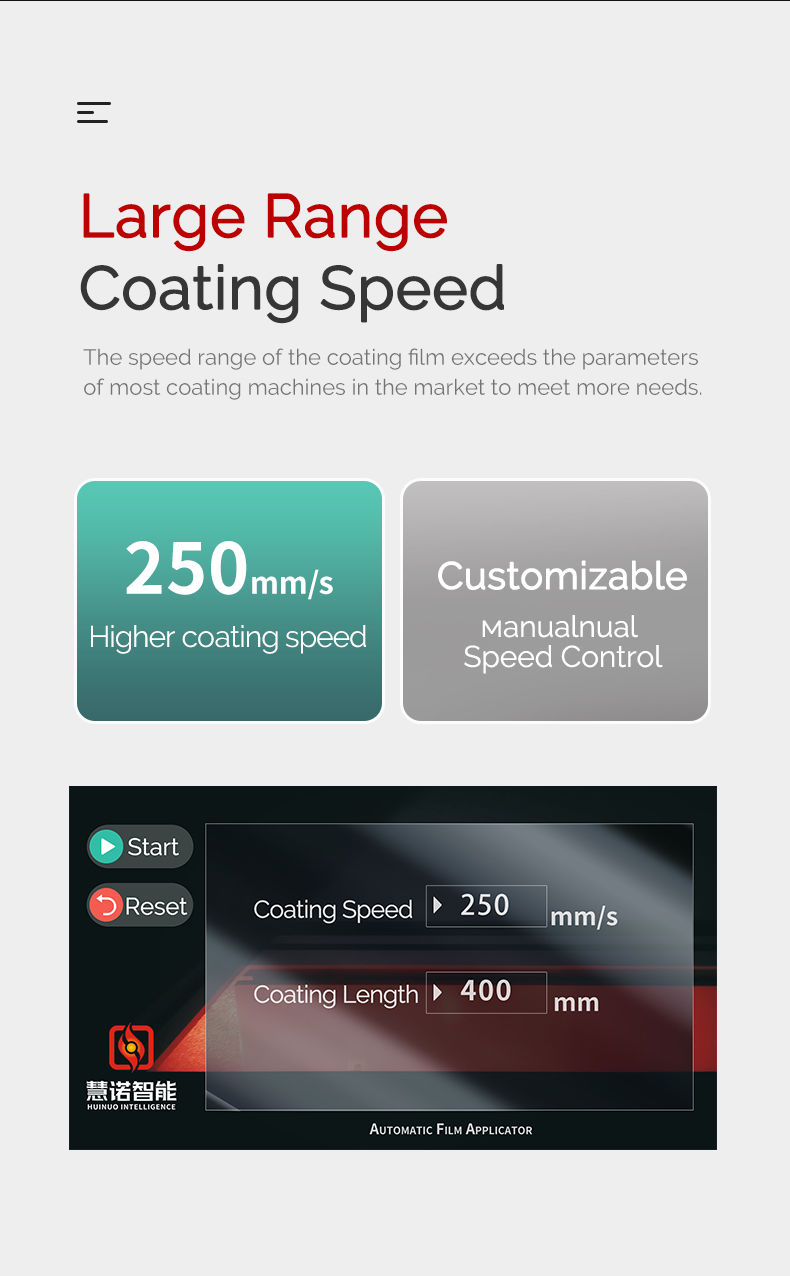

6) Coating length and coating speed can be adjusted freely

FAQ
QOur laboratory needs to do film testing of lithium battery paste, which Film Applicator should be selected?
A It is recommended that you use TM3000 Automatic Film Applicator, which supports two coating methods of bar and drawdown blade, especially suitable for uniform Spreader of high viscosity materials such as lithium battery slurry. The meyer rod coating accuracy can reach +/- 0.001mm, which can accurately control the pole piece Coating thickness, and the clamshell drawdown blade is easy to clean to avoid cross-contamination of slurry.
QWhen making glue or Resin film, how to ensure uniform film thickness?
A TM3000 adopts imported high-precision bar and die steel drawdown blade, and the differential regulator precisely controls the film thickness. The uniformity of bar Spreader is excellent, the thickness range of drawdown blade Spreader is 0.1~ 10mm, and the high-precision of +/- 0.003mm can meet the Moulding requirements of glue, Resin and other materials to ensure good Repeatability for each experiment.
QThe laboratory often changes different samples. Is the Film Applicator easy to operate?
A TM3000 design is very user-friendly, touch screen control, Spreader speed and length can be adjusted freely. The clamshell drawdown blade and the new bar Installation method make cleaning particularly fast, suitable for universities and research institutes to frequently change samples, greatly improving the experimental efficiency.
QOften do glue, Resin film experiment, Spreader head cleaning is too troublesome, there is no easy to clean the model?
A HuiNuo TM3000 is very suitable. Its drawdown blade is a clamshell design, which can be cleaned directly when opened, and the bar is also a new Installation method, which is quick to disassemble and assemble. Glue and Resin are easy to remain, this design can greatly save your cleaning time and improve the experimental efficiency.
QI Want to Make Lithium Battery Spreader in Lab, Which Film Applicator is Suitable?
A It is recommended that you use TM3000 Automatic Film Applicator, which has two coating methods of wire rod and drawdown blade, which is especially suitable for high viscosity materials such as lithium battery slurry. The meyer rod coating accuracy can reach +/- 0.001mm, which can ensure the uniform thickness of the electrode sheet, and the 300mm wide drawdown blade just covers the common collector width.
QLaboratory to do lithium battery slurry Spreader, want to find a high accuracy, easy to operate Automatic Film Applicator, what is recommended?
A It is recommended that you use HuiNuo TM3000 Automatic Film Applicator. It adopts two coating methods of bar and drawdown blade, and the meyer rod coating accuracy is +/- 0.001mm, which is especially suitable for lithium battery slurry, which requires high uniformity coating. Touch screen control, Spreader speed and length can be freely adjusted, easy operation, and optional heating function to help slurry better film formation.
QGel paste coater with heating function, suitable?
A Sure.
QOur pvc leather coating, can you use this?
A Sure.
QPottery and porcelain substrate, 0.5-0 film thickness, which one is suitable?
A Bar drawdown blade coater is enough, optional heating or automatic feeding function.
QFilm thickness 20 microns -1000 microns, film on steel plate, which one is suitable?
A The metering rod & doctor blade type can be used, which can be coated with both film and thick film, and the film thickness range can be adjusted.
