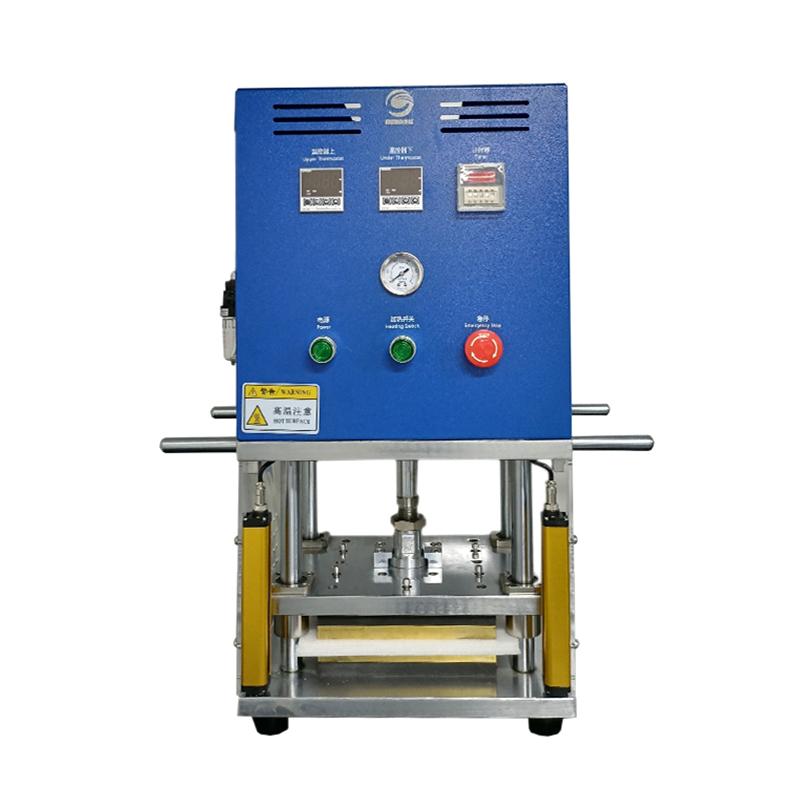

CHINA NBC-RY200 hot press shaping machine, soft pack lithium battery hot press shaping

NBC-RY200

Hot press shaping machine

Single station structure, with light curtain protection device, can adjust the hot pressing time, temperature, pressure, can use electrical control automatic operation, for the cell after winding hot flat pressing shape.

Introduction

NBC-RY200 hot pressing and shaping machine is mainly suitable for hot flat pressing and shaping of battery cores after winding to facilitate insertion into the shell. The wound battery core is placed on the template and shaped by pressure and heating to achieve a consistent thickness of the battery core, which reduces the elasticity of the battery core, reduces the short circuit rate of the core and ensures the consistency of the thickness of the finished battery core.

Principle

This equipment uses a thermostat and thermocouple to control the heating tube to transfer heat to the pressing plate to reach the set temperature, and then presses the upper and lower templates on the battery core under the action of the cylinder. At the same time, the heat of the heating template is transferred to the battery core, making the battery The core is stably formed under certain temperature and pressure.

main feature

• The temperature of the work surface can be adjusted through the buttons on the thermostat panel. The current value and set value of the set temperature can be displayed on the LCD display, which is intuitive and clear, with high temperature control accuracy and easy operation;

• The pressure on the upper and lower work surfaces can be adjusted through the pressure regulating valve to achieve different process parameter requirements;

• This machine adopts a single workstation structure, the upper and lower worktable panels are highly parallel, and the structure is stable and reliable;

• The work surface is made of high-quality materials, which has good heat transfer effect, saves power consumption and improves work efficiency;

• Adopt light curtain protection device, safe to use;

• This machine has a temperature abnormality alarm function;

• Hot pressing time, temperature and pressure are adjustable;

• This machine adopts automatic and semi-automatic control and is easy to operate;

• Small size saves space;

• Exquisite appearance, the sheet metal adopts three-dimensional geometric design, simple and beautiful;

• Electrical control can be used for automatic operation during operation, and manual function can be used during debugging.

Equipment composition

This machine consists of the following parts

1. Mechanical part: upper template mechanism, lower template mechanism, Heating Plate mechanism, heat insulation plate mechanism, guide mechanism, outer cover frame mechanism, base mechanism, etc.

2. Electrical part: light curtain, solid state relay, solenoid valve, photoelectric switch, etc.

3. Main components

Cylinder: SMC/AIRTAC

Heating tube: domestic (CN) high quality

Linear bearings: NSK domestic (CN) high quality

Intermediate relay: Omron (imported from Japan)

Security

1. Light curtain protection, outer cover protection

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
