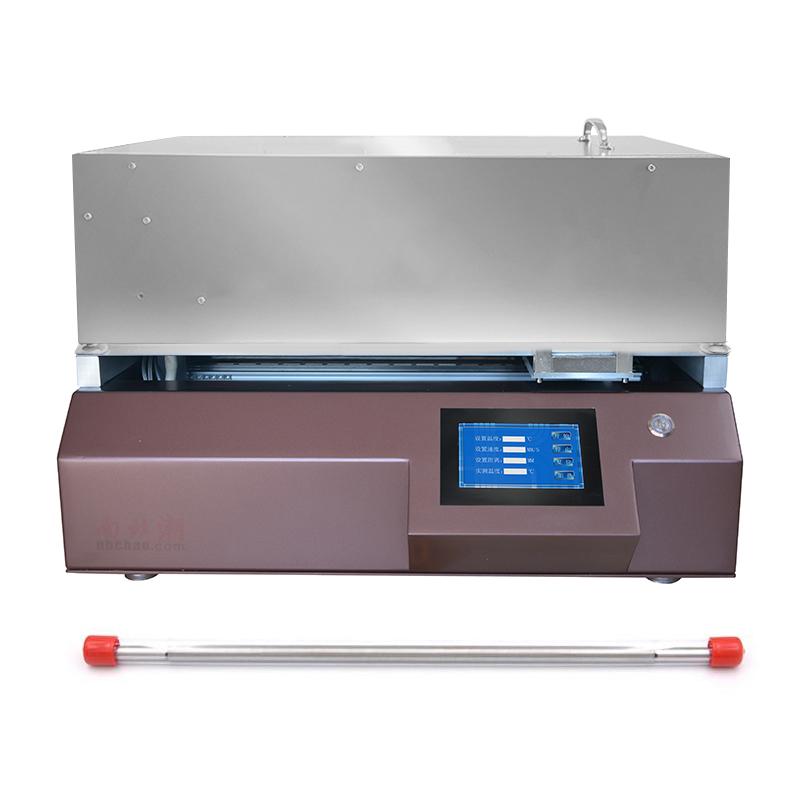

China drawdown Bar & blade Vacuum chuck Heating Film Applicator TBJ-X3-DJ15

Vacuum chuck + upper heating + baseplate heating + bar + removable Drawdown blade, Drawdown blade is easy to disassemble, clean and replace, Drawdown blade with bracket makes Spreader run more stably, film more evenly, standard high-precision imported bar.

$5325.00/set

PromotionLoading...

Coupon

Model：

TBJ-X3-DJ15

Manufacturer authorization

Contact

Details SPEC Con CAT OI

zy TBJ-X3-DJ15 Automatic Film ApplicatorSPEC

zy TBJ-X3-DJ15 Automatic Film ApplicatorDetails

zy TBJ-X3-DJ15 Automatic Film ApplicatorPacking list

SKU: NB045183

Drawdown blade Accuracy: ±0.003mm

Spreader thickness range: 0~10Mm drawdown blade can be lifted

Coating speed: 5~ 180Mm/s (< 5mm/s can be customized)

Coating size: 300*400mm

Spreader speed: Digital display, different speeds

Vacuum Area: 300 * 400Mm (can be customized)

vacuum aperture: Φ1.2mm

Vacuum hole spacing: 20*20mm

Coating rod specification: 1 China wire rod + 1 imported wire rod with Accuracy up to 1μm, the effective application width is 300mm (Spreader thickness is determined according to the wire rod model)

Host Power: 220V 50Hz

Dimensions: 630*410*520mm

Weight: Net Weight 65KG

speed control: Infinitely variable speed

Bottom plate material: aluminum alloy

Heating temperature range: Room temperature~ 180 ℃

Temperature Uniformity: ±3℃

Power: 1500W

Vacuum pump size: 380*180*280mm

Optional: Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle

Customizable function: Jet system device, UV solid-containing device, automatic inking system

Drawdown blade type: Removable drawdown blade, easy to clean and replace

TBJ-X3-DJ15

Automatic Film Applicator

CHINA metering rod & drawdown blade vacuum adsorption heating Film Applicator upper and lower double heating type TBJ-X3-DJ15 Figure 1

CHINA metering rod & drawdown blade vacuum adsorption heating Film Applicator upper and lower double heating type TBJ-X3-DJ15 Figure 2

CHINA metering rod & drawdown blade vacuum adsorption heating Film Applicator upper and lower double heating type TBJ-X3-DJ15 Figure 3

CHINA metering rod & drawdown blade vacuum adsorption heating Film Applicator upper and lower double heating type TBJ-X3-DJ15 Figure 4

CHINA metering rod & drawdown blade vacuum adsorption heating Film Applicator upper and lower double heating type TBJ-X3-DJ15 Figure 5

CHINA metering rod & drawdown blade vacuum adsorption heating Film Applicator upper and lower double heating type TBJ-X3-DJ15 Figure 6

CHINA metering rod & drawdown blade vacuum adsorption heating Film Applicator upper and lower double heating type TBJ-X3-DJ15 Figure 7

CHINA metering rod & drawdown blade vacuum adsorption heating Film Applicator upper and lower double heating type TBJ-X3-DJ15 Figure 8

CHINA metering rod & drawdown blade vacuum adsorption heating Film Applicator upper and lower double heating type TBJ-X3-DJ15 Figure 9

Optional

FAQ

QIs the price listed on the website the final cost for overseas purchases?

ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

QWhat is the specific process for purchasing the product?

AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

QWhat should I do if the instrument I purchase needs repair?

AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
