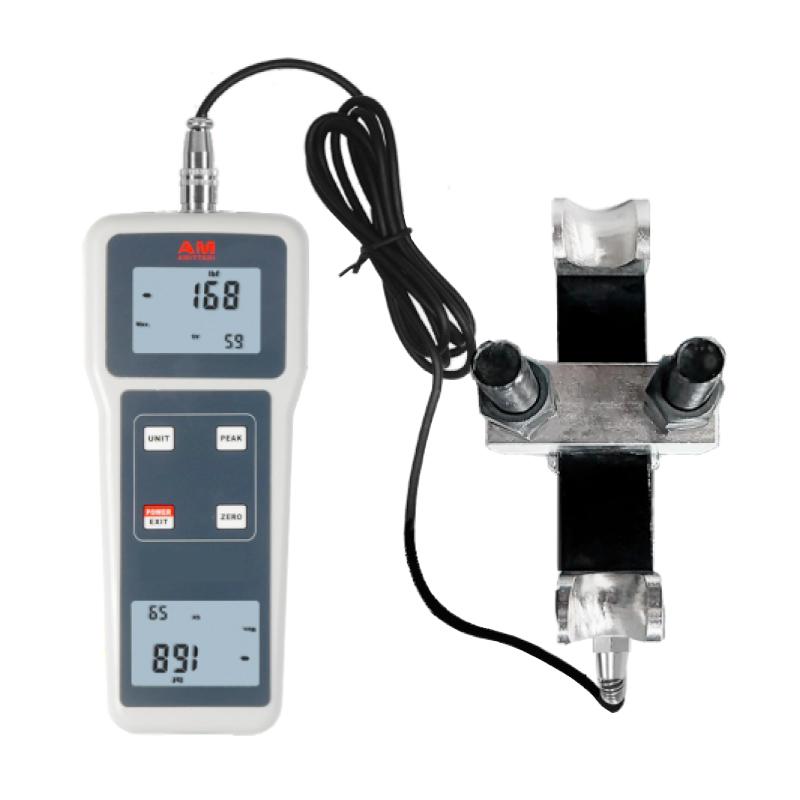

AMITTARI SPT-204-2T Measurement range +/- 16900N
SEMeasurement range +/- 2000kgf; +/- 16900N; +/- 4400Lbf, Precision 0.5, Measured value peak, instantaneous value, display four large LCD, forward and reverse dual display, is a measurement of wind towers, signal towers\ power transmission systems and other rope tension of a special instrument.
Model：
SPT-204-2T
AMITTARI SPT-204-2T side tensIon MeterSPEC
AMITTARI SPT-204-2T side tensIon MeterDetails

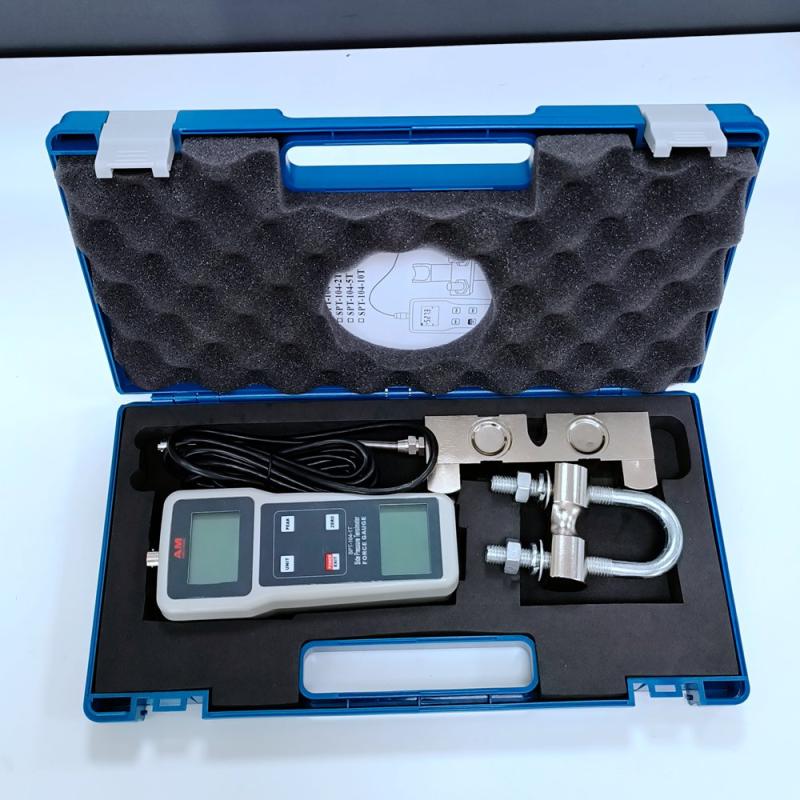

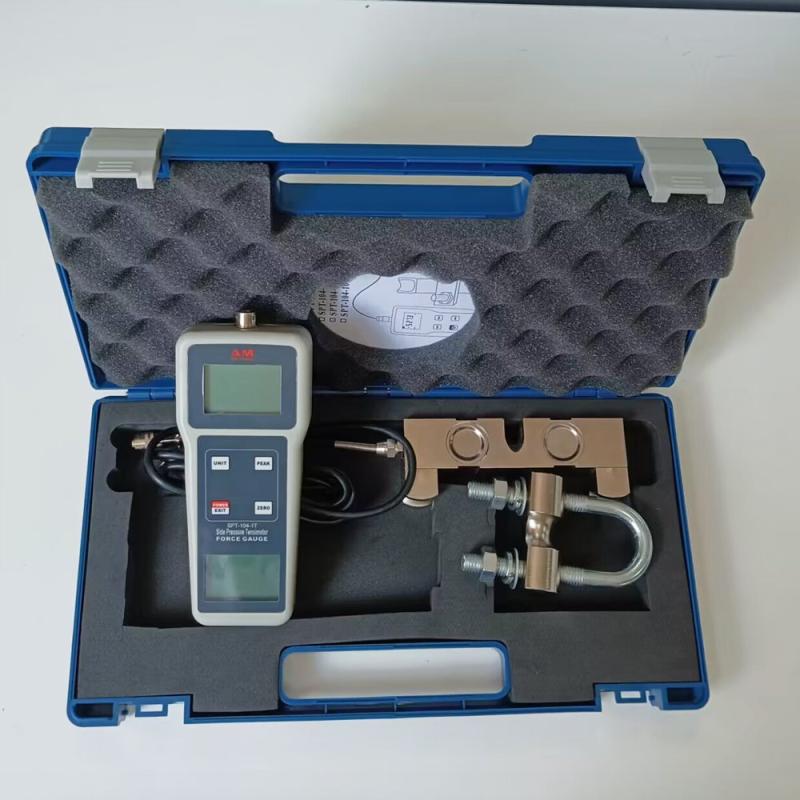

AMITTARI SPT-204-2T side tensIon MeterPacking list
- SKU
- NB045220
- Measurement range
- ±2000kgf；±16900N；±4400Lbf
- Resolution
- 0.01kgf (<100kgf)、0.1kgf (≥100kgf)；0.1N (<1000N)、1N (≥1000N)；0.1Lbf (<1000Lbf)、1Lbf (≥1000Lbf)
- Accuracy
- Level 0.5
- Accuracy
- +/- 0.5% FS (range) +/- 1 digital peak
- unit
- kgf, N, Lbf
- Measured value
- Peak, instantaneous value
- show
- Four-digit large LCD, forward and reverse dual display
- shutdown mode
- 10 minutes automatic shutdown or manual shutdown
- Backlight
- Blue backlight
- allowable load
- 150% F.s (buzzer alarm when it exceeds 110% F.s)
- Power
- 2 AA batteries or 5V DC Power
- Operating temperature
- 0℃~40℃
- Operating humidity
- < 80%
- Operating Environment
- No source and corrosive medium around
- Net Weight
- 1165g
- Host size
- 175mmx80mmx36mm
- Sensors size
- 140mmx65mmx105mm
SPT-204-2T

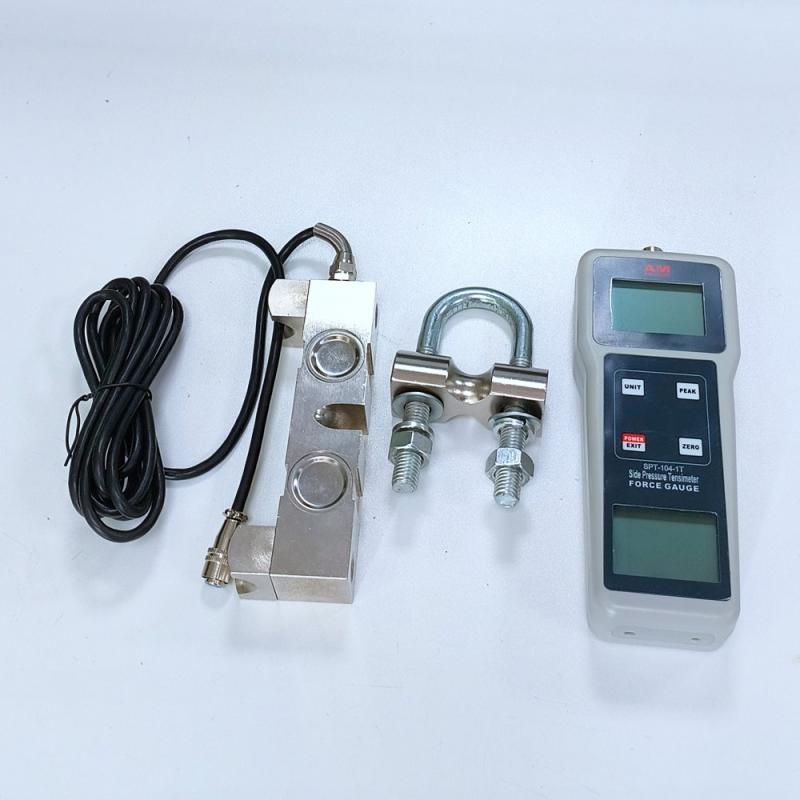

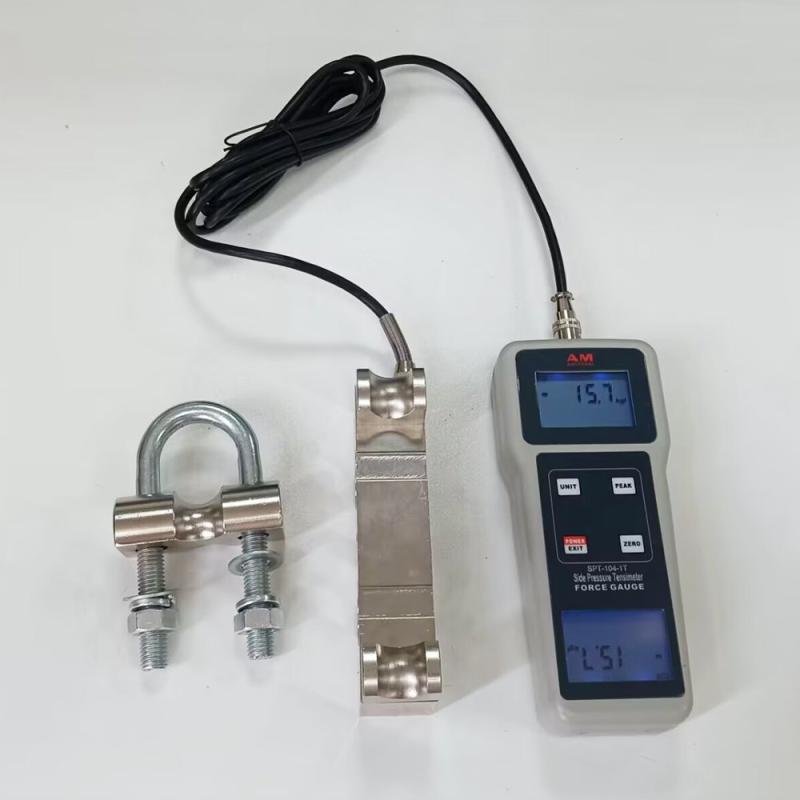

side tensIon Meter
Measurement range +/- 2000kgf; +/- 16900N; +/- 4400Lbf, Precision 0.5, Measured value peak, instantaneous value, display four large LCD, forward and reverse dual display, is a measurement of wind towers, signal towers\ power transmission systems and other rope tension of a special instrument.
Introduction
The side pressure Tension Tester is a special instrument for measuring the tension of ropes in wind towers, signal transmission towers, power transmission systems, etc. It has the advantages of easy operation and portability . It also has various test modes for the convenience of Testers.
Features
High precision and high resolution. Digital display, no parallax.
Four measurement units of N (Newton), kg (kilogram), lb (pound), and g (gram) are available for selection and mutual conversion.
Peak hold function. Maintain peak value display until manually cleared to zero.
It can be powered by alkaline batteries; it can also be powered by a 5V DC power supply.
Series model
| model | Measuring range | resolution |
| SPT-204-500K | ±500kgf ±4900N ±1100Lbf | 0.01kgf (<100kgf) 0.1kgf (â¥100kgf) 0.1N (<1000N) 1N (â¥1000N) 0.1Lbf (<1000Lbf) 1Lbf (â¥1000Lbf) |
| SPT-204-1T | ±1000kgf ±9800N ±2200Lbf | 0.01kgf (<100kgf) 0.1kgf (â¥100kgf) 0.1N (<1000N) 1N (â¥1000N) 0.1Lbf (<1000Lbf) 1Lbf (â¥1000Lbf) |
| SPT-204-2T | ±2000kgf ±16900N ±4400Lbf | 0.01kgf (<100kgf) 0.1kgf (â¥100kgf) 0.1N (<1000N) 1N (â¥1000N) 0.1Lbf (<1000Lbf) 1Lbf (â¥1000Lbf) |
| SPT-204-5T | ±5000kgf ±49000N ±11000Lbf | 0.01kgf (<100kgf) 0.1kgf (â¥100kgf) 0.1N (<1000N) 1N (â¥1000N) 0.1Lbf (<1000Lbf) 1Lbf (â¥1000Lbf) |
| SPT-204-10T | ±10000kgf ±98000N ±22000Lbf | 0.01kgf (<100kgf) 0.1kgf (â¥100kgf) 0.1N (<1000N) 1N (â¥1000N) 0.1Lbf (<1000Lbf) 1Lbf (â¥1000Lbf) |
| Other parameters | ||
| Accuracy | Level 0.5 | |
| Accuracy | ±0.5%FS(range)±1 digital peak | |
| unit | kgf, N, Lbf | |
| Measurable value | peak value, instantaneous value | |
| show | Four-digit large LCD, dual forward and reverse displays | |
| shutdown mode | Automatic shutdown or manual shutdown in 10 minutes | |
| backlight | blue backlight | |
| allowable load | 150%Fs (when exceeding 110%Fs, there will be a buzzer alarm) | |
| power supply | 2 AA batteries or 5V DC power supply | |
| Operating temperature | 0℃~40℃ | |
| Working humidity | < 80% | |
| Operating Environment | There are no seismic sources or corrosive media around | |
| Net Weight | 1165g | |
| Host size | 175mmx80mmx36mm | |
| Sensor size | 140mmx65mmx105mm | |
