HANNA HI6221 Benchtop acidity meter, a new generation of desktop pH/ORP meter
SE
HI6221
HANNA HI6221 Desktop acidity meterSPEC
HANNA HI6221 Desktop acidity meterDetails
HANNA HI6221 Desktop acidity meterPacking list
- SKU
- NB045241
- Measurement range -pH
- -2.0 to 20.0 pH；-2.00 to 20.00；-2.000 to 20.000pH
- Resolution-pH
- 0.1pH、0.01pH、0.001pH
- Measurement Accuracy -pH
- ±0.1pH、±0.01pH、±0.001pH±1LSD
- Measurement range -mV
- ±2000mV
- Resolution -mV
- 1mV; 0.1 mV
- Measurement Accuracy -mV
- ±0.2mV±1LSD
- Temperature Measurement Range
- -20.0 to 120.0℃
- temperature resolution
- 0.1℃
- Temperature measurement Accuracy
- ±0.2℃
- Relative mV offset, range
- ± 2000.0 mV
- Calibrating point -pH
- Up to 5
- Type-pH
- Automatic calibration, semi-automatic calibrating, manual operation
- Standard calibrating fluid
- HANNA及NIST：pH1.68,3.00.4.01,6.86,7.01,9.18.10.01,12.45
- Custom calibrated -pH
- Up to 5
- Custom group - pH
- Up to 5
- First calibrated point - pH
- Offset or point (user set)
- Reminder - pH
- Turn off function; Daily: 0 minutes to 23 hours and 59 minutes; Period: 1 minute to 500 days, 23 hours and 59 minutes.
- Temperature compensation
- Automatic compensation or manual operation
- Type - View
- Direct/automatic hold
- Stability - View
- Accurate; medium; fast
- Isopotential - View
- 7.000 or 4.010
- Sampling rate - View
- 1000 ms
- Primary-pH view
- Measurement (pH, mV, Rel.mV, Abs.mV)
- Simple GLP
- Basic view information; last calibrated data, electrode offset, average slope and electrode parameters
- complete GLP
- Simple GLP information and detailed calibrated points
- form
- Table showing measurement values per second interval
- Icon (drawing)
- The relationship between pH (or mV) and temperature and time can be translated or scaled (Graduation technique).
- record type
- Automatic, manual recording, automatic maintenance
- Number of records
- Maximum of 50,000 data points per file; minimum of 1,000,000 data points per user
- automatic interval
- One, two, five, 10, 30 seconds; one, two, five, 10, 15, 30, 60, 120, 150, 180 minutes.
- Export options
- .Csv file format
- user
- Up to 9 users and administrators. Account (default)
- USB-A
- 2 ports for keyboard input or US-A driver
- USB-C
- 1 port for PC connection and USB-C drive
- Wi-Fi & Ethernet
- FTP; Web server log transfer and download email;
- RS232
- Connect peripheral devices
- Power
- DC Adapter 100-240AC, 24 VDC 2.5A
- Operating Environment
- 0 - 50 ℃/32 - 122 ° F/273 - 323 K max 95% RH non-condensing
- Size/Weight
- 205 x 160 x 77mm / ≈1.2kg
Introduction

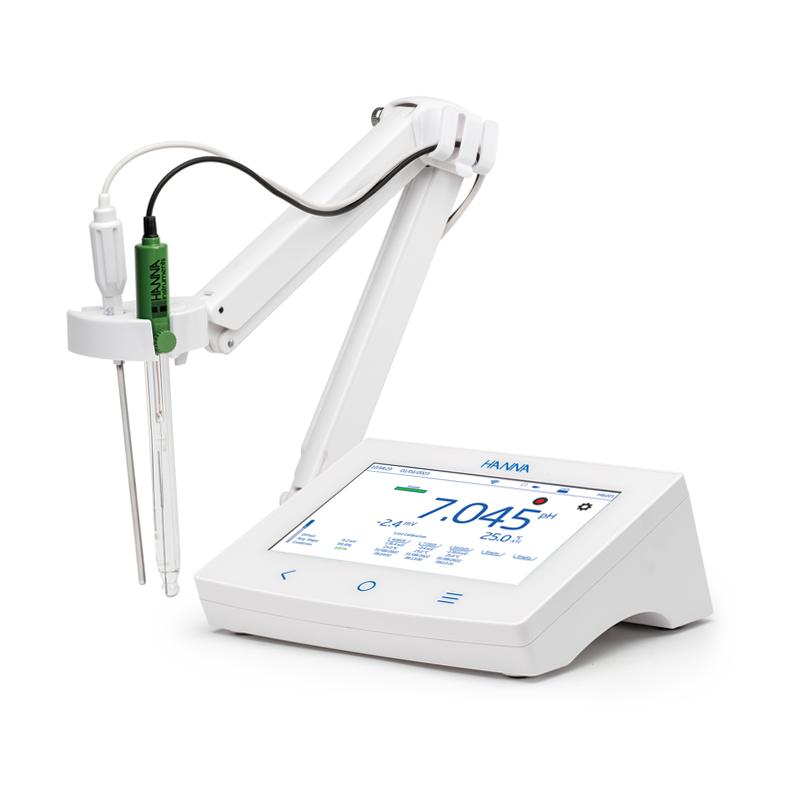

The HI6221 is a streamlined desktop instrument with a large touch screen display, consisting of an instrument housing and an integrated pH/ORP measurement module. The benchtop meter is compact and easy to operate and features a Hanna Instruments HI1131B dual-junction combination pH electrode and HI7662-TW temperature probe.
The HI1131B is a glass body, double junction, refillable pH electrode with an indicator sensor made of high temperature (HT) glass. The dual junction reference and HT glass design allows the HI1131B to be used in a variety of applications, including samples with metals and high temperatures. The connection of the electrodes to the device is secured via galvanically isolated BNC connections. The HI7662-TW stainless steel temperature probe allows the meter to perform automatic temperature compensated (ATC) pH measurements.
HI6221 is equipped with an electrode holder with flexible arms. The holder installs quickly and provides secure support for the electrode when measurements are taken in the sample container.
Features
user interface
7-inch capacitive touch screen supports multi-touch;
capacitive touch screen, home and system menu keys;
User-friendly icons and symbols allow users to easily navigate and explain instrument functions;
Users can choose between five different views:
â Basic measurement configuration.
â¡Simple GLP with calibration information.
⢠Complete GLP with electrode status and calibration point details.
â£Interactive graphics updated in real time.
â¤Tabular data containing date, time and comments.
Measurement
Measure pH/mV (pH) or mV/Rel.mV (ORP) and temperature;
Application-specific configuration files allow for quick, direct measurements without the need to update sensors and system settings;
Activity log during the measurement period;
Measure stability metrics (using stability standard settings);
Read modes: direct and direct/auto hold;
Temperature compensation can be automatic (using a temperature probe) or set manually;
Audible and/or alarm messages when measurements exceed predefined limits;
Galvanic isolation for pH/ORP measurement calibration;
calibration
5-point pH calibration, automatic identification of standard buffers (Hanna and NIST buffers);
Choose standard or custom buffers for calibration;
Non-volatile memory holds data and settings;
Record
Data log collection (with time and date stamp) of at least 1,000,000 data points;
Logging type: manual, automatic, automatic retention;
Manually and automatically maintain sample IDs for data.
Connect features and services
Transfer recorded data to USB flash drive;
Log files containing measurement and calibration data (in the form of .csv files);
Log export via FTP and email via Ethernet and Wi-Fi connections;
USB type is A, used for USB flash drives, keyboards and printers;
USB Type C for USB disk and PC connection.
Instrument Guide Help Section
Video support demonstration of key features.
