HANNA HI98192 Conductivity Meter EC/TDS/Electrical resistivity /NaCl/Temperature professional measurement
SE
HI98192
HANNA HI98192 Conductivity MeterSPEC
HANNA HI98192 Conductivity MeterDetails
HANNA HI98192 Conductivity MeterPacking list
- SKU
- NB045244
- Calibrated mode - conductivity
- Automatic up to five points with seven memory standards (0.00 μS/cm, 84.0 μS/cm, 1.413 mS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm)
- TDS range
- 0.00 - 99.99 ppm;100.0 - 999.9 ppm;1.000 - 9.999 g/L;10.00 - 99.99 g/L;100.0 - 400.0 g/L(自动量程)
- Resolution-TDS
- 0.01 ppm; 0.1 ppm; 0.001 g/L; 0.01 g/L; 0.1 g/
- Measurement Accuracy - TDS
- Reading +/- 1 %（ +/- 0.05 ppm or 1 word, whichever is greater)
- Measurement range - Electrical resistivity
- 1.0~99.9 Ω·cm; 100~999 Ω·cm; 1.00~9.99 KΩ·cm; 10.0~99.9 KΩ·cm; 100~999 KΩ·cm; 1.00~9.99 MΩ·cm; 10.0~100.0 MΩ·cm*
- Resolution - Electrical resistivity
- 0.1 Ω·cm; 1 Ω·cm; 0.01 KΩ·cm; 0.1 KΩ·cm; 1 KΩ·cm; 0.01 MΩ·cm; 0.1 MΩ·cm*
- Measurement Accuracy - Electrical resistivity
- Reading +/- 1 %（ +/- 1 0 Ω or 1 digit, whichever is greater)
- Measurement range - salinity
- % NaCl: 0.0~400.0%; Actual salinity: 0.00~42.00 (PSU); Seawater salinity: 0.00~80.00 (ppt)
- Resolution - salinity
- 0.1%; 0.01
- Measurement Accuracy - salinity
- Reading +/- 1%
- Calibrated mode - salinity
- In the HI7037 standard, the maximum point is only in the% NaCl range; conductivity calibrated for all Miscellaneous ranges
- Temperature Measurement Range
- -20.0~120.0℃; -4.0~248.0℉
- temperature resolution
- 0.1℃; 0.1℉
- Temperature measurement Accuracy
- +/- 0.2 ℃； +/- 0.4 F (ignoring temperature probe error)
- Temperature calibrated mode
- One or two calibrated
- cell constant setting
- 0.010 to 10.000
- Temperature compensation
- Linear temperature compensation: -20.0 to 120.0 ℃; -4.0 to 248.0 ° F; Nonlinear temperature compensation: 0 to 36 ℃; 32 to 98.6 ° F
- reference temperature
- 15°C, 20°C and 25°C
- temperature coefficient
- 0.00~10.00 %/℃
- TDS factor
- 0.40 to 1.00
- Electrode
- HI763133 Stainless steel, four-ring conductivity /TDS probe with internal temperature transducer and 1.5 m (4.9 ') cable inclusive
- logging
- On-demand logging: 400 samples; batch recording: 5, 10, 30 seconds, 1, 2, 5, 10, 15, 30, 60, 120, 180 minutes (up to 1000 samples)
- memory profile
- Up to 10
- Measurement mode
- Auto Range, Auto End, Lock and Fixed Range
- PC connection
- Optical sealing USB (with HI92000 software and micro-USB cable)
- Battery type/lifespan
- 1.5V AA battery (4 pcs)/continuous use for about 100 hours (without backlight), with backlight for 25 hours;
- Automatic shutdown
- User can choose: 5, 10, 30, 60 minutes, disabled
- Environment
- 0 to 50°C (32 to 122°F); RH 100% IP67
- Size/Weight
- 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4") / 400 g (14.2 oz.)
Universal application

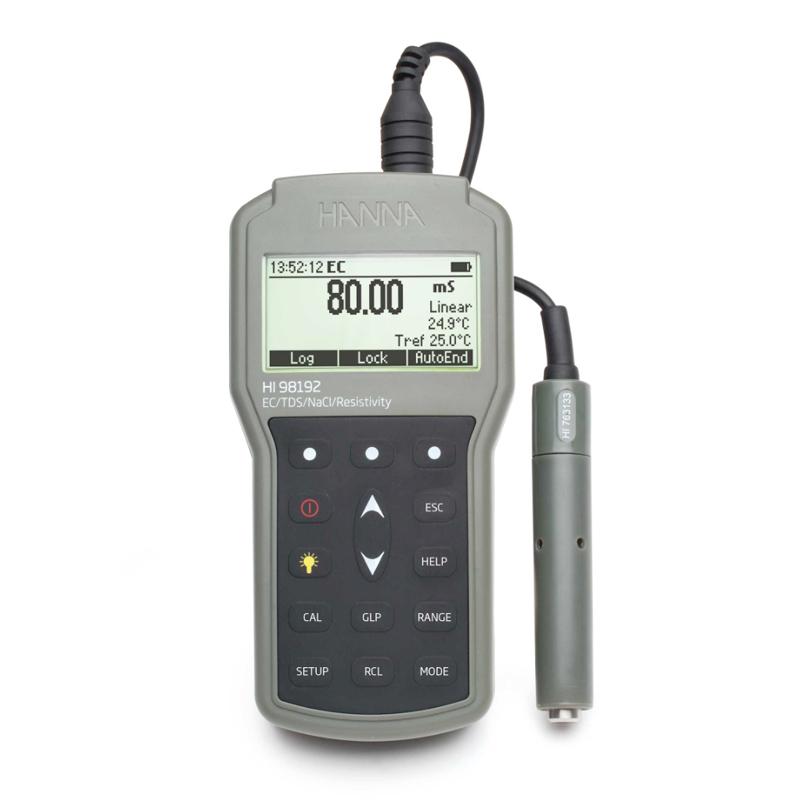

The HI98192 is a waterproof, portable conductivity meter with an extended conductivity range from 0.000μS/cm to 400mS/cm, as well as TDS, resistivity and three salinity scales. The meter offers a quick-connect four-ring probe and allows the user to adjust the nominal cell constant. The HI98192 is also ready to perform all three phases of the USP<645> method required for ultrapure water EC measurements.
Features
Waterproof: IP67 waterproof, sturdy shell;
Salinity reading: Salinity can be displayed as % NaCl, seawater scale (ppt) or actual salinity scale (PSU);
Calibration : Perform up to five-point calibration for improved accuracy;
Temperature compensation : automatic temperature compensation, configurable temperature coefficient range is 0.00 : 10.00%℃;
Four-ring stainless steel electrode, which can cover low EC samples to 1000 mS/cm (actual EC);
Clear display : dot matrix display with multi-function virtual keys;
AutoHold : Automatically holds the first stable reading on the display;
Calibration timeout, which triggers an alarm when calibrating at a specified interval;
Connection : PC connection via optically isolated micro USB to HI92000 software;
GLP : GLP data provides data from previous calibrations to ensure compliance with good laboratory practices;
Battery life approximately 100 hours : powered by (4) 1.5V AA batteries;
Intuitive keyboard : most available options, such as GLP information, help, range, calibration and backlight, have a dedicated button;

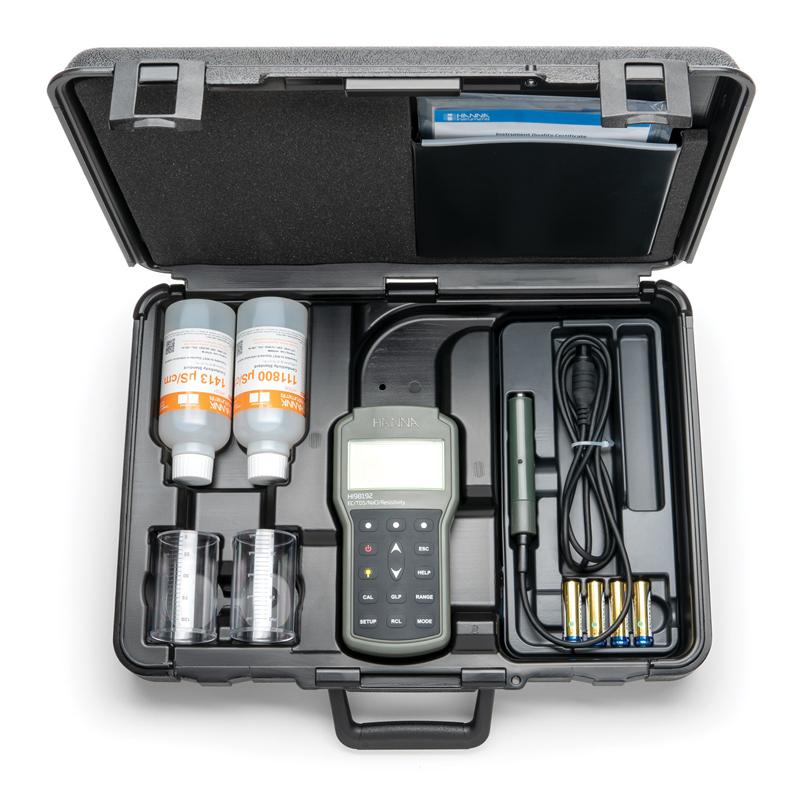

Supplied Complete : Each meter comes complete with sensor, calibration solution, beaker, PC software and connecting cables, user manual, quick start guide and batteries, housed in a sturdy custom carrying case;
Optional shockproof silicone rubber case : HI710034 Orange designed to protect your instrument from damage or shock .
- 1JJG 2059-2014《Measuring Instruments for Electrolytic Conductivity》
- 2JB/T 9366-2017《Laboratory conductivity meters》
- 3SL 78-1994《Determination of conductivity (Conductivity instrument method)》
- 4ISO 8502-9-2020《Preparation Of Steel Substrates Before Application Of Paints And Related Products - Tests For The Assessment Of Surface Cleanliness - Part 9: Field Method For The Conductometric Determination Of Water-Soluble Salts》
