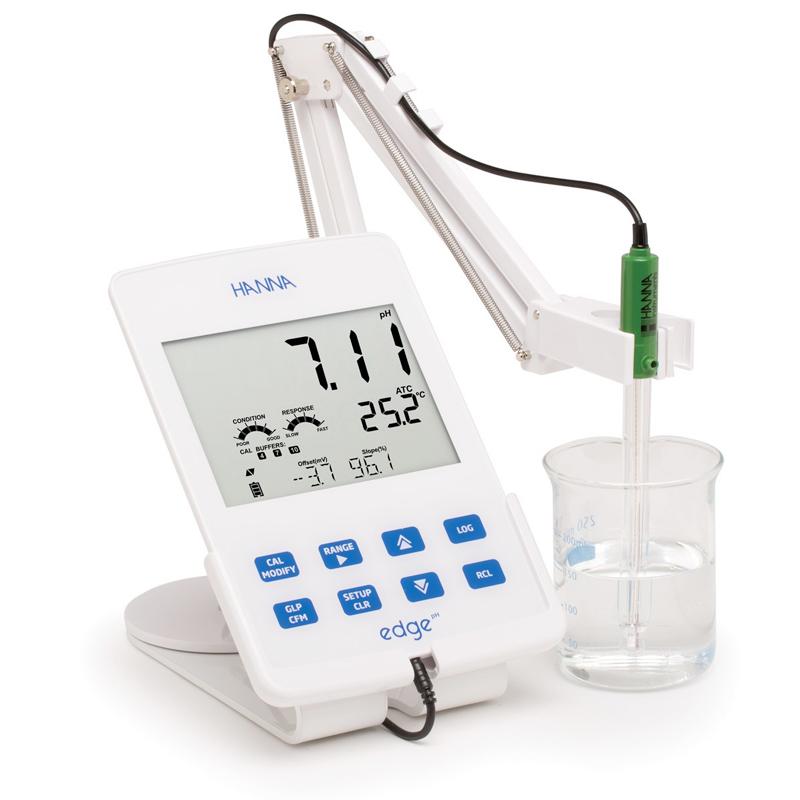

HANNA HI2002 Desktop acidity meter pH-oxidation reduction ORP-temperature ℃ Tester
SE
HI2002
HANNA HI2002 Desktop acidity meterSPEC
HANNA HI2002 Desktop acidity meterDetails
HANNA HI2002 Desktop acidity meterPacking list
- SKU
- NB045245
- PH range
- -2.00 to 16.00pH, -2.000 to 16.000pH (standard mode)
- pH resolution
- 0.01 pH、0.001pH
- Accuracy @25 ℃/77 ° F pH
- ±0.001 pH、±0.01pH
- PH temperature compensation
- Automatic (ATC) temperature compensation, -5.0 to 100.0 ℃ (23.0 to 212.0 ° F)
- Electrode Diagnostic Mode - pH
- Standard diagnostic mode, detection electrode status, Response time, correction range, etc
- Calibration method -pH
- Three-point or five-point automatic calibrate recognition and two user-defined calibrates with built-in standard calibrate points (1.68, 3.00 or 4.01, 6.86, 7.01, 9.18, 10.01, 12.45pH)
- mV range
- ±1000mV
- mV resolution
- 0.1mV
- Accuracy @25 ℃/77 ° F -mV
- ±0.2mV
- ORP Measurement range
- ±2000mV
- ORP resolution
- 0.1mV
- Accuracy @25 ℃/77 ° F -ORP
- ±0.2mV（±999.9 mV）、±1mV（±2000mV）
- Calibration method -ORP
- Single point calibrated
- Measurement range
- -20.0 to 120.0℃（-4.0 to 248.0℉）
- Temperature Resolution & Accuracy
- Resolution: 0.1 ℃, 0.1 ° F; Accuracy ： +/- 0.5 ℃， +/- 0.9 ° F
- Data storage
- Up to 1000 groups (basic mode: 400 groups) Data storage, manual point storage 200 groups Data storage; manual continuous 200 groups Data storage, time interval (up to 600 automatically, manual 100 samples storage)
- Electrode configuration
- HI11310 Built-in temperature sensor and amplifier Fillable Glass composite acidity electrode, 3.5mm Connector, 1m wire length
- Interface
- Standard USB interface, suitable for fast storage flash drive, Micro USB interface, suitable for data cable transmission and charging
- Operating Environment
- 0 to 50 ℃ (32 to 122 ° F), RH max 95%, non-condensing
- Power mode
- 230AC/5VDC power adapter
- Dimension
- 202*140*12mm
- Host Weight
- 250g
Introduction
HI2002 ultra-thin microcomputer acidity pH-oxidation-reduction ORP-temperature ℃/â meter, 12.7mm ultra-thin body, 250g lightweight design, stylish and beautiful touch buttons, integrated screen and button design.
Uniquely automatically identifies the electrode type and automatically enters the measurement project mode. The electrode sensor automatically stores calibration data and automatically retrieves and queries GLP stored data. The new CAL-CHECK⢠electrode verification system prompts electrode contamination and standard buffer information to promptly remind acidity pH electrodes. Current status (good, good, damaged) and electrode connection status.
Data management function, automatic storage of 1000 sets of data including measurement data, GLP data, time and date (interval: 200 sets of data storage; manual: 600 sets of data storage), USB data interface to realize measurement data output, micro USB interface to realize data Transmission and charging functions ensure further analysis and management of measurement data.
Customized special bracket allows the electrode to be flexibly adjusted to a suitable measurement position and the display screen to be adjusted to a better Viewing Angle; it is ultra-light and easy to carry, and uses a touch-sensitive operation panel to effectively prevent damage to the operation panel by the sample. It is suitable for use in the laboratory, on-site or in the field. Quick measurement; customized special hanging bracket and host inlaid design, convenient and quick to hang the host on the wall, saving space and continuously charging the instrument through the power adapter, suitable for continuous and uninterrupted measurements.
Features
Two USB interfaces: the USB host data interface realizes data output with the host, and the micro USB interface can perform data transmission and charging functions, which is convenient and fast;
Full-text mobile display: concise full-text information prompts are displayed at the bottom of the screen, eliminating troublesome abbreviations, making the operation more convenient and faster;
Dedicated charger and electrode bracket: Equipped with a charging interface edge base and an adjustable power loss bracket to protect the host and allow you to easily adjust the operating angle;
Capacitive touch keys: Stylish and beautiful touch keys, integrated screen and keys design, keeping you away from sample residue on the keyboard;
Data storage: 1000 sets of data storage including measurement data, GLP data, time and date;
Easy to see LCD: 5.5-inch large screen display, achieving 150° Viewing Angle range and clear readings from 5 meters away;
GLP Data Management: Last calibration information includes electrode impedance, slope, date, time and calibration point. Automatically identify edge acidity electrode;
Zero space occupation: wall-mounted design saves available space, and the base charging design is more user-friendly;
Built-in Basic mode: Users can use edge's built-in Basic mode to simplify measurement parameters and make the screen display more concise;
3.5mm electrode interface: electrode connection is convenient and fast, with automatic identification;
CAL-CHECK function: In addition to the Hana CAL-CHECK function, which prompts electrode contamination and standard buffer information, it also adds a sensor Sensor Check function to promptly remind the pH electrode probe of damage and electrode connection status;
Stylish appearance: 1/2" (12.7mm) ultra-thin body, 0.8 ounce (250g) lightweight design.
