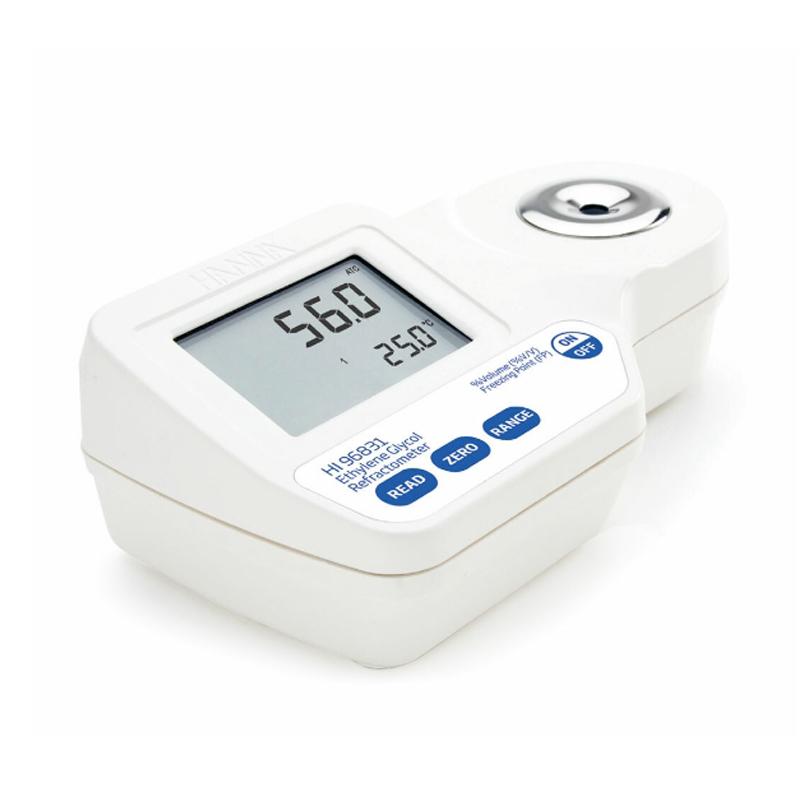

HANNA HI96831 Freezing point refractive analysis of ethylene glycol (glycol), refractometer
SE
HI96831
HANNA HI96831 refractometerSPEC
HANNA HI96831 refractometerDetails
HANNA HI96831 refractometerPacking list
- SKU
- NB045271
- Measurement range -% Volume (% v/v)
- 0 to 100%
- Resolution -% Volume (% v/v)
- 0.10%
- Accuracy (@25 C/77 ° F) -% Volume (% v/v)
- ±0.2%
- Measurement range - freezing point (FP)
- 0 to -50℃(32 to -58℉)
- Resolution, Freezing Point (FP)
- 0.1℃(0.1℉)
- Accuracy @25 C/77 ° F Freezing Point (FP)
- ±0.5℃(±0.1℉)
- Temperature Measurement Range
- 0 to 80 ℃（32 to 176 ℉）
- temperature resolution
- 0.1℃（0.1 ℉）
- Temperature Accuracy @25 C/77 ° F
- ±0.3℃（±0.5 ℉）
- Temperature compensation
- Automatic compensation 0-40 ℃ (32-104 ° F)
- Measurement time
- Approximately 1.5 seconds
- Minimum sample Volume
- 100 μL (completely covering the prism)
- Light source
- Yellow LED
- Sample room
- Stainless Steel Sample Chamber and Hard Glass Prisms
- Automatic shutdown
- Automatic shutdown after three minutes of use
- Shell protection class
- IP65
- Power supply type/Power life
- 9V/about 5000 sets of readings
Introduction
HI96831 Ethylene glycol (glycol) freezing point refractometer analysis refractometer adopts refractive index measurement method, which uses the measurement of refractive index to determine the volume percentage and freezing point of ethylene glycol solution. It is simple to operate and fast to analyze, and provides a good method for measuring the concentration and freezing point of ethylene glycol (also known as "glycol", "1.2-ethylene glycol, referred to as EG") in food.
This digital refractometer eliminates the uncertainties associated with mechanical refractometers. HI96831 samples were measured after simple user calibration using distilled or deionized water. In seconds, refractive index and temperature are measured and converted to one of two measurement units; % volume or freezing point. The meter uses the internationally recognized reference for unit conversion and temperature compensation of glycol solutions (e.g. CRC Handbook of Chemistry and Physics, 87th Edition).
Features
Dual-line LCD display, dual-line LCD displays measurement values ââand temperature readings at the same time;
ATC, automatic temperature compensation;
Easy to measure, drop a few drops of sample into the well and press the READ key;
BEPS, which alerts users that low battery power may adversely affect readings;
IP65 waterproof, can work in harsh laboratory and field conditions;
Fast, accurate results, with readings displayed in approximately 1.5 seconds;
Single point calibration, use distilled or deionized water;
For micro samples, only 2 drops of sample are needed;
Automatically shuts down if not used for three minutes;
Stainless steel sample chamber, resistant to salt water corrosion.
