AMITTARI AS-120A Shore Durometer Hardness Range 20-90A

SE
Adopt 0.79 truncated cone stylus, Hardness range 20-90A, suitable for testing plastic Hardness, rubber Hardness, etc.
$291.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI
Similar products

AMITTARI AS-120A Shore Shore DurometerSPEC

AMITTARI AS-120A Shore Shore DurometerDetails

AMITTARI AS-120A Shore Shore DurometerPacking list

SKU
NB004528
stylus
0.79 truncated cone
Measuring range
20~90A
display
0.1H
resolution
0.1H
Measurement error
≤1H
Display parameters
Hardness/Average/MAX Maximum
Operating Environment
Temperature 0~40 ℃; Humidity < 90RH
Power
2X1.5v AAA 7 batteries
Dimensions
176*63*25mm
Weight
310G (without battery)
Optional accessories
Standard Hardness chip, USB data cable output, RS232C data cable output, Bluetooth Bluetooth Data output
AS-120A
Shore Shore Durometer
Adopt 0.79 truncated cone stylus, Hardness range 20-90A, suitable for testing plastic Hardness, rubber Hardness, etc.

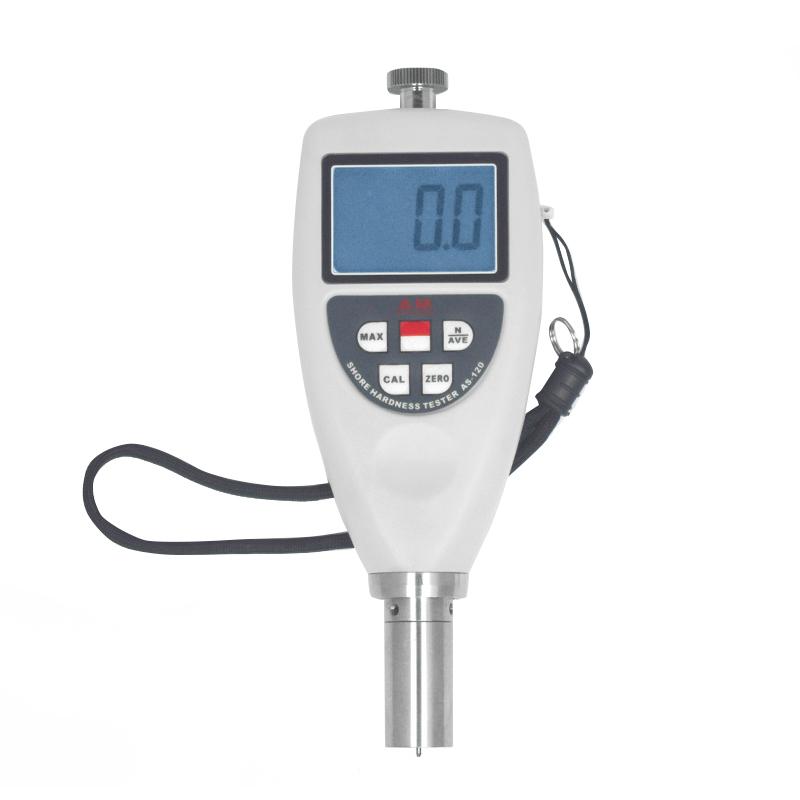

AMITTARI AS-120A Shore Durometer Hardness Range 20-90A Picture

Brief Introduction of AS-120 Series Shore Hardness Tester

An Miao AS-120 series Shore Hardness Tester is mainly used to measure the indentation hardness of the material. It has a variety of different scales to indicate the hardness of the tested material, divided into AS-120A, AS-120B, AS-120C, Eight models of AS-120D, AS-120E, AS-120O, AS-120DO, and AS-120OO provide eight measuring instruments with different measuring probe sizes, measurable objects and hardness values to meet the needs of users for the hardness of different objects Measure the needs of your application.

application standard

GB/T 531-1999 "Rubber Pocket Durometer Indentation Hardness Test Method"; GB/T 2411-80 "Plastic Shore Hardness Test Method"; DIN53505, ISO868, ISO7619, ASTMD2240, JIS K7215.

AS-120 product features

* Integrated design, small size and light weight.

* It has the functions of maximum value lock, underVoltage alarm indication, automatic shutdown and manual shutdown.

* Use USB data line output to communicate with PC.

* Provide Bluetooth data output option.

* When the battery Voltage is lower than the specified value, it will be automatically indicated.

* Digital display, no parallax.

* metric/imperial unit conversion, with average calculation function.

* Automatic shutdown and manual shutdown.

* Using computer technology, digital filtering technology and many other professional technologies, it can accurately measure the material thickness.

* Using optional RS232C software and cables, it can communicate with PC computer to realize functions of data collection, processing, analysis and printing.

Functional Structure Diagram

Functional Structure Diagram of An Miao AS-120 Series Shore Hardness Tester

AS-120 Model Measurable Materials List

modelStylusMeasurable materialHardness value
A0.79 truncated coneSoft rubber, soft vulcanized rubber, natural rubber, nitrile rubber, thermoplastics, thermoplastic elastomers, waxes, felt products, leather products20-90A
BR0.1 coneModerately hard rubber, thermoplastics, thermoplastic elastomers, fibrous materials for paper productsGreater than 90A; less than 20D
C0.79 truncated coneMedium hardness rubber, medium hardness plastic, thermoplastic, thermoplastic elastomerGreater than 90B; less than 20D
D.0.79 truncated coneHard plastics, hard rubbers, hard thermoplastics, hard thermoplastic elastomersMore than 90A
doR1.2 hemisphericalModerately hard rubber, thermoplastics, thermoplastic elastomers, high density textile spindlesGreater than 90C; less than 20D
oR1.2 hemisphericalSoft rubber, thermoplastics, thermoplastic elastomers, very soft plastics, thermoplastics, medium density textile spindlesless than 20DO
E.R2.5 hemisphericalHard sponge, EVAGreater than 90DO; less than 20A
OOR1.2 hemisphericalVery soft rubber, very soft plastics and thermoplastics, sponges, foams, low density textile spindles, human and animal tissuesless than 20O

Display of AS-120 Shore Hardness Tester

An Miao AS-120A/B/C/D/E/O/DO/OO Shore Hardness Tester Front View

An Miao AS-120A/B/C/D/E/O/DO/OO Shore Hardness Tester panel details

An Miao AS-120A/B/C/D/E/O/DO/OO Shore Hardness Tester image

An Miao AS-120A/B/C/D/E/O/DO/OO Shore Hardness Tester packaging accessories

An Miao AS-120A/B/C/D/E/O/DO/OO Shore Hardness Tester with bracket display


FAQ
QCan This Instrument Measure the Hardness of This Rubber Tire?
A Sure.
QIs this Shore Shore Durometer available in rubber and plastic?
A Yes, if the Hardness is not very hard, choose AS-120A. The Hardness Tester has multiple models to choose from depending on the Hardness.
QWhich one is recommended for the Hardness of Gum?
A Hardness of gum recommends AS-120A, use A if the gum hand is pressed with resilience, and use D if it is not pressed, use D if it is hard.
QWhich model of Hardness Tester is recommended for testing the Hardness of rubber, TPU, and film?
A AS-120A, and AS-120D, if the rubber can be pressed by hand, use AS-120A, if not, use AS-120D, if softer, there are 6 Miscellaneous models to choose from, Shore Shore Durometer has 8 models, from the softest to the hardest
QShore hardness tester for JJG304
A This AS-120A Shore hardness tester is.
QShore hardness tester with durometer bracket?
A Hello, no, you need to buy it separately if you need it.
