HUINUO intelligent TM3000pro laboratory wire rod drawdown blade coater Film Coater

SE Boutique

Wire rod/drawdown blade, servo motor, simple wire rod groove design, wire rod installation is simple, drawdown blade clamshell design, easy cleaning, high Smoothness Full tempered Glass Spreader baseplate, wear resistance, anti-corrosion and heat resistance.

$2713.00/set

PromotionLoading...

Coupon

Model：

TM3000pro

Certificate

HuiNuo

Chinese general agent

Contact

Details SPEC Con VIDEO CAT OI

HuiNuo TM3000pro Automatic Film ApplicatorSPEC

HuiNuo TM3000pro Automatic Film ApplicatorDetails

HuiNuo TM3000pro Automatic Film ApplicatorPacking list

SKU: NB045280

Coating method: Bar + drawdown blade

Coating speed: 1~ 300Mm/s stepless speed regulation (can be customized)

Substrate clamping method: fixture

Coating table material: Glass plate

Coating table size: 600*300mm

Effective coating Area: 400 * 300Mm (can be customized)

Mayer Rod Thickness Range: Different bar numbers have different thicknesses, with high-precision imported bars

Mayer Rod Accuracy: ±0.001mm

Drawdown blade thickness range: 0.1~ 10Mm (clamshell design is easy to clean)

Drawdown blade material: Die steel

Drawdown blade application width: 300mm

Drawdown blade Accuracy: ±0.003mm

Drive motor: Servo motor

Power: 600w

Operating language: Chinese (can be customized in English)

Display: Color LCD touch screen

Host Power Supply: 220V/50HZ (can be customized 110V/60HZ)

Dimension: 658*438*205mm（L*W*H）

optional feature: Heating, vacuum adsorption

TM3000pro

Automatic Film Applicator

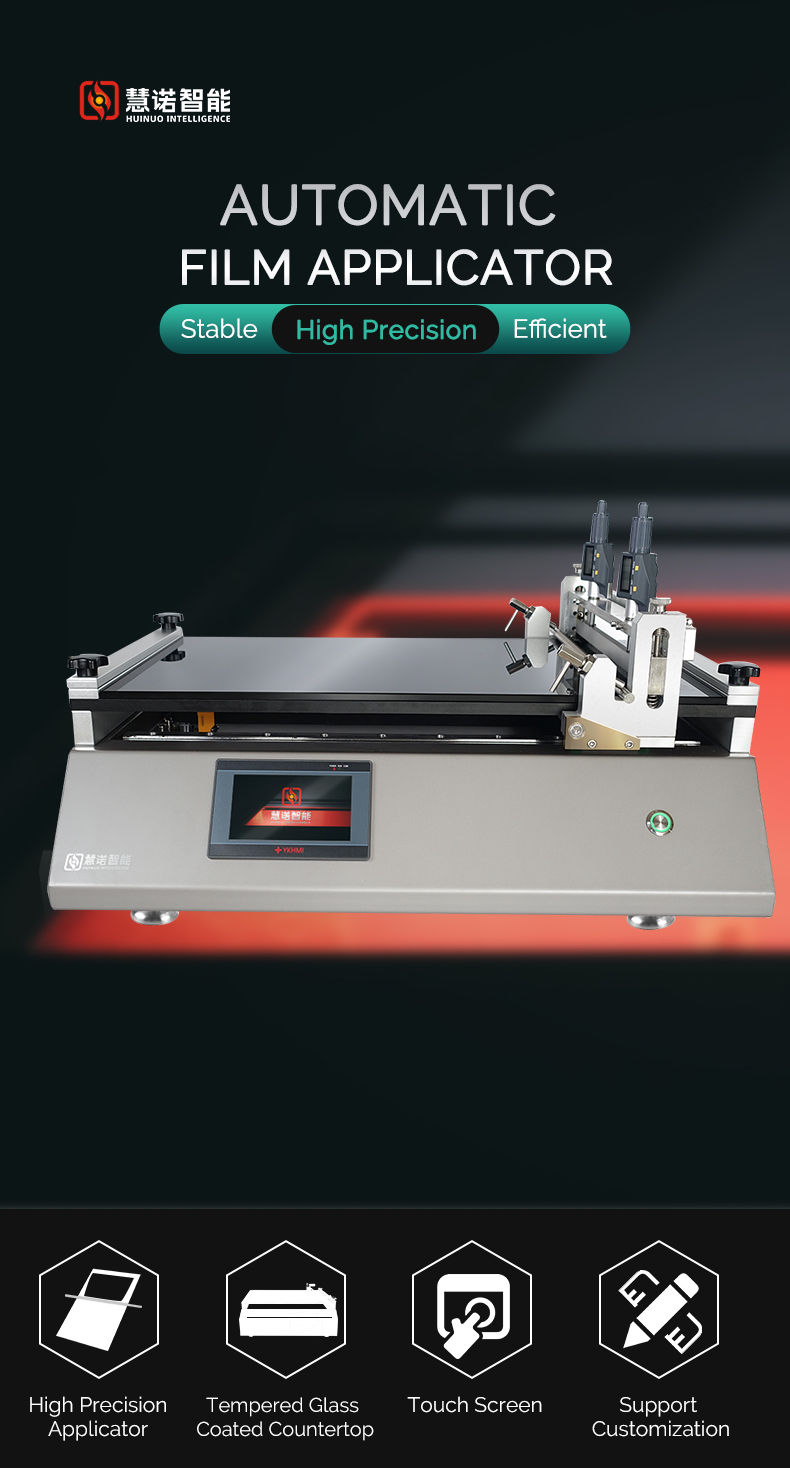

HUINUO TM3000pro laboratory wire rod drawdown blade coater servo motor Figure 1

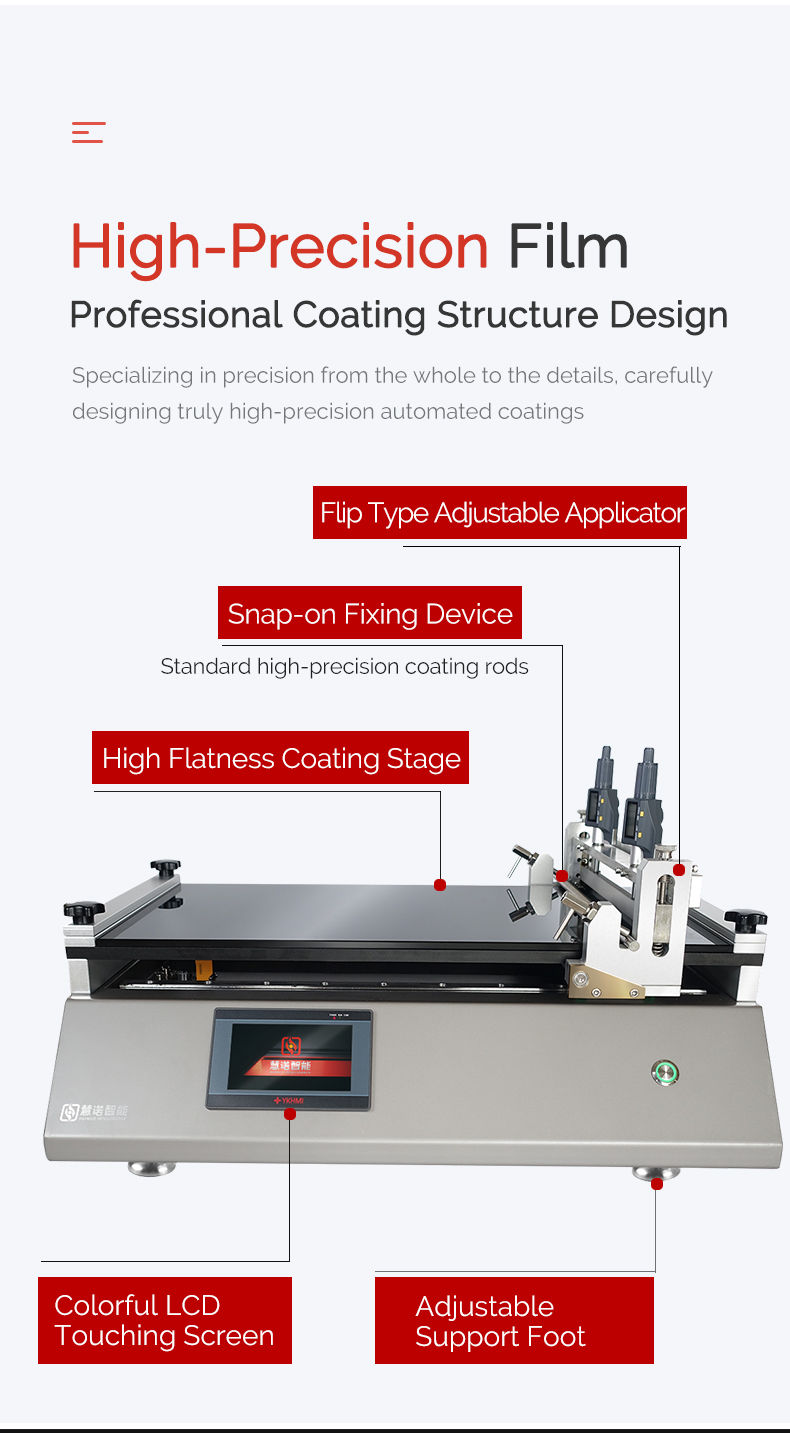

HUINUO TM3000pro laboratory wire rod drawdown blade coater servo motor Figure 2

HUINUO TM3000pro laboratory wire rod drawdown blade coater servo motor Figure 3

HUINUO TM3000pro laboratory wire rod drawdown blade coater servo motor Figure 4

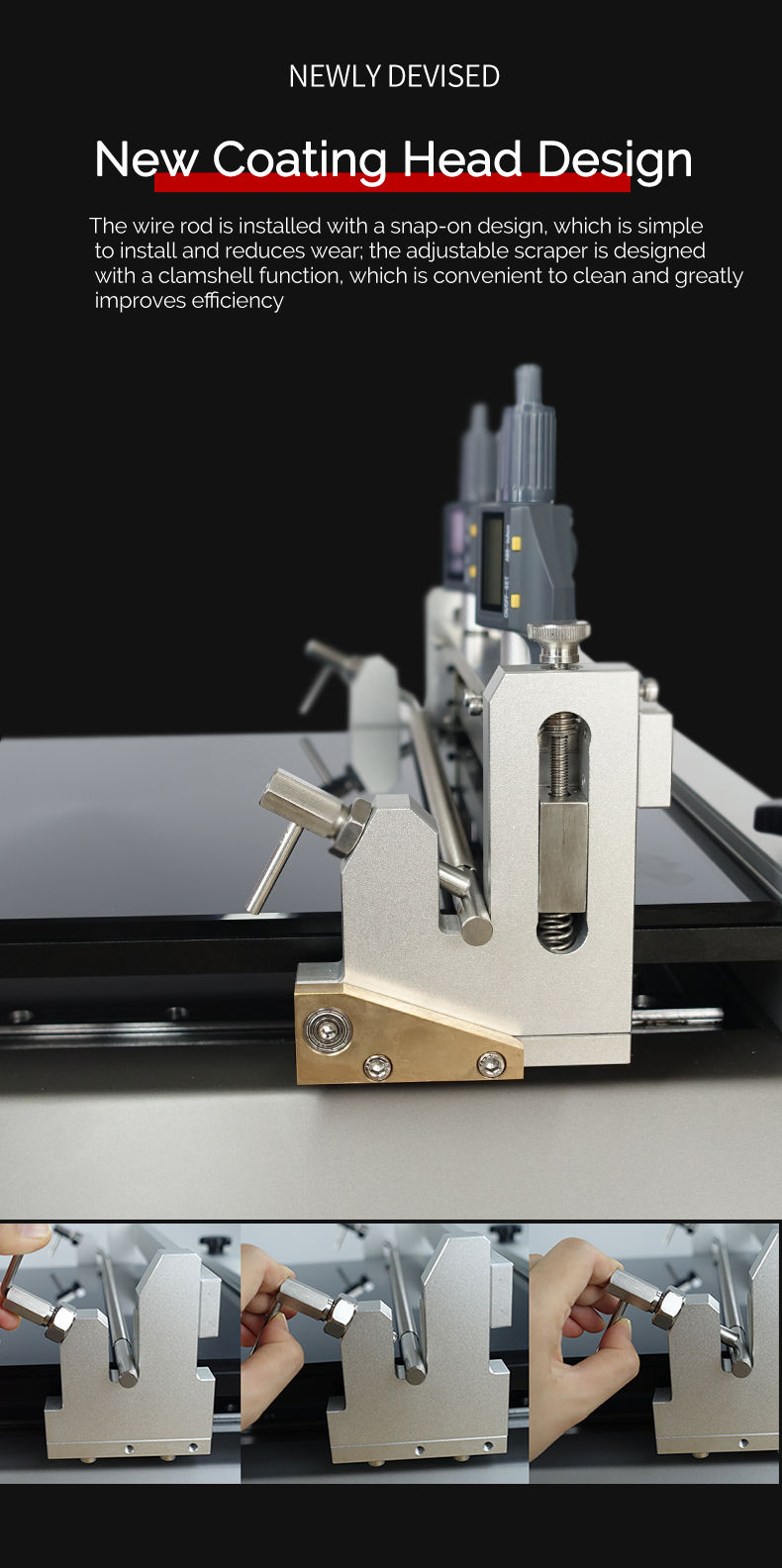

HUINUO TM3000pro laboratory wire rod drawdown blade coater servo motor Figure 5

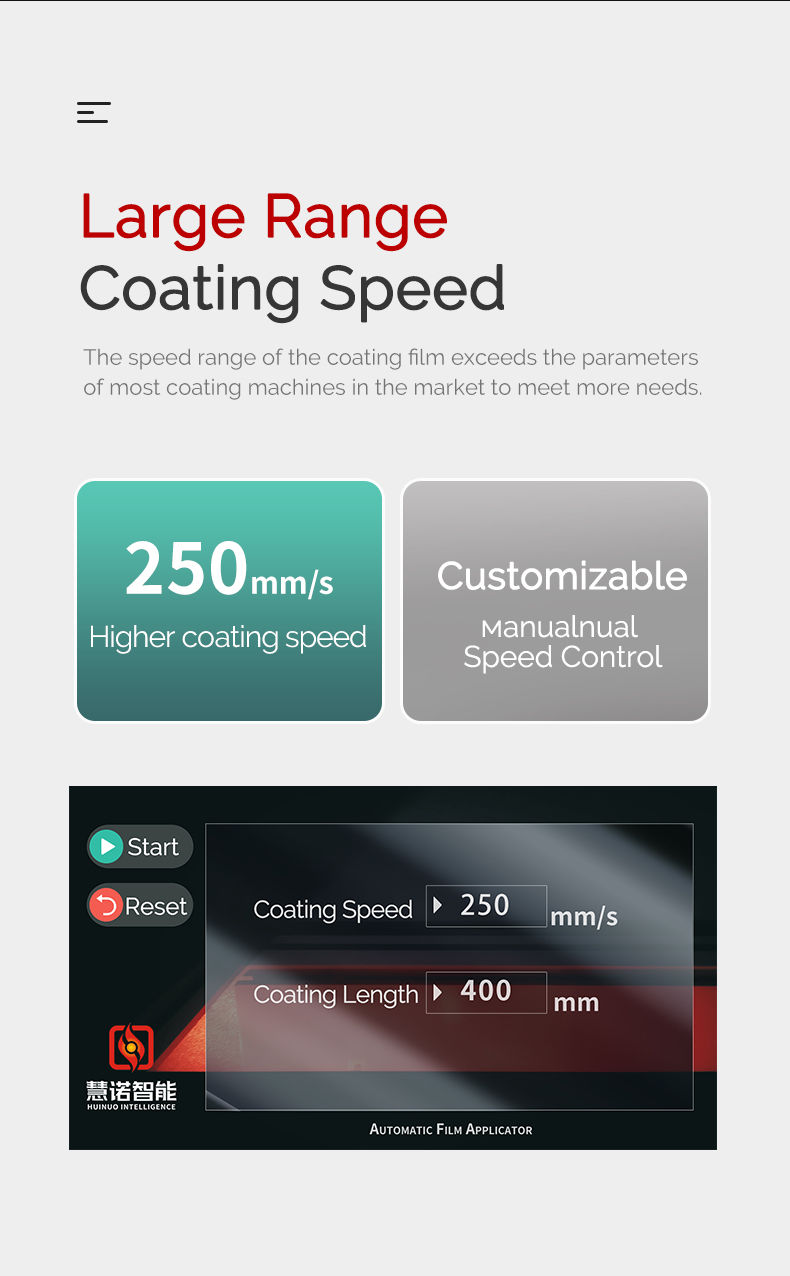

HUINUO TM3000pro laboratory wire rod drawdown blade coater servo motor Figure 6

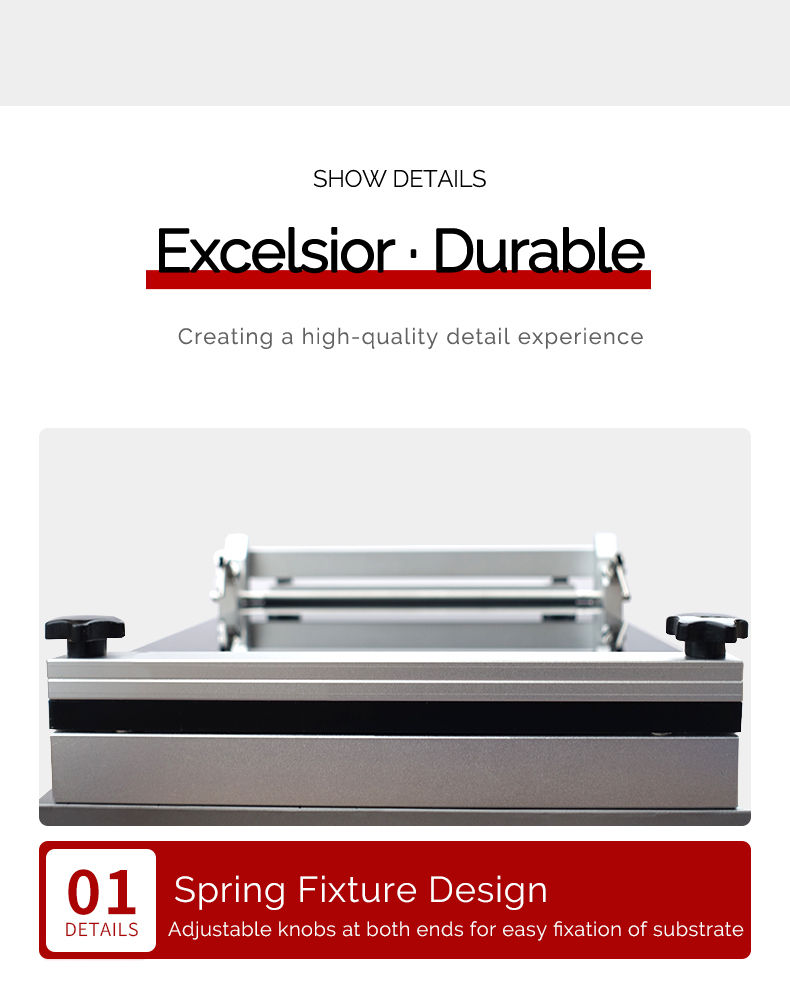

HUINUO TM3000pro laboratory wire rod drawdown blade coater servo motor Figure 7

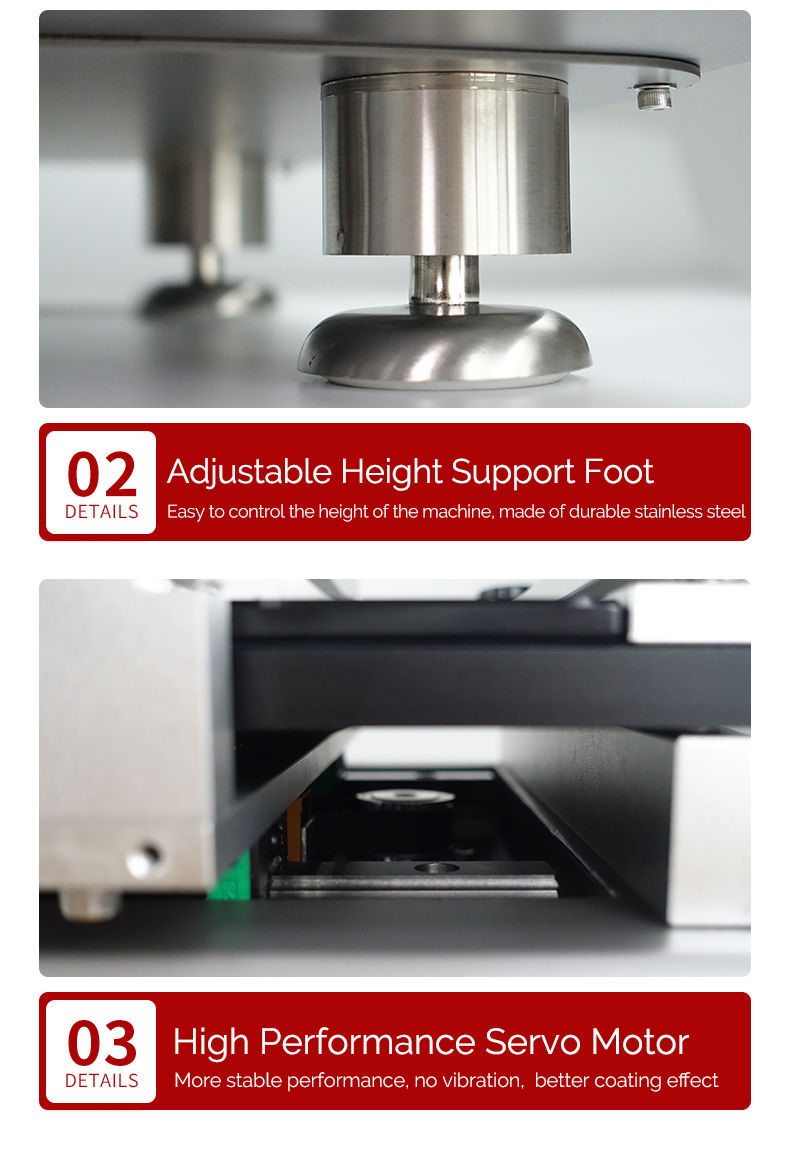

HUINUO TM3000pro laboratory wire rod drawdown blade coater servo motor Figure 8

HUINUO TM3000pro laboratory wire rod drawdown blade coater servo motor Figure 9

HUINUO TM3000pro laboratory wire rod drawdown blade coater servo motor Figure 10

HUINUO TM3000pro laboratory wire rod drawdown blade coater servo motor Figure 11

product description

The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The Principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.

This coating machine is a wire bar blade coating machine with two functions: wire bar coating and blade coating. The innovative wire bar installation method and flip-type scraper head greatly improve the coating efficiency, facilitate cleaning, and have speed control. And the coating length adjustment function is suitable for high-precision automatic coating in laboratories, and film production and proofing in university research institutes, new materials, lithium batteries, glue, resin and other laboratories.

Applications

The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, resins, glues, polymer materials, pharmaceuticals, etc. It can be applied on glass, cardboard, and cloth.

Features

1) The glass tabletop is a 3C certified national standard authentic fully tempered glass plate, original gold crystal, heat-resistant to 600℃, scratch-resistant and scratch-resistant

2) Big brand differential regulator, high film thickness control accuracy

3) Flip-type doctor blade coating head, easy to clean

4) Equipped with a high-precision Film Applicator, the original imported wire rod can apply the film uniformly and with high precision

5) Touch screen control panel, easy to operate

6) Coating length and coating speed can be adjusted freely

FAQ

QI want to do a Spreader test of lithium battery paste in the laboratory. Which Film Applicator should I choose?

A TM3000Pro Automatic Film Applicator, which supports bar and drawdown blade coating methods, can precisely control the thickness and speed of Spreader, especially suitable for lithium battery slurry, which requires uniform Spreader material to ensure high sample conformity.

QIs this Film Applicator suitable for Moulding Glue and Resin Materials? Is it easy to clean?

A Convenient, TM3000pro adopts clamshell drawdown blade head and bar design, cleaning is simple and fast, avoiding residue, and Spreader accuracy is high, which can help you quickly obtain uniform film samples in glue and Resin experiments.

QStainless steel plate coated with insulating coatings, Film thickness 100-700um, Film thickness requirements adjustable, choose which coater?

A Drawdown Bar & Blade type coater, can meet the high accuracy of thin coating and thick coating, drawdown blade Film thickness can be adjusted.

QCan coater doctor blades be removed for cleaning?

A This one is a clamshell design, no need to dismantle and unload, just need to turn it horizontally to easily clean the doctor blade, and the operation is simpler and faster.

QFilm Applicator Servo Motor Good Where?

A The servo motor runs more stably, ensuring the continuous Stability of the Film Applicator film, and has an adaptive system for more precise control of the film.

QWhat is the adjustable film thickness range of this doctor blade coater?

A Doctor blade thickness range of 0.1~ 10mm.
