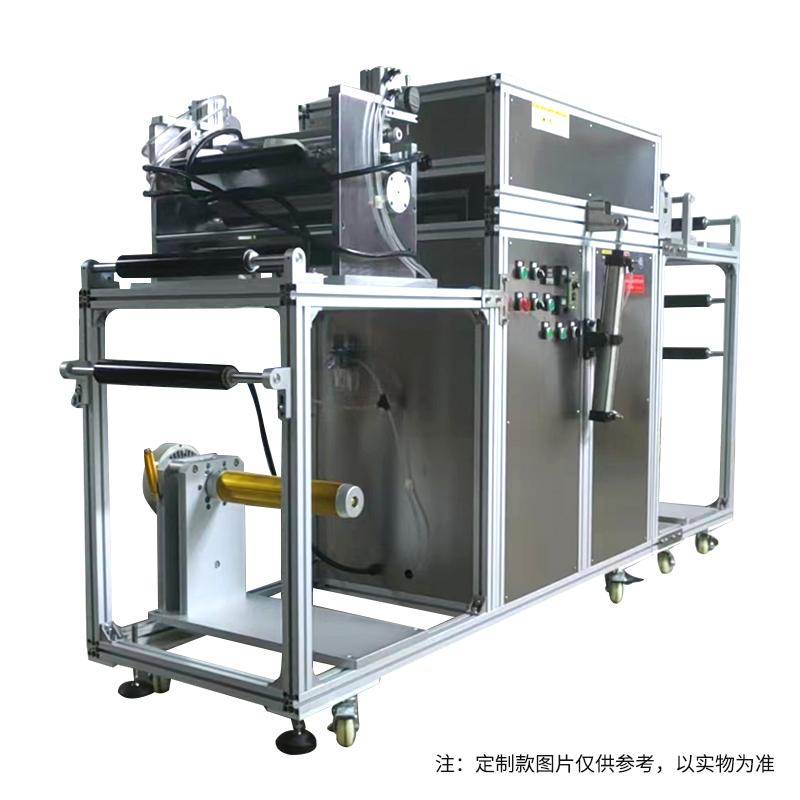

Automatic Film Applicator with rolling + scraping + drying + winding function

NBC-DJ6-500

Automatic Film Applicator

With unwinding, scraping, drying, winding functions, with drawdown blade head device, Spreader speed 1-10m/min, wet film thickness 0.005-3mm, application width 100-500mm adjustable, roller heating temperature up to 200 ℃.

Introduction

The pilot roll automatic coating machine is suitable for coating non-elastic materials such as paper, film, aluminum foil, plastic, non-woven fabrics, etc. with water-based glue. It is an automatic oven coil coating machine with unwinding, scraping, drying and rewinding functions.

product structure

The machine consists of a machine body, a gluing width adjustment device, a feeding rack, a gluing roller set, a thickness adjustment dial indicator, a transmission platform, a traction roller set, and a transmission mechanism.

1. Body: The body of the equipment is entirely composed of aluminum alloy + high-static spraying plate.

2. Glue width adjustment device: The width adjustment device is composed of food-grade plastic and adjustable supports.

3. Unloading rack: The machine is equipped with two unloading racks. When the two materials are misaligned during the lamination process, the deviation correction device automatically adjusts to move the rack left and right to achieve the effect of aligning the two materials.

4. Glue coating roller set: The rubber coating roller set is made of double roller precision machined parts with smooth transmission.

6. Thickness adjustment dial indicator: Adjust the required coating thickness when applying glue. Rotate the left and right hand wheels on the rubber coating roller frame clockwise or counterclockwise to adjust the thickness of the glue coating. The specific thickness is determined according to the dial indicator.

7. Transmission platform: The transmission platform is made of stainless steel. Its main function is to smoothly transmit the base material after gluing to the next process.

8. Traction roller group: Pull the base material to between the upper and lower rollers of the traction roller by hand. Tighten the hand wheel on the frame to make the traction roller and the rubber ring of the upper roller contact the lower roller. The traction roller group will drive the base material through power transmission. The material is pulled over to complete the coating work .

Packing list：Machine x1, Manual x1, Encasement List x1, Certificate of Conformity x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
