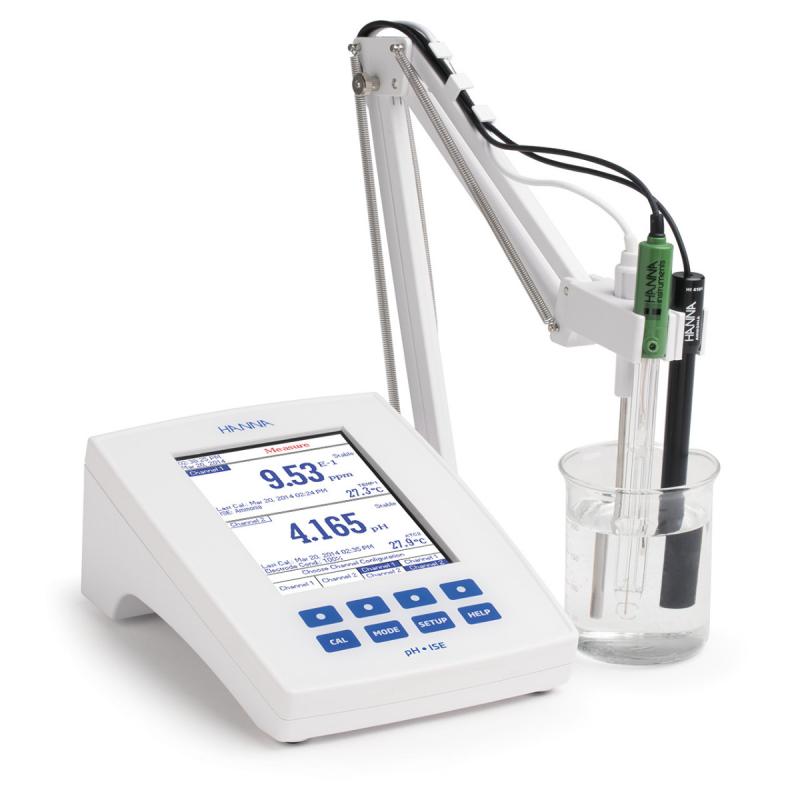

HANNA HI5222 Professional desktop acidity pH/mV-temperature Tester

HI5221

Professional desktop acidity pH/mV-ISE-temperature Tester

pH/mV/temperature, calibrate intelligent authentication and calibrate reminder function, GLP calibrate record review function, can use the HI92000 data cable to transfer data directly to the PC, can convert the recorded data into real-time Linear dispersion map.

The HI5222 is an advanced, research-grade, dual-channel benchtop pH/ISE/mV meter that is fully customizable with a large color LCD, capacitive touch keys, and a USB port for computer connection. The HI5222 is packed with features including 5-point calibration, selectable resolution, data logging, alarm limit, GLP, and much more. It retains simplicity and has both a dedicated key for day-to-day operations and a virtual key that guides the user through the setup options.

peculiarity

Four item measurements

The H15222 laboratory high-precision water quality analysis Tester realizes the rapid and accurate measurement of acidity, pH-redox, ORP-ion concentration, ISE-temperature and other conventional important water quality indicators. Both measurement channels support separate pH/ORP electrodes, ISE ion electrodes, and separate temperature and reference electrode inputs, enabling simultaneous measurement of four parameters. The measurement data of the two channels can be displayed simultaneously on separate screens. The new development trend of water quality instruments.

User-friendly interface

Support multiple language selection, on-screen measurement and calibration operation prompts, convenient and fast.

User-defined features are powerful

Users can customize the display interface according to their needs. Basic mode, GLP management mode, and real-time chart display can be set. Up to 10 custom files can be stored or viewed, i.e. user-defined settings include: mode, standard point, equipotential point, ISE measurement unit and ISE sensor model, temperature unit, resolution and other information. Users can change the measurement items and use the set custom file function, which can greatly save the measurement time.

Cal CheckTM diagnostic function

HANNA's unique Cal CheckTM calibration diagnostic system avoids measurement data errors due to sensor failure or contamination of the calibration fluid during calibration. At the end of calibration, a graph of the electrode status will be displayed.

ISE ion concentration increment method

Ion concentration ISE mode, unique ion concentration increment measurement method, according to user needs, a variety of ion concentration units are optional, up to five points of automatic identification calibration and five user-defined calibration, built-in five standard calibration points; Up to 200 measurement reports can be stored and retrieved, and the data can be printed and transferred to a PC with optional H192000 software and corresponding data cables.

Ion increment technology reduces reading errors caused by factors such as temperature, viscosity, pH, or ionic strength; The ion concentration of a special sample can be detected by increasing or decreasing the known concentration.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
