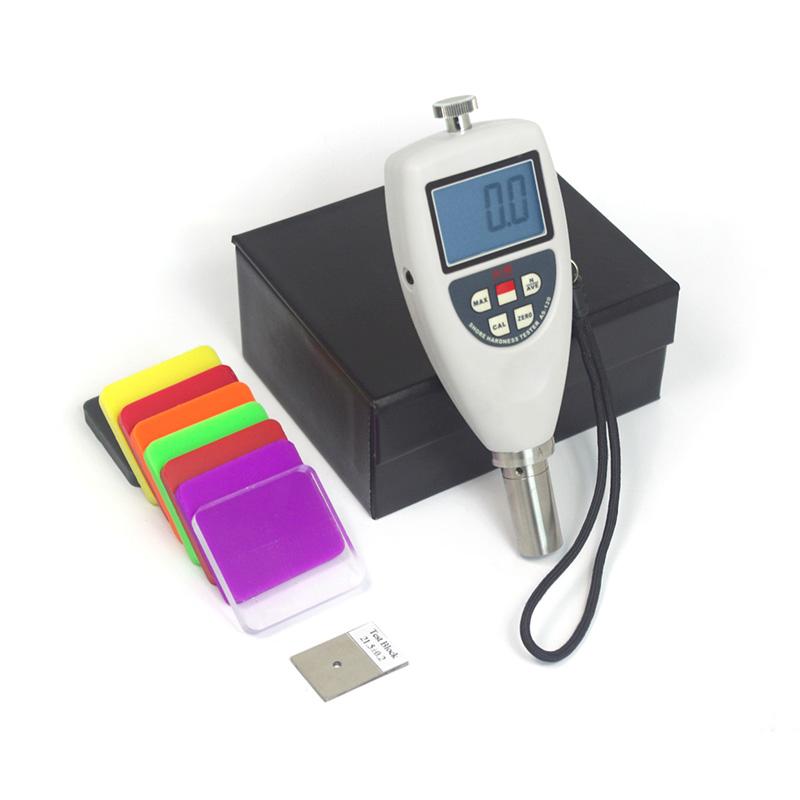

AMITTARI AS-120E Shore Durometer

AMITTARI AS-120E Shore Durometer with R2.5 hemispherical stylus, Hardness range greater than 90DO; less than 20A

$291.00/set

PromotionLoading...

Coupon

Model：

AS-120E

Certificate

AMITTARI

Manufacturer authorization

Contact

Details SPEC Con OI

AMITTARI AS-120E Shore Shore DurometerSPEC

AMITTARI AS-120E Shore Shore DurometerDetails

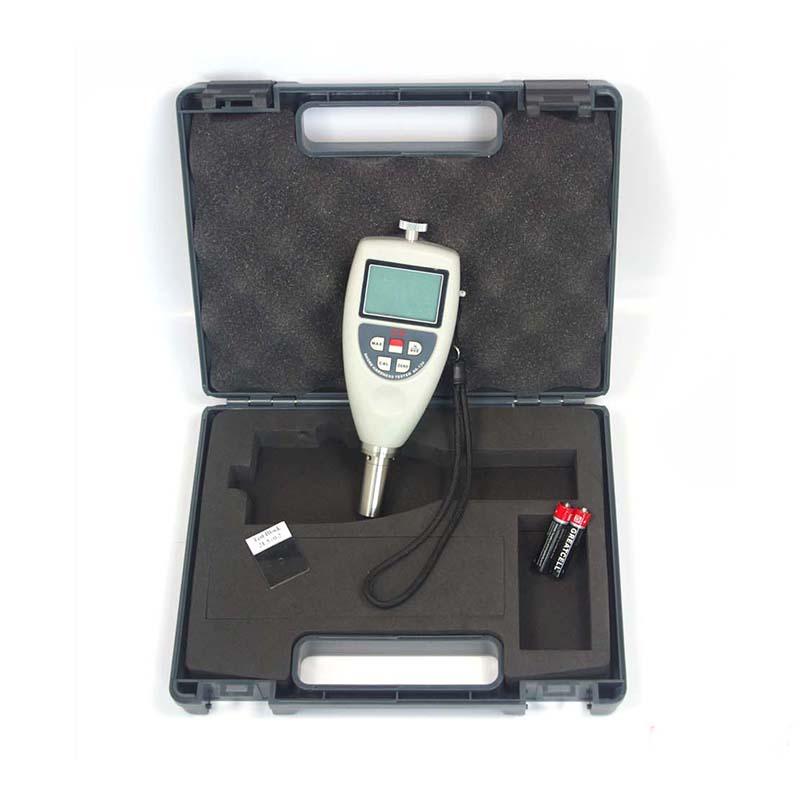

AMITTARI AS-120E Shore Shore DurometerPacking list

SKU: NB004536

stylus: R2.5 hemispherical

Measuring range: >90DO；<20A

display: LCD display

resolution: 0.1H

Measurement error: ≤1H

Display parameters: Hardness/Average/MAX Maximum

Operating Environment: Temperature 0~40 ℃; Humidity < 90RH

Power: 2X1.5v AAA 7 batteries

Dimensions: 176*63*25mm

Weight: 310G (without battery)

Optional accessories: Standard Hardness chip, USB data cable output, RS232C data cable output, Bluetooth Bluetooth Data output

AS-120E

Shore Shore Durometer

Brief Introduction of AS-120 Series Shore Hardness Tester

An Miao AS-120 series Shore Hardness Tester is mainly used to measure the indentation hardness of the material. It has a variety of different scales to indicate the hardness of the tested material, divided into AS-120A, AS-120B, AS-120C, Eight models of AS-120D, AS-120E, AS-120O, AS-120DO, and AS-120OO provide eight measuring instruments with different measuring probe sizes, measurable objects and hardness values to meet the needs of users for the hardness of different objects Measure the needs of your application.

application standard

GB/T 531-1999 "Rubber Pocket Durometer Indentation Hardness Test Method"; GB/T 2411-80 "Plastic Shore Hardness Test Method"; DIN53505, ISO868, ISO7619, ASTMD2240, JIS K7215.

AS-120 product features

* Integrated design, small size and light weight.

* It has the functions of maximum value lock, underVoltage alarm indication, automatic shutdown and manual shutdown.

* Use USB data line output to communicate with PC.

* Provide Bluetooth data output option.

* When the battery Voltage is lower than the specified value, it will be automatically indicated.

* Digital display, no parallax.

* metric/imperial unit conversion, with average calculation function.

* Automatic shutdown and manual shutdown.

* Using computer technology, digital filtering technology and many other professional technologies, it can accurately measure the material thickness.

* Using optional RS232C software and cables, it can communicate with PC computer to realize functions of data collection, processing, analysis and printing.

Functional Structure Diagram

Functional Structure Diagram of An Miao AS-120 Series Shore Hardness Tester

AS-120 Model Measurable Materials List

model	Stylus	Measurable material	Hardness value
A	0.79 truncated cone	Soft rubber, soft vulcanized rubber, natural rubber, nitrile rubber, thermoplastics, thermoplastic elastomers, waxes, felt products, leather products	20-90A
B	R0.1 cone	Moderately hard rubber, thermoplastics, thermoplastic elastomers, fibrous materials for paper products	Greater than 90A; less than 20D
C	0.79 truncated cone	Medium hardness rubber, medium hardness plastic, thermoplastic, thermoplastic elastomer	Greater than 90B; less than 20D
D.	0.79 truncated cone	Hard plastics, hard rubbers, hard thermoplastics, hard thermoplastic elastomers	More than 90A
do	R1.2 hemispherical	Moderately hard rubber, thermoplastics, thermoplastic elastomers, high density textile spindles	Greater than 90C; less than 20D
o	R1.2 hemispherical	Soft rubber, thermoplastics, thermoplastic elastomers, very soft plastics, thermoplastics, medium density textile spindles	less than 20DO
E.	R2.5 hemispherical	Hard sponge, EVA	Greater than 90DO; less than 20A
OO	R1.2 hemispherical	Very soft rubber, very soft plastics and thermoplastics, sponges, foams, low density textile spindles, human and animal tissues	less than 20O
