RDS 12 #1/4 "Applicator rod film thickness 27.4 μm rod diameter 6.35mm

SE
Using formed molding technology, the rod diameter is 6.35mm, and the film can be 27.4 μm. It has the characteristics of continuous wire and easy cleaning.
$155.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 12# 1/4“ Applicator rod 1/4 "SPEC

RDS 12# 1/4“ Applicator rod 1/4 "Details

RDS 12# 1/4“ Applicator rod 1/4 "Packing list

SKU
NB004537
Production process
formed
WFT
27.4μm
diameter
6.35mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
12# 1/4“
Applicator rod 1/4 "
Using formed molding technology, the rod diameter is 6.35mm, and the film can be 27.4 μm. It has the characteristics of continuous wire and easy cleaning.
RDS 12 #1/4 "Applicator rod film thickness 27.4 μm rod diameter 6.35mm Picture

Product description

The RDS wire rod coater can be said to have a long history. 80 years of industry experience have already made its technology and precision reach a higher level, and it has also had a great influence on related industries that require coating film preparation samples. RDS Wire Bar Coaters are widely used in more than 50 subdivision industries, and are also used in experimental research by many domestic (CN) researchers and published related papers. U.S. RDS#12 wire Bar Coater can coat a film with a wet film thickness of 27.4 microns, a full length of the bar of 400 mm, and a coating width of 30 mm.

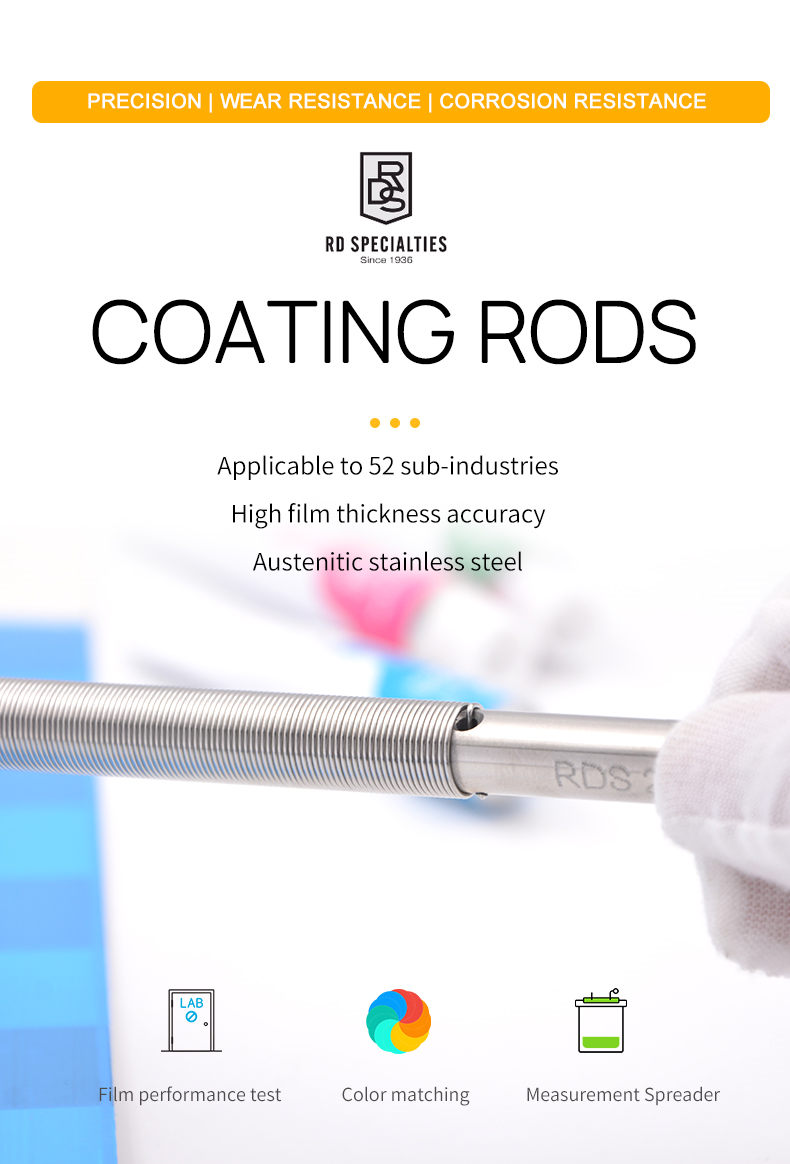

RDS coating Rods Figure 1



RDS coating Rods Figure 2



RDS coating Rods Figure 3



RDS coating Rods Figure 4

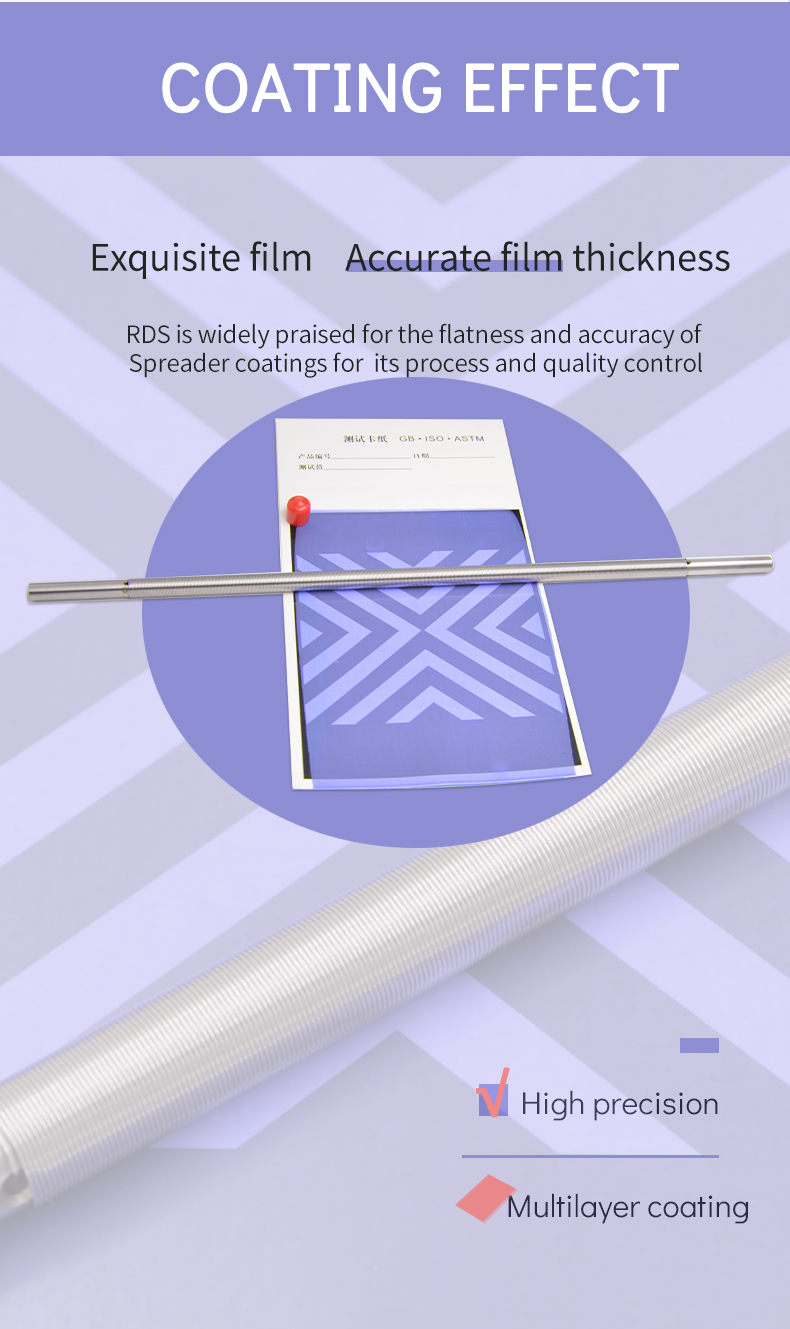

RDS coating Rods Figure 5



RDS coating Rods Figure 6



RDS coating Rods Figure 7

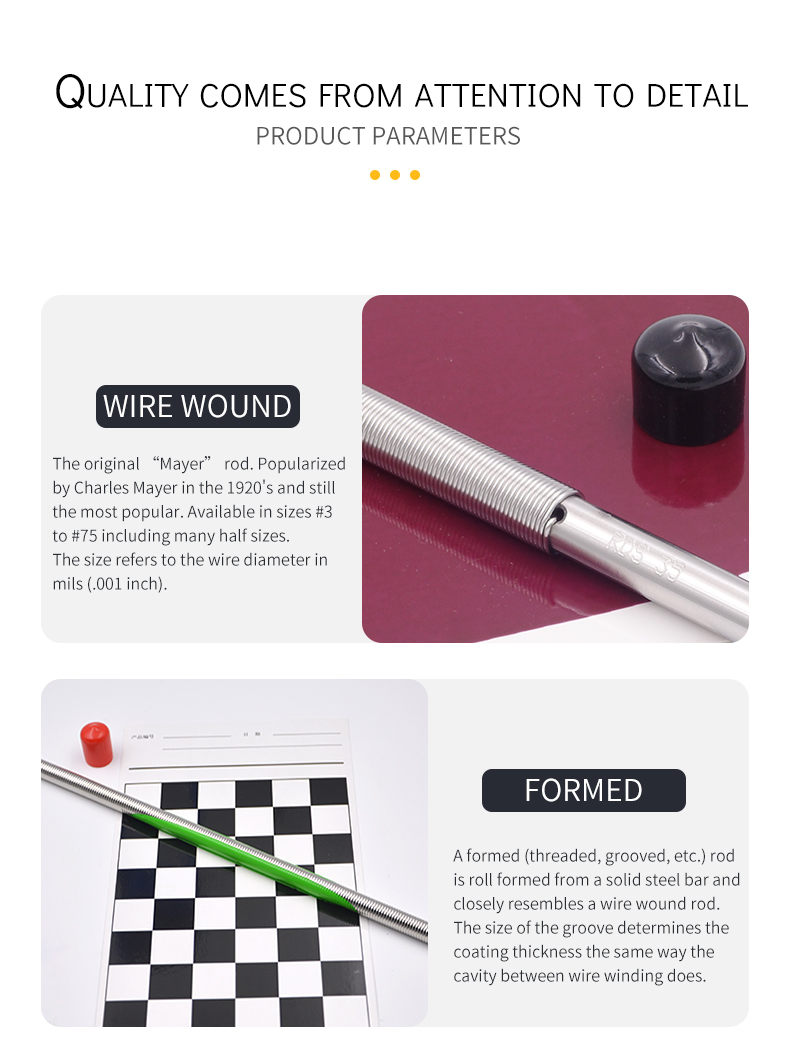

RDS coating Rods Figure 8

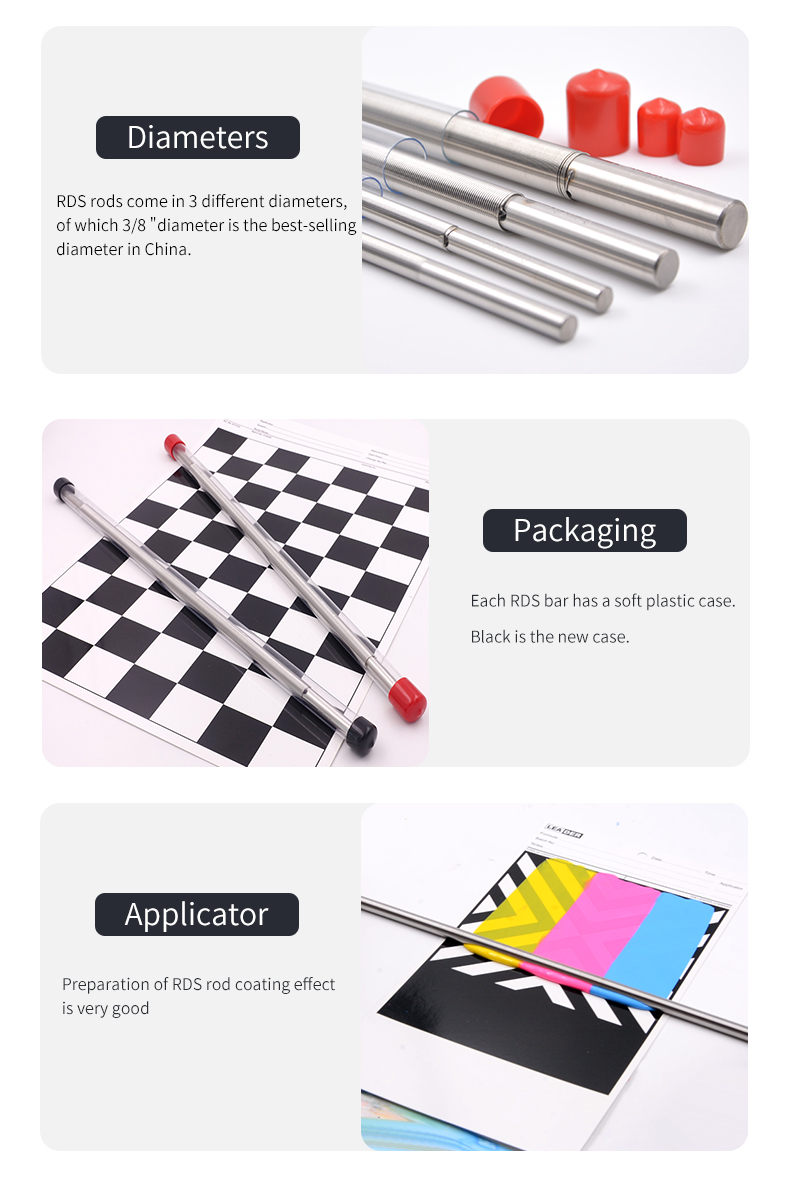

RDS coating Rods Figure 9



RDS coating Rods Figure 10



FAQ
QIs there a 28 gauge rod? Film Film thickness is 28μm.
A Hello, RDS12 #film Film thickness is 27.4 μm, close to 28 μm, can be used.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QDoes this extruded wire rod comply with ASTMD823 standard?
A This extruded wire rod is suitable for ASTMD823. Please consult customer service for detailed application definition.
QOur company is a solar backplane, the laboratory needs to use a scraper, want to consult, want to achieve the film thickness in our mind, how to choose the rod number, no thickness of dry film can not refer to ah, before using the rds6 scraper, coated with a thickness of dry film is 4 microns, if I want to reach 6 to 8 microns, can you suggest?
A It can be roughly calculated according to dry film = wet film × solid parts. The wet film of RDS No. 6 rod is 13.7 μm, and the solid content is about 29% by calculation. If you want to make 6 μm and 8 μm dry films, you need to scrape the wet film 20.5 microns and 27.4 microns, which corresponds to RDS rod, which can be close to RDS 9 #and RDS 12. Thank you for your consultation.
