RDS 22 #1/4 "Coating Metering rod film thickness 50.3μm rod diameter 6.35mm

SE
Formed molding technology, rod diameter of 6.35mm, can film 50.3 μm, with continuous wire, easy to clean and so on.
$155.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 22# 1/4“ Applicator rod 1/4 "SPEC

RDS 22# 1/4“ Applicator rod 1/4 "Details

RDS 22# 1/4“ Applicator rod 1/4 "Packing list

SKU
NB004549
Production process
formed
WFT
50.3μm
diameter
6.35mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
22# 1/4“
Applicator rod 1/4 "
Formed molding technology, rod diameter of 6.35mm, can film 50.3 μm, with continuous wire, easy to clean and so on.

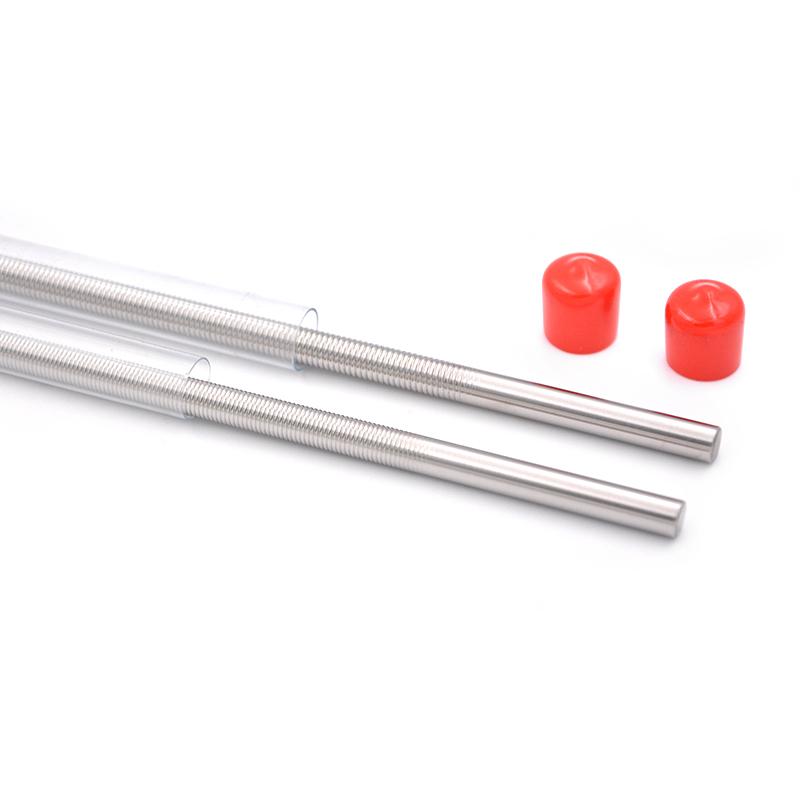

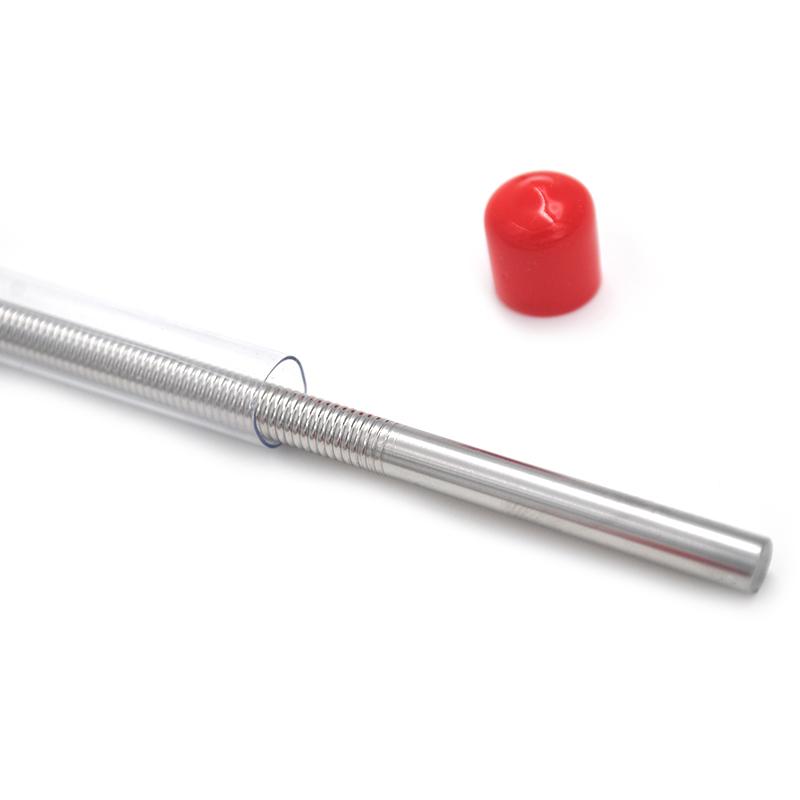

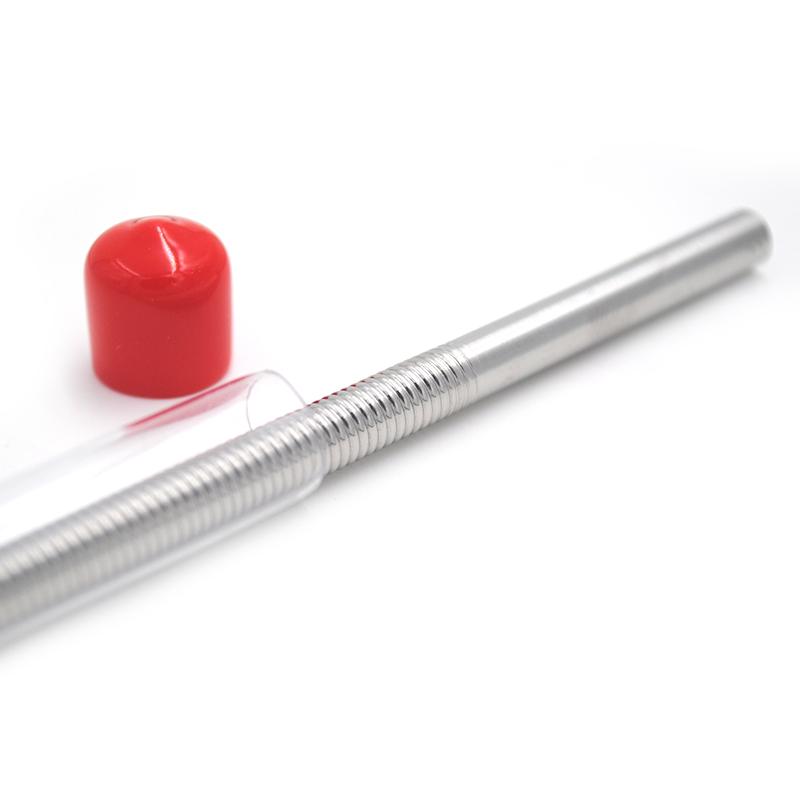

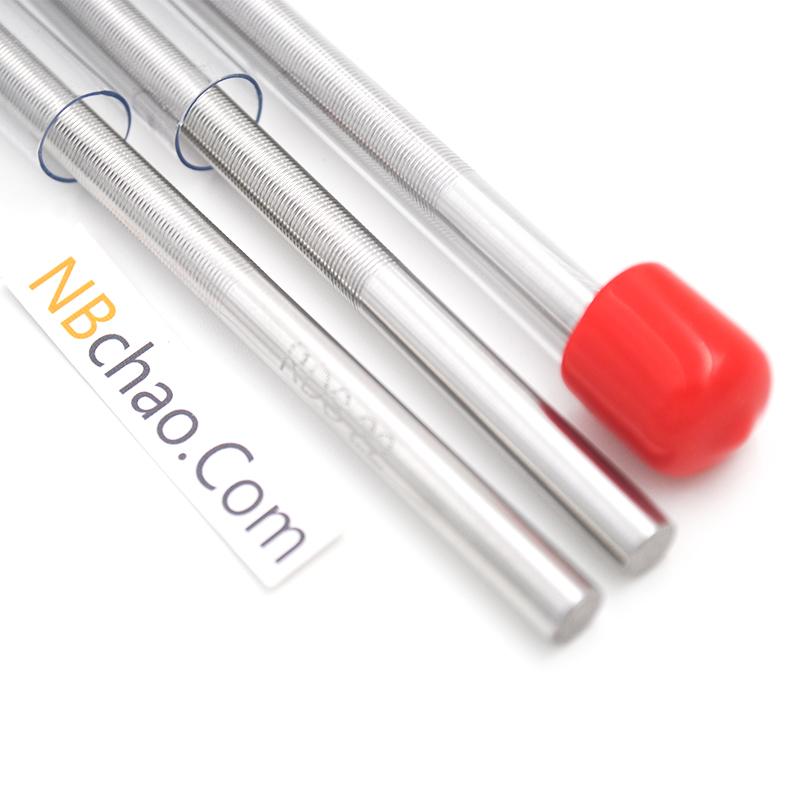

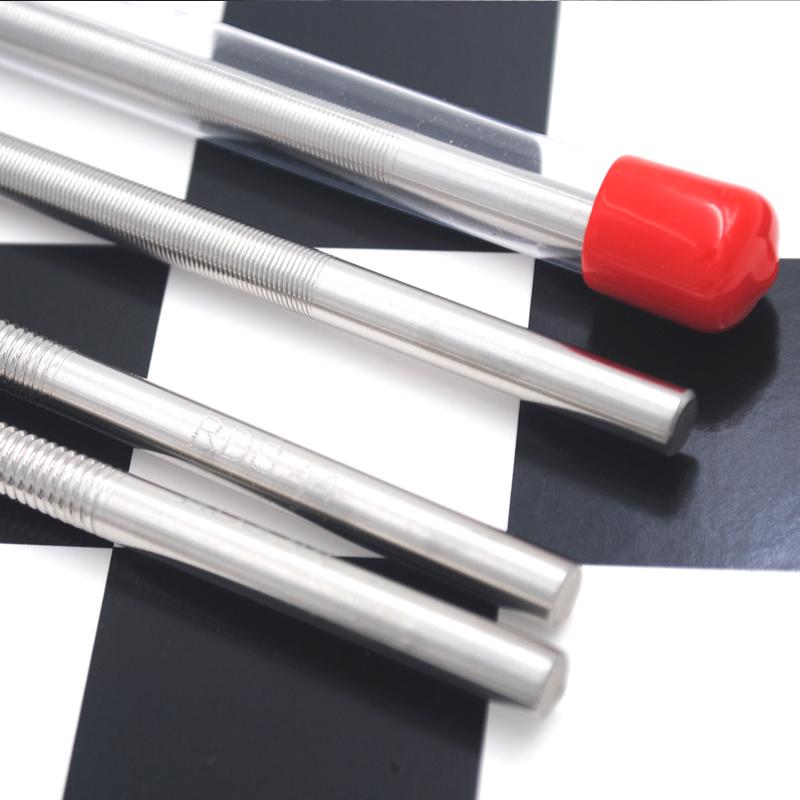

RDS 22 #1/4 "Coating Metering rod film thickness 50.3μm rod diameter 6.35mm Picture

Product description

The RDS wire rod coater enjoys a high reputation in the coating rod industry. Its wire-wound wire rod coater inherits the principle of the traditional Meyer rod, and is recognized for its unique 0.1 micron high precision and high quality. It is favored by most users in the industry, and the formed coating rod is processed by cold extrusion process, without winding steel wire, and it solves the trouble of cleaning and easy clogging of impurities for users. Both have their own advantages. According to users free choice of usage habits. Among them, the RDS#22 wire Bar Coater can prepare a wet film thickness of 50.3 microns.


RDS coating Rods Figure 1



RDS coating Rods Figure 2



RDS coating Rods Figure 3

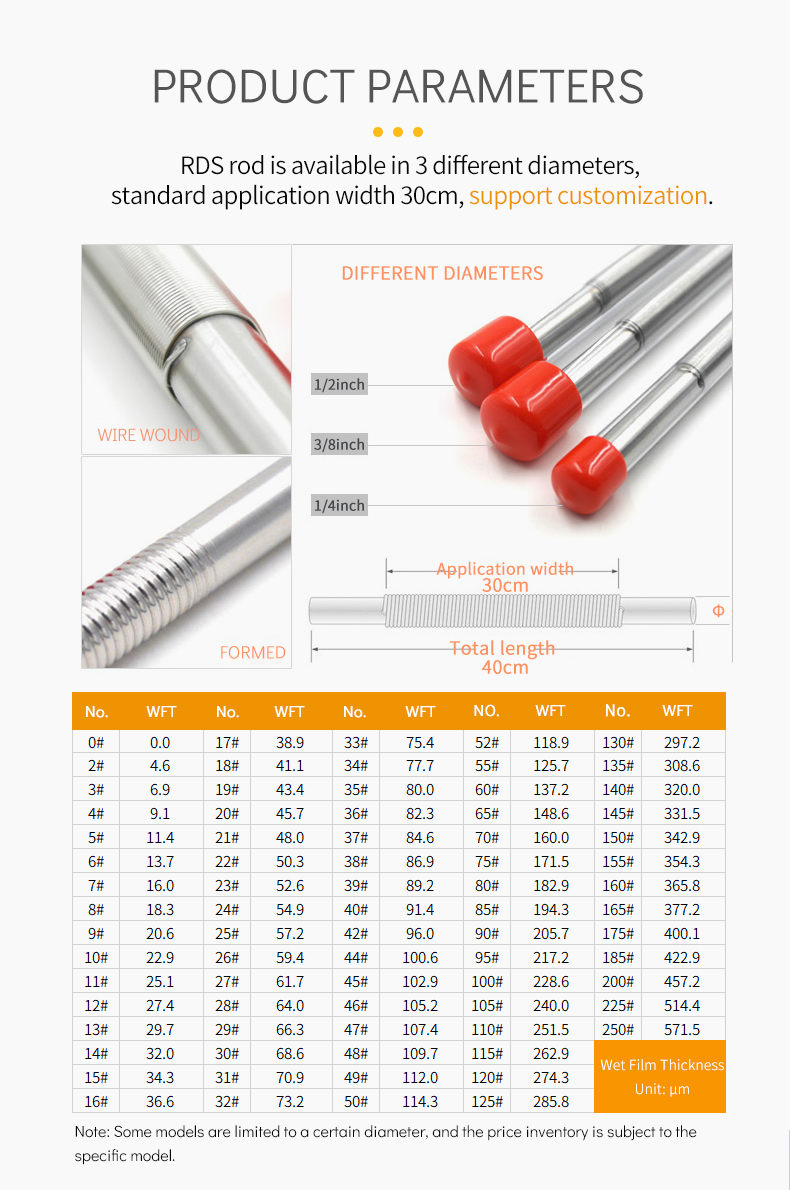

RDS coating Rods Figure 4



RDS coating Rods Figure 5



RDS coating Rods Figure 6



RDS coating Rods Figure 7

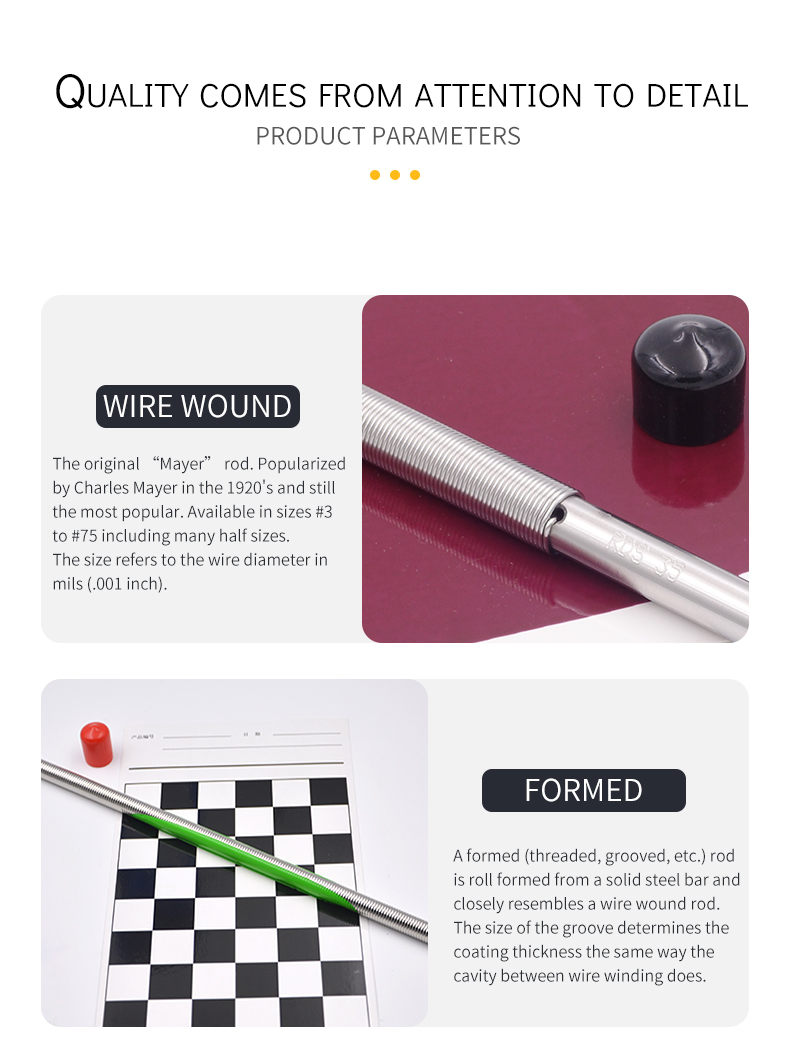

RDS coating Rods Figure 8



RDS coating Rods Figure 9



RDS coating Rods Figure 10



FAQ
QIs this kind of wire rod used for the preparation of hot melt adhesive backing layer?
A Yes, this model can prepare wet film 50um, which can be scraped by hand or matched with motorized film on the film machine.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QI want to do a test about the GB/T13452.3 standard. Is this extruded wire rod okay?
A Sure
