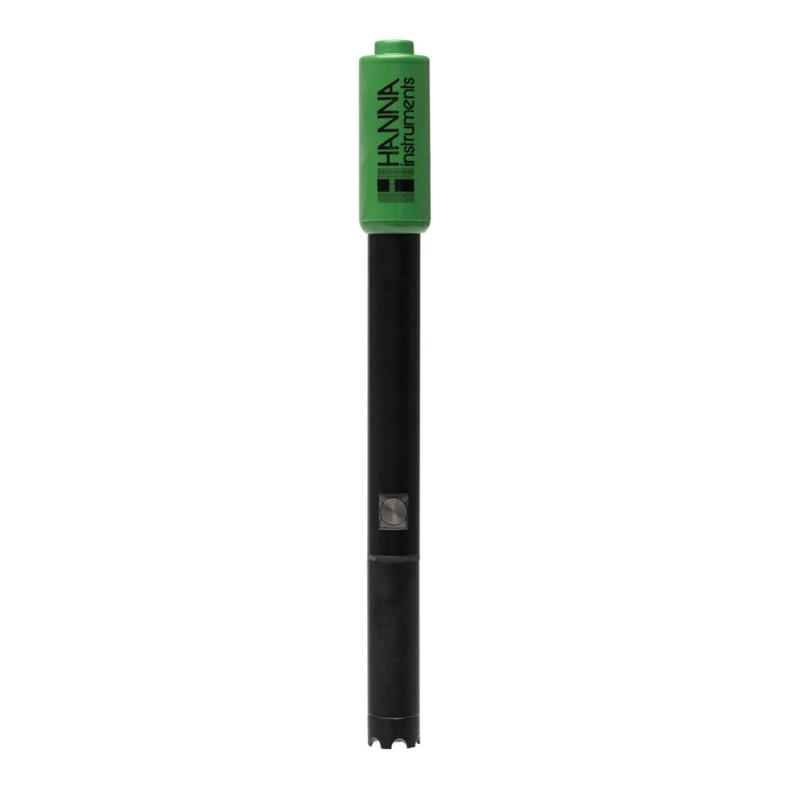

HANNA HI764080 Built-in temperature sensor Digital dissolved Oxygen electrode

HI764080

Built-in temperature sensor Digital dissolved Oxygen electrode

Measurement range 0 to 300% oxygen saturation, Operating temperature range 0 to 50 ℃, integrated temperature sensor and easily replaceable PTFE membrane cover, the ability to transfer information allows hot swapping of the probe without recalibrating.

Introduction

HI764080 is a digital dissolved oxygen electrode with built-in temperature sensor. This ultra-thin Clark-type polarographic electrode is designed to measure dissolved oxygen in aqueous solutions and contains a built-in microchip that stores sensor type, serial number and calibration information. The sensor features a platinum cathode with silver/silver chloride anode, integrated temperature sensor and easily replaceable PTFE membrane cap. HI 764080 is designed for use with Hanna's edge pH/EC/DO meters.

Features

1. Built-in microchip stores sensor type, serial number and calibration information including date, time and calibration points. This information is automatically retrieved by Edge® once the electrode is inserted. The ability to transmit information allows for hot swapping of probes without the need for recalibration. All DO measurements are performed within the electrode and transmitted digitally to the meter.

2. Ultra-thin body, the ultra-thin 12mm design allows convenient measurement in narrow containers, such as test tubes and wine bottles.

3. Replaceable Membrane, Edged DO PTFE membrane features a screw-on cap for easy replacement and faster maintenance.

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
