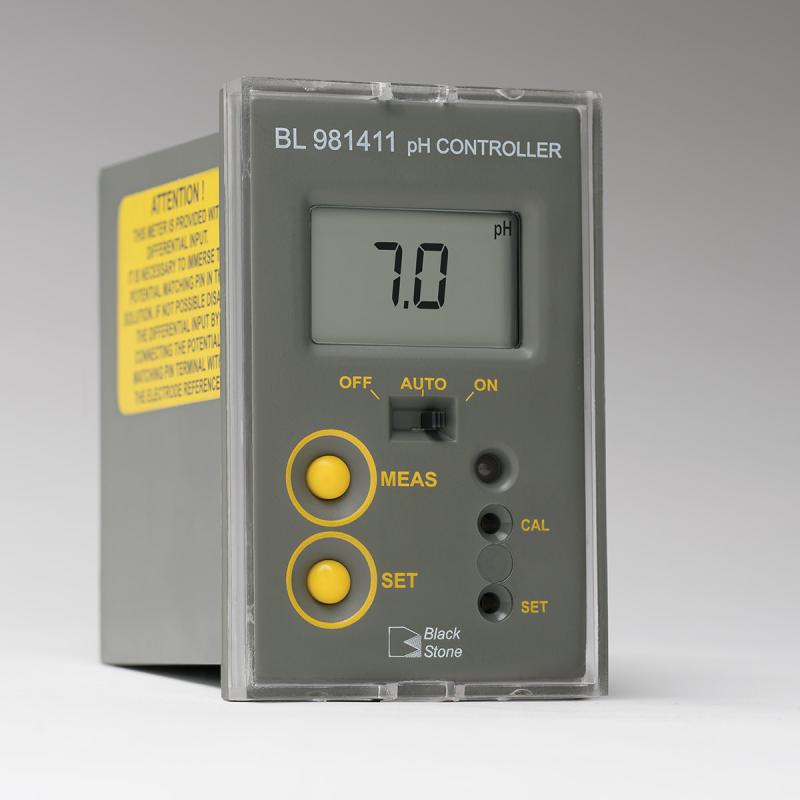

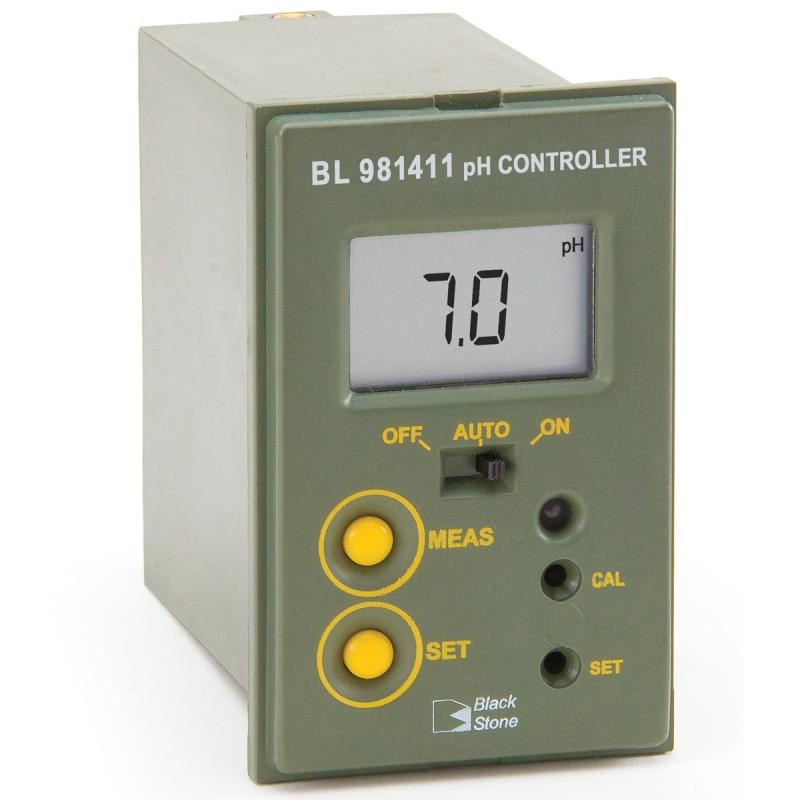

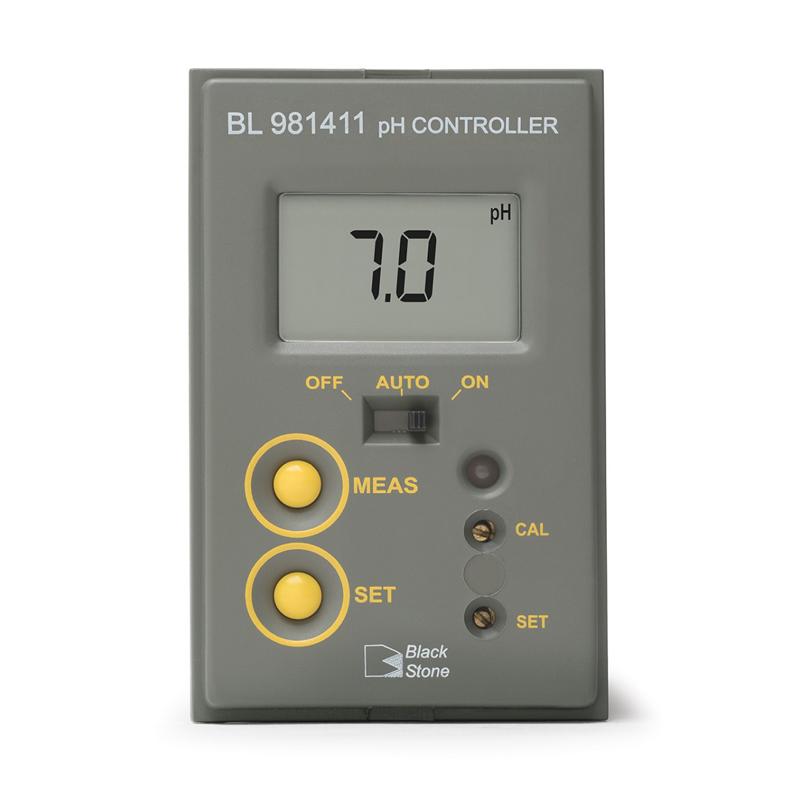

HANNA BL981411 pH meter for acidity pH measurement

BL981411

Inlaid acidity pH measurement controller

Measurement range 0.0 to 14.0 pH, resolution 0.1pH, accuracy +/- 0.2pH, adjustable dose relay, flame retardant material, acid or alkali dosing mode according to needs to meet different needs of users.

Introduction

The BL981411 inlaid mini acidity controller has a compact design, saves space and is easy to operate. Unique design, suitable for pH electrodes with BNC interface. The large LCD screen displays clearer readings and can also display operating instructions. Use special tools to easily calibrate between 0.0 to 14.0 pH range through the CAL adjustment hole on the panel. Recommended calibration points: pH4.01, 7.01, 10.01 to ensure accurate and reliable measurement data.

The custom-designed dosing controller is simple and easy to operate through the front panel conversion button. You can freely choose manual or automatic dosing. Through manual operation, the user can turn off or open the dosing controller set point within the pH range of 0.0 to 14.0. Choose acid or alkali dosing mode according to needs to meet the different needs of users. When the actual measured value exceeds the user's set point, the relay is activated and the dosing controller is turned on; when the actual measured value is lower than the user's set point, the relay is activated and the dosing controller is turned off; in order to avoid excessive dosing , causing the dosing controller to be activated for a long time, and the delay time control system ensures the reliability of the instrument and measurement data.

All in all, the BL981411 is a compact pH process controller designed for applications where space or cost is important. The device contains a high-impedance pH input and can be used with any pH electrode with a standard BNC connector. Its adjustable dosing relay can be configured to dose above or below a user-programmable pH set point. Users can choose from automatic or manual dosing modes for easier maintenance and troubleshooting.

Features

• Adjustable Dosing Relay, BL981411 features a dosing relay that can be configured to dose above or below a user-programmable pH set point.

• Selective Overdose Protection, the mini-controller can be programmed to deactivate a valve, pump or connected device if activation continues for a selected time; adjustable between 5 and 30 minutes.

• Selectable control overrides, normal "automatic" operation may be overridden at the flip of a switch, turning connected devices "off" from operation or always "on"

• Fuses protect the dosing contacts and the mini controller is protected to withstand a 2A load from connected pumps or equipment.

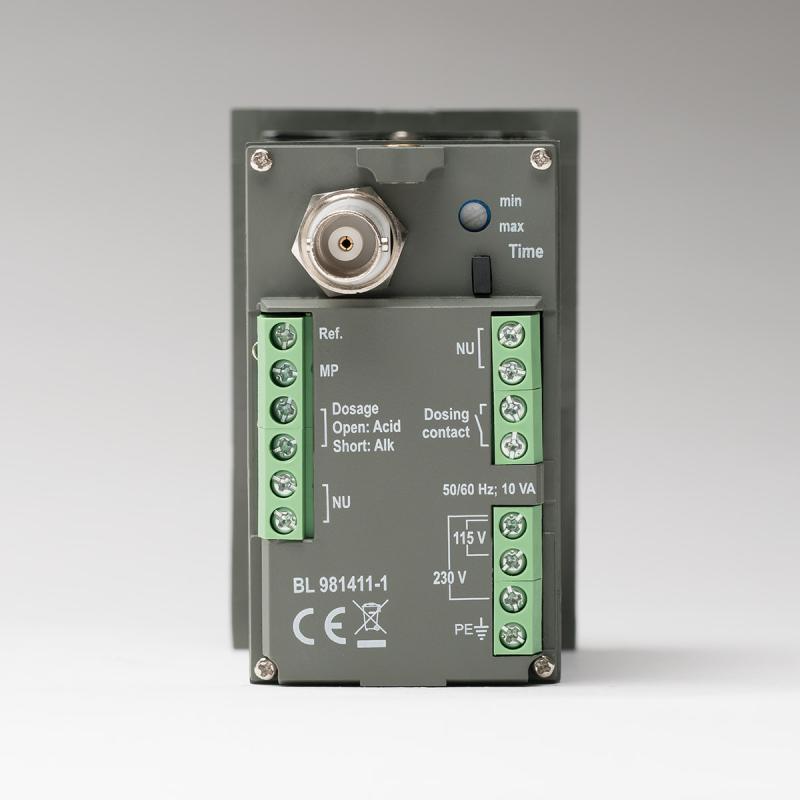

• Peripheral connections are easy, with quick-connect terminal blocks for easy connection to power, communications, dose controls or sensors.

• Matched Pin Connections The included matched pin option helps protect the sensor from ground loops that could cause erratic readings or system damage.

• Exquisite design, easy to install and operate.

• Flame retardant material, water splash protection cover.

• Adjustable timeout dosing protection function.

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
