RDS 34 #1/4 "roller painting rod film thickness 77.7μm rod diameter 6.35mm

SE
Using formed molding technology, rod diameter is 6.35mm, can film 77.7μm, with continuous wire, easy to clean and other characteristics, Spreader width 300mm.
$155.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 34# 1/4“ Applicator rod 1/4 "SPEC

RDS 34# 1/4“ Applicator rod 1/4 "Details

RDS 34# 1/4“ Applicator rod 1/4 "Packing list

SKU
NB004568
Production process
formed
WFT
77.7μm
diameter
6.35mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
34# 1/4“
Applicator rod 1/4 "
Using formed molding technology, rod diameter is 6.35mm, can film 77.7μm, with continuous wire, easy to clean and other characteristics, Spreader width 300mm.

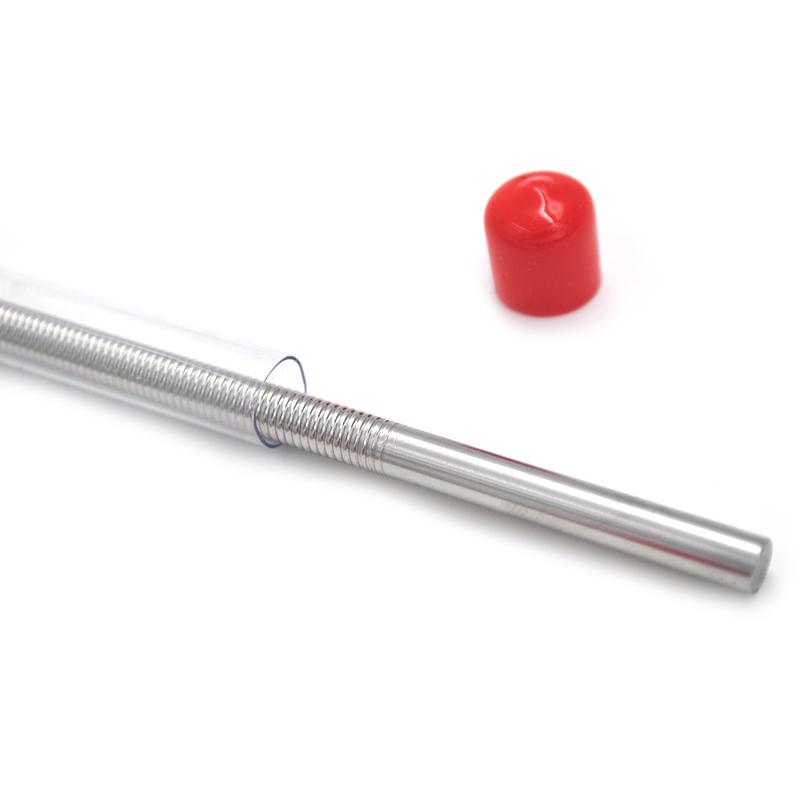

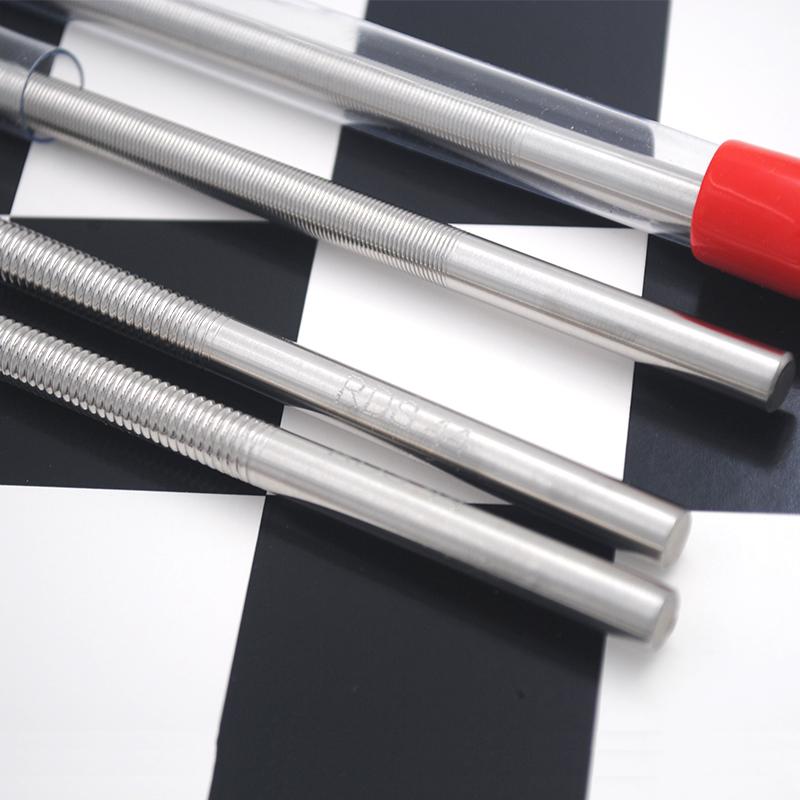

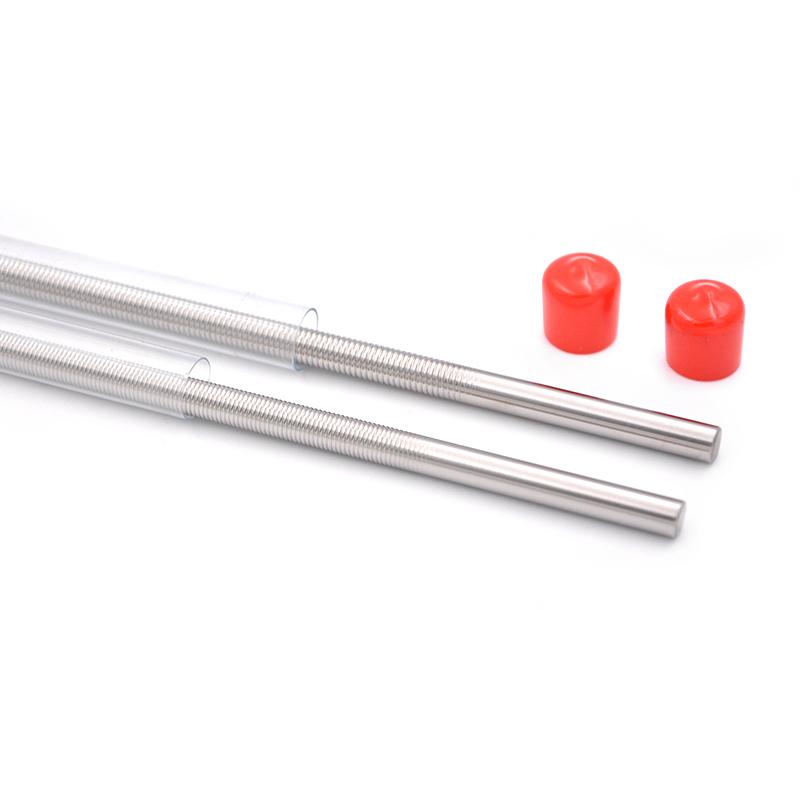

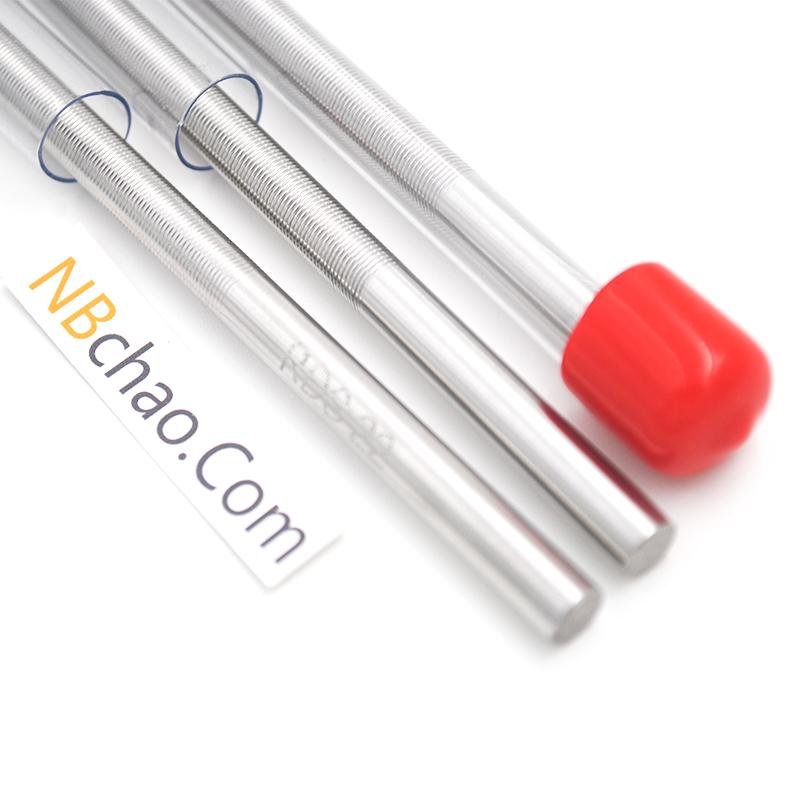

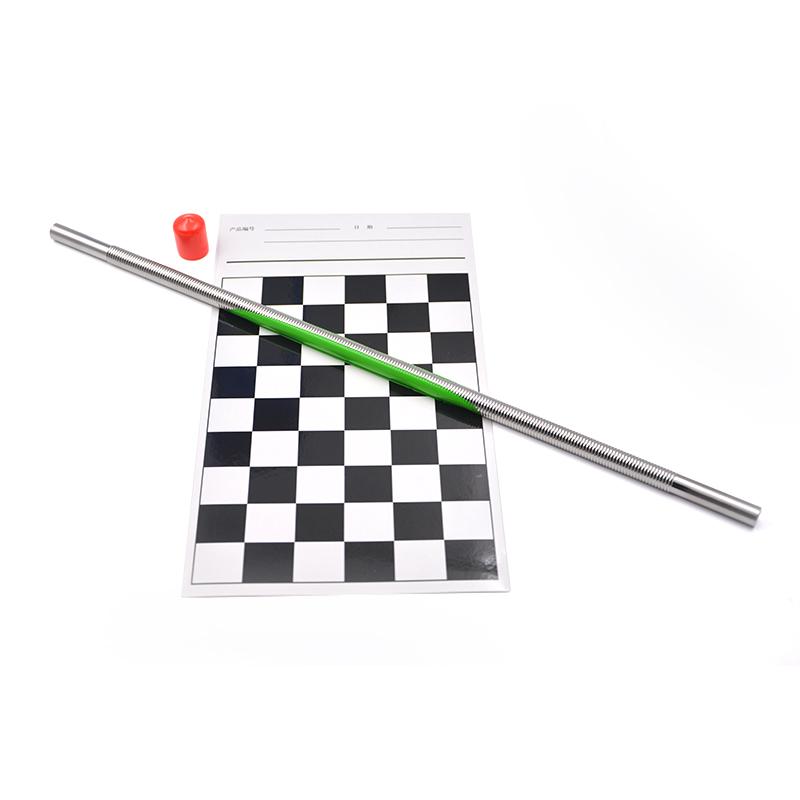

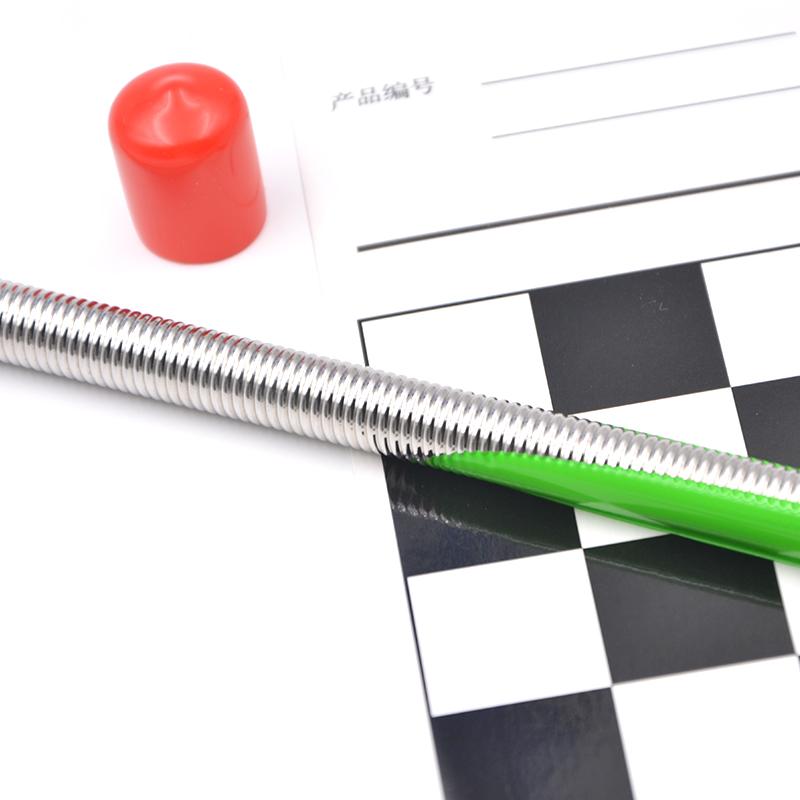

RDS 34 #1/4 "roller painting rod film thickness 77.7μm rod diameter 6.35mm Picture

Product description

RDS#34 wire rod coater is used to prepare wet film with a thickness of 77.7μm. The fine technology of RDS wire rod coater makes the coating film prepared by the RDS show good flatness and reproducibility to users, and the coating film is very uniform , the film precision reaches 0.1 micron. RDS wire Bar Coater provides more than 80 models to choose from besides the RDS#34 rod, corresponding to the preparation of different wet film thicknesses, and is divided into wire winding type and extrusion type to suit different users Habit. Customized wire rod services can also be provided for users in special industries.


RDS coating Rods Figure 1



RDS coating Rods Figure 2



RDS coating Rods Figure 3

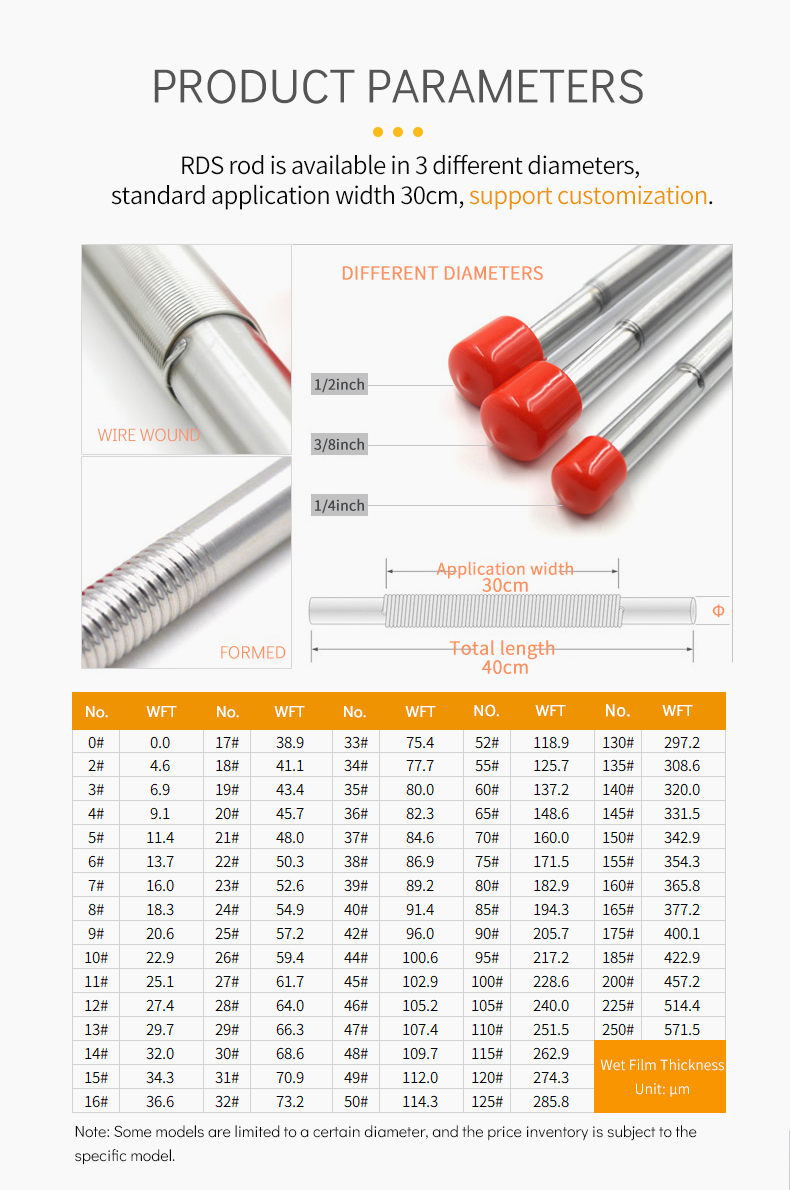

RDS coating Rods Figure 4



RDS coating Rods Figure 5

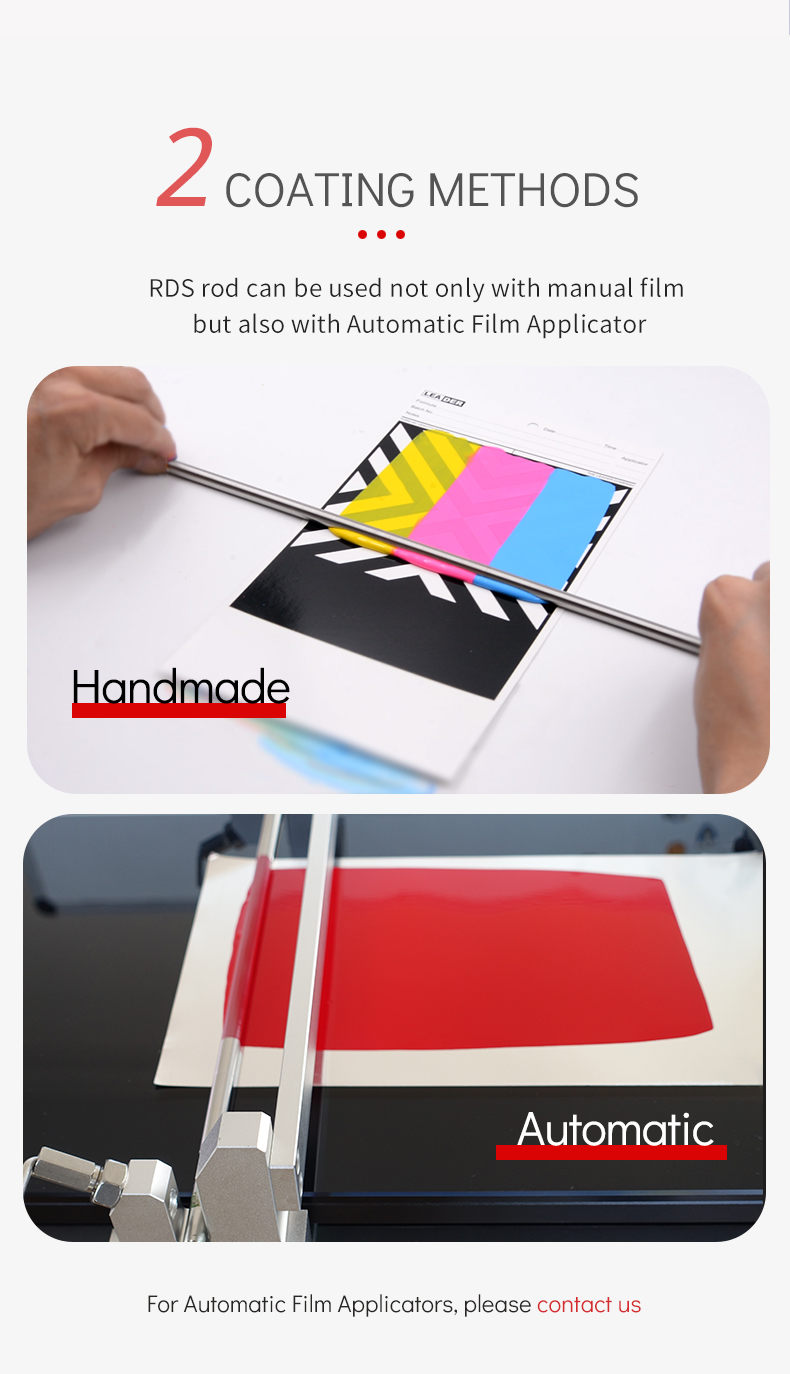

RDS coating Rods Figure 6



RDS coating Rods Figure 7

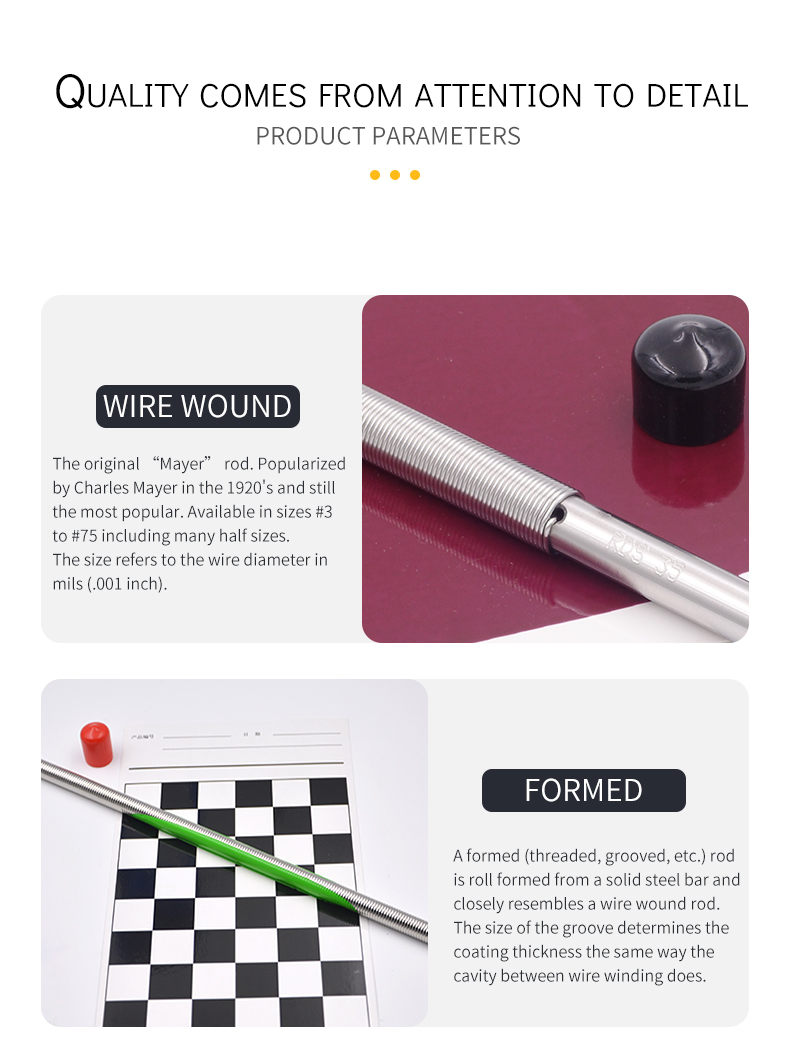

RDS coating Rods Figure 8



RDS coating Rods Figure 9



RDS coating Rods Figure 10



FAQ
QCan the forming rod and winding rod be replaced?
A Yes, except for the different processes, the wet film thickness is the same, and there is no difference in the preparation of laboratory hand scraping.
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QCan this extrusion rod be applied to GB/T13452.3?
A OK
